8
5
6
9
6
95

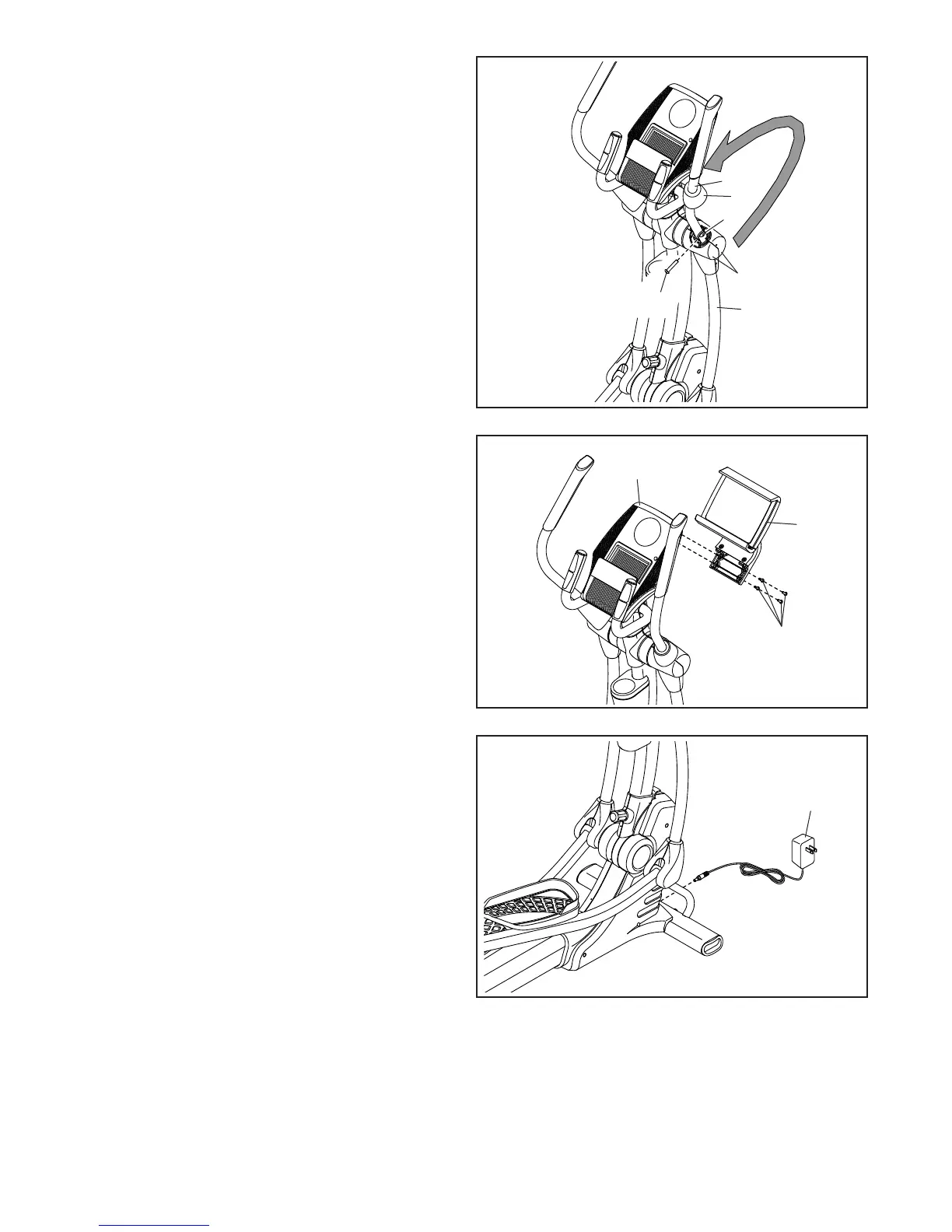

5. Rotate the Right Upper Body Arm (9) to the
upright position. Then, attach the Right Upper
Body Arm to the Right Upper Body Leg (6) with
an M10 x 50mm Screw (95).
IMPORTANT: Tighten the indicated
M10 x 45mm Screw (78).
Press the Upper Body Arm Cover (20) downward
and turn it so that it is flush with the Right Leg
Front and Rear Covers (11, 15).
Repeat this step on the other side of the
elliptical.
20
78
11, 15
109
110
4
6. Attach the Tablet Holder (109) to the Console (4)
with four Tablet Holder Screws (110); start all
the Tablet Holder Screws, and then tighten
them.
7
104
7. Make sure that all parts are properly
tightened. Extra parts may be included. Place a
mat beneath the elliptical to protect the floor.
Plug the Power Adapter (104) into the receptacle
on the frame of the elliptical.
Then, plug the Power Adapter (104) into an
outlet (see HOW TO PLUG IN THE POWER
ADAPTER on page 9).
To Next Page
