10

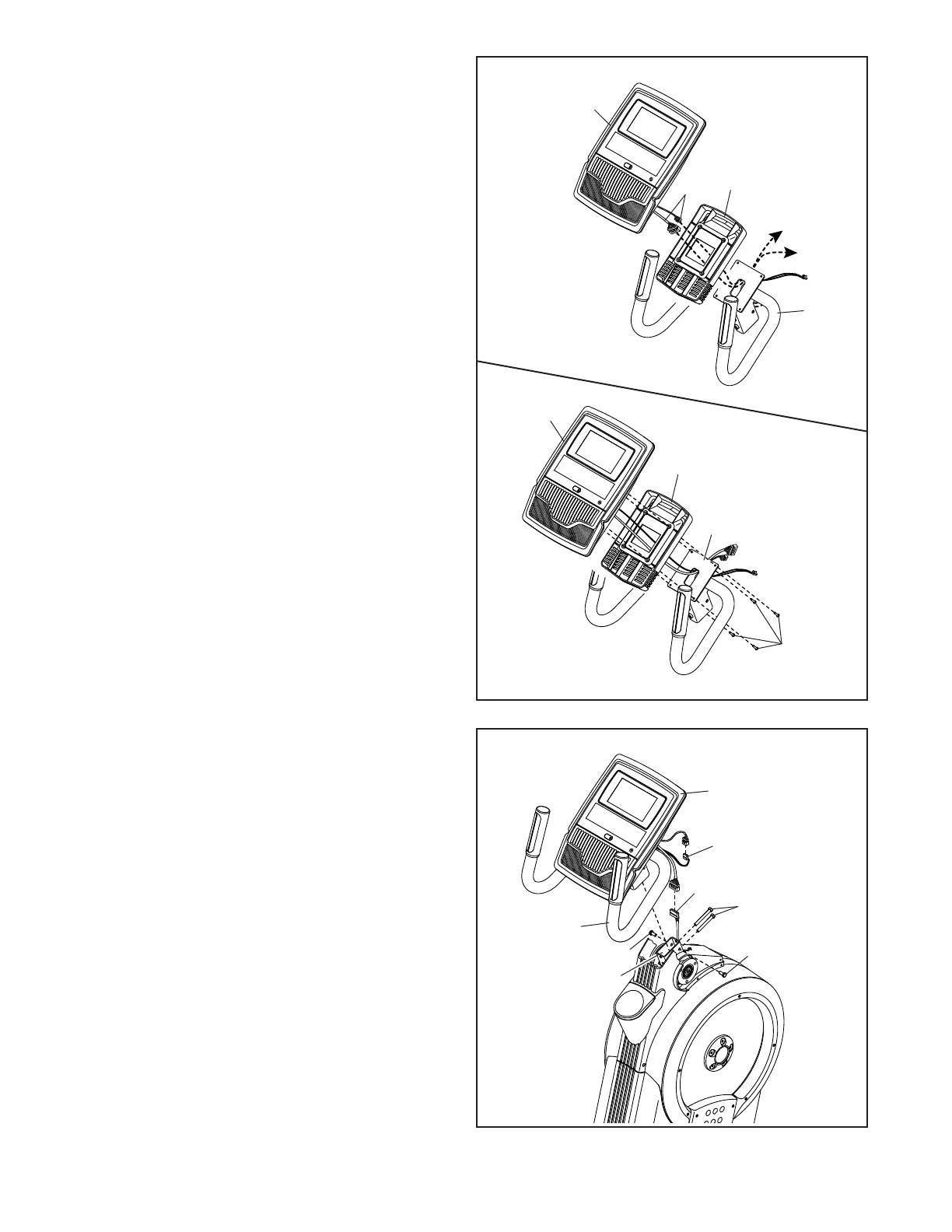

6. See the upper drawing. With the help of a
second person, orient the Console (5), the
Console Cover (7), and the Console Bracket
(4) as shown. Then, route the wires (A) on the
Console through the Console Cover and the
Console Bracket.
See the lower drawing. Tip: Avoid pinching
the wires. Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
6
5
5
7
7
4
4
107
A
Avoid pinching
the wires
4
96
96
109
115
117
Avoid
pinching
the wires
7
7. While a second person holds the Console
Bracket (4) near the Frame (1), connect the
wires on the Console (5) to the Main Wire (115)
and to the Pulse Wire (117).
Tip: Avoid pinching the wires. Attach the
Console Bracket (4) to the Frame (1) with two
M8 x 86mm Screws (109) and two M8 x 15mm
Screws (96); start all the Screws, and then
tighten them.
1
5
To Next Page
