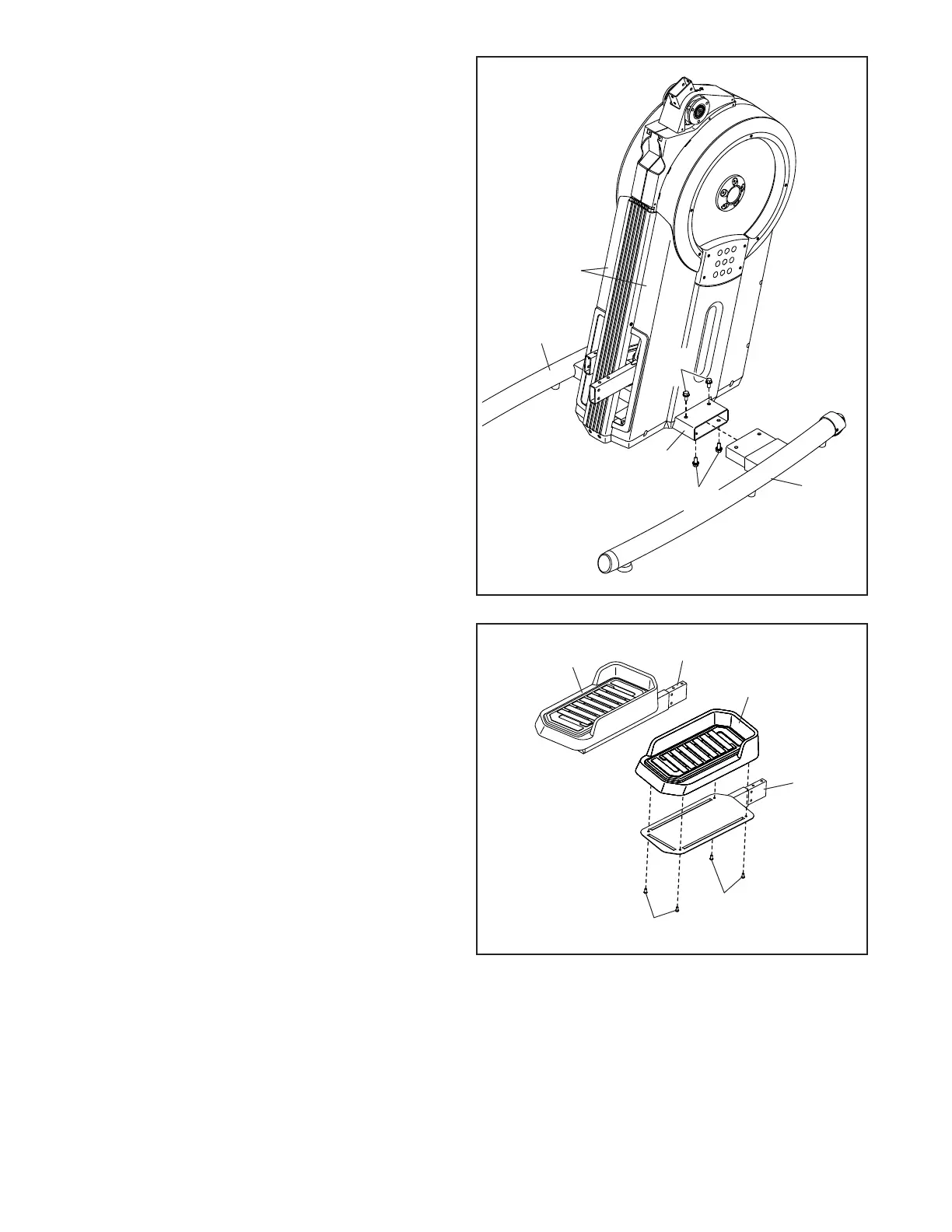

3. Identify the Right and Left Pedal Bases (2, 3)
and the Right and Left Pedals (22, 23), and
orient them as shown.
Attach the Right Pedal (22) to the Right Pedal
Base (2) with four M6 x 12mm Screws (108);
start all the Screws, and then tighten them.
Attach the Left Pedal (23) to the Left Pedal
Base (3) in the same way.
3
2
23
22
2
3
108
108
1
8
9
110
50, 51
2. Identify the Right and Left Stabilizers (8, 9) and
orient them as shown.
Have a second person hold the Frame (1) and
tip it to the left. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Right Stabilizer (8) to the Frame
(1) with four M10 x 20mm Screws (110); start
all the Screws, and then tighten them.
Note: Disregard the two unthreaded holes in the
underside of the Frame.
IMPORTANT: Make sure to tighten the
M10 x 20mm Screws (110) firmly and
completely.
Have the second person lower the Frame (1)
to the floor. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Left Stabilizer (9) in the same way.
110
To Next Page
