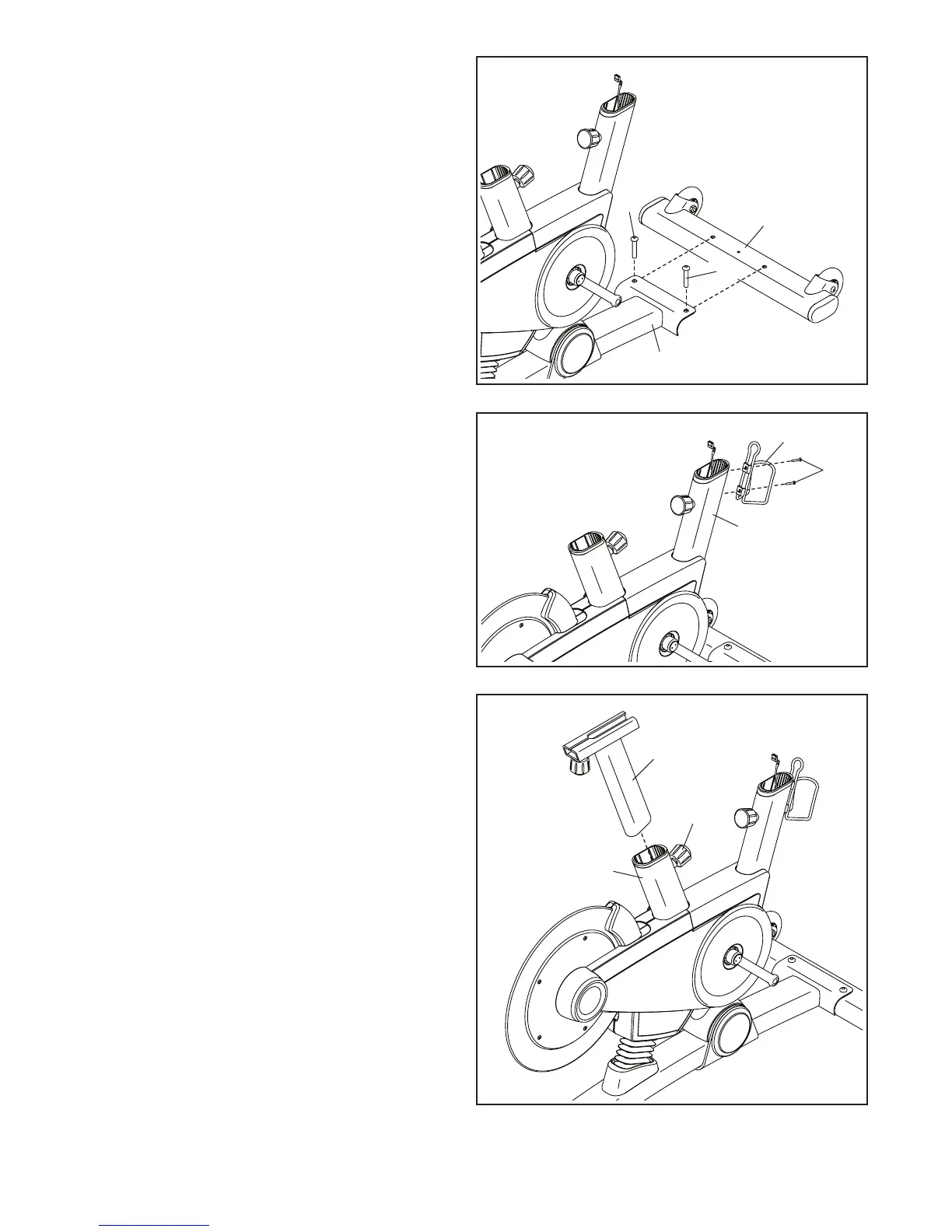

3. If there are shipping screws in the Front
Stabilizer (22), remove and discard them.
Attach the Front Stabilizer (22) to the Base (1)
with two M10 x 58mm Screws (74).
74
22
1
4. Attach the Water Bottle Holder (8) to the Frame
(2) with two #8 x 10mm Screws (110); start all
the Screws, and then tighten them.
4
5
3
2
47
5. Locate the Post Knob (47) near the rear of the
Frame (2). Loosen the Post Knob, and then pull
it outward.
Next, insert the Seat Post (3) into the Frame (2),
and release the Post Knob (47) into one of the
adjustment holes in the Seat Post. Make sure
that the Post Knob is in an adjustment hole.
Then, tighten the Post Knob.
