2. Make sure that the power cord is unplugged.
Locate the Upright Wire (90) attached to the
Base (96) with a tie. Remove the tie.
Next, identify the Right Upright (92). Have a
second person hold the Right Upright near the
Base (96).

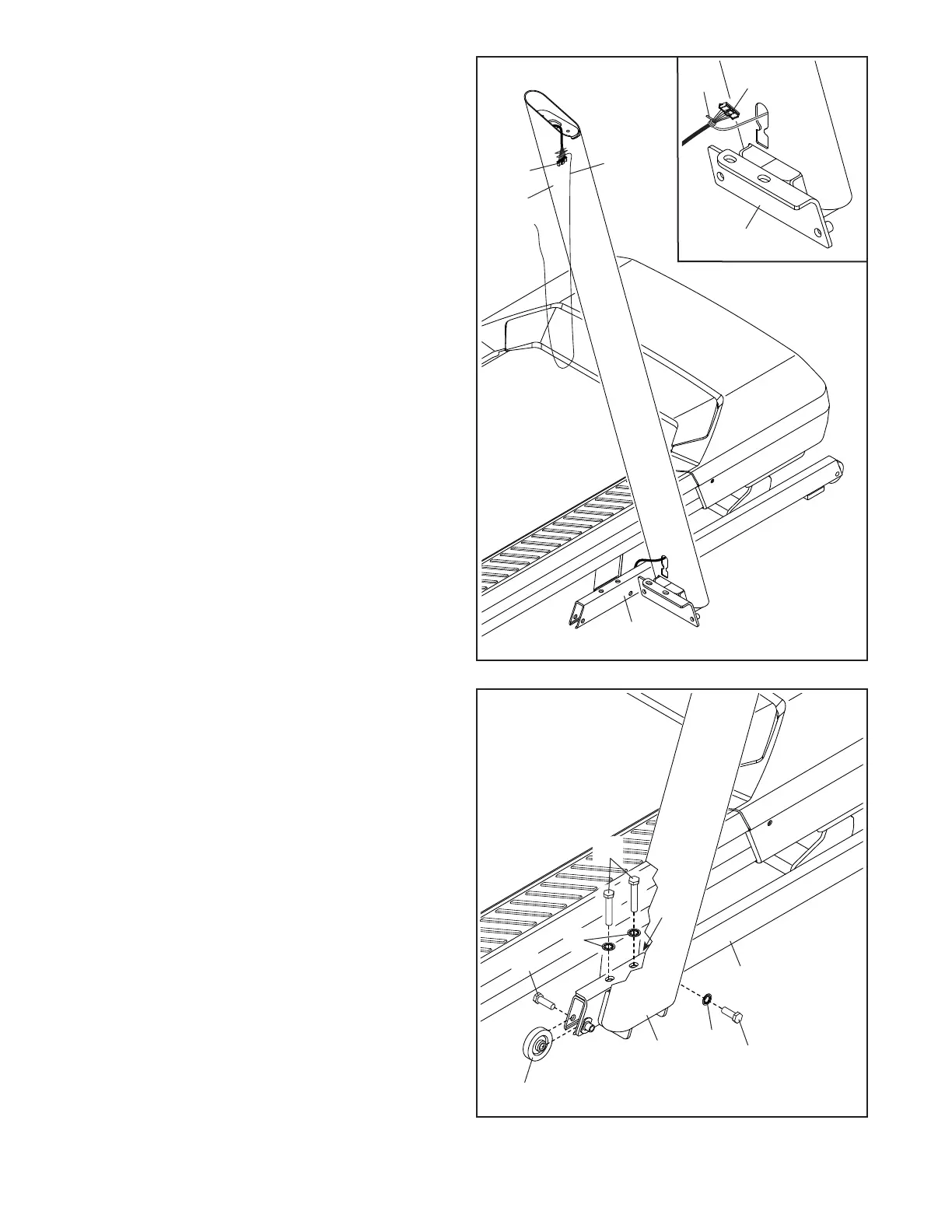

See the inset drawing. Tie the wire tie (A) in the
Right Upright (92) securely around the end of the
Upright Wire (90). Then, insert the Upright Wire
into the lower end of the Right Upright, and pull
the upper end of the wire tie, until the Upright
Wire is routed through the Right Upright.
96
92
A
3
93
9
90
1
92
3. Hold the Right Upright (92) against the Base
(96). Make sure not to pinch the Upright
Wire (90).
Attach the Right Upright (92) and a Wheel (93)
with two 3/8" x 2 3/8" Screws (3), a 3/8" x 1 1/4"
Screw (1), a 3/8" x 1 3/4" Screw (4), and three
3/8" Star Washers (9) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) and the
other Wheel (not shown) in the same way.
Note: There are no wires on the left side.
96
90
3
4
9
To Next Page
