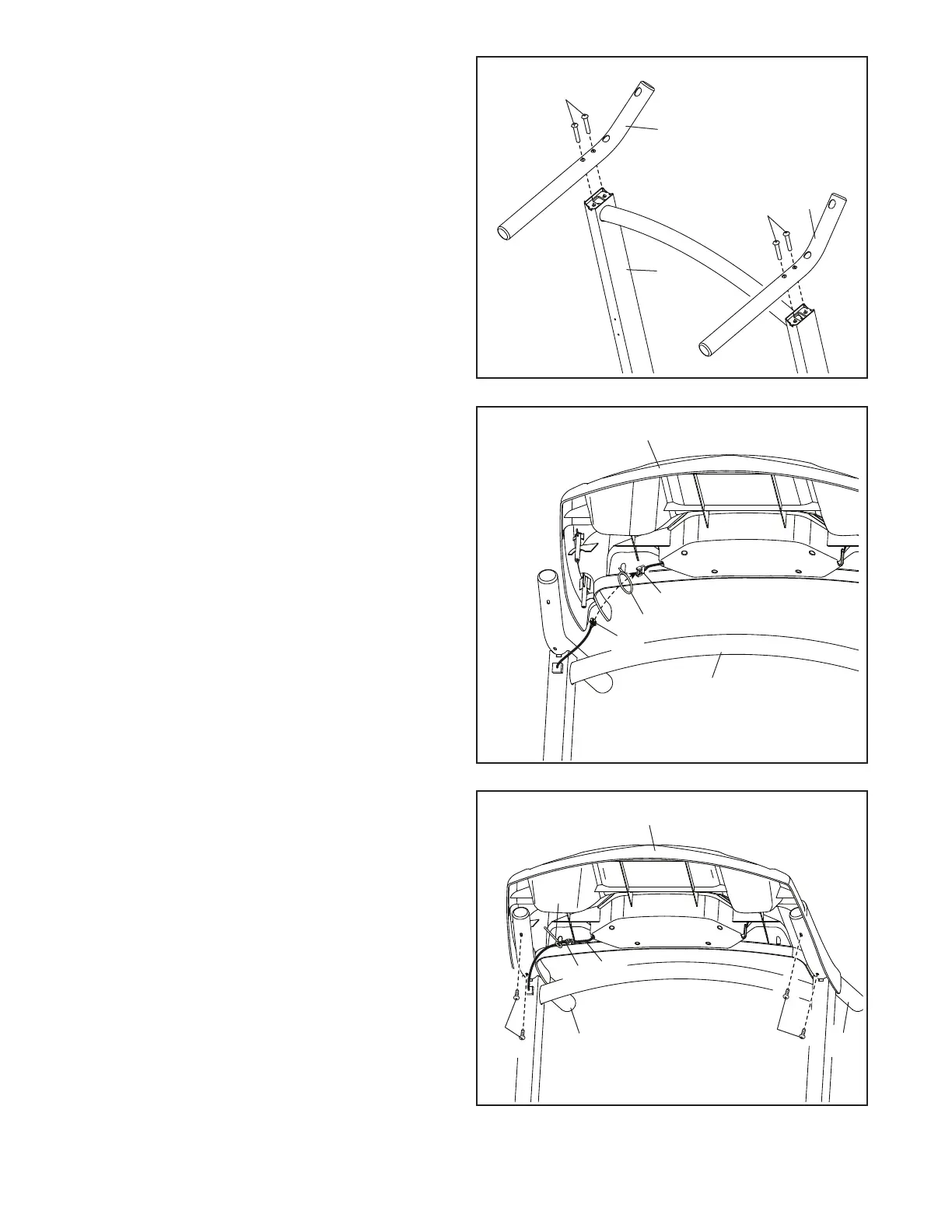

3. Attach the Left and Right Handrails (71, 72) to
the Uprights (76) with four M10 x 45mm Screws
(2); start all four Screws, and then tighten
them.
4. With the help of a second person, hold the con-
sole assembly (A) near the Uprights (76).
Insert the Upright Wire (78) through the looped
tie (B) on the back of the console assembly (A).
Connect the Upright Wire (78) to the con-
sole wire (C). The connectors should slide
together easily and snap into place. If they
do not, turn one connector and try again. IF
YOU DO NOT CONNECT THE CONNECTORS
PROPERLY, THE CONSOLE MAY BECOME
DAMAGED WHEN YOU TURN ON THE
POWER.
3
4
78
A
B
76
2
76
71
72
2
C
5
72
71
3
3
A
5. Attach the console assembly (A) to the Left and
Right Handrails (71, 72) with four M4.2 x 19mm
Screws (3); start all four Screws, and then
tighten them. Be careful not to pinch the
wires.
Next, insert the connectors on the wires (C, 78)
into the console assembly (A). Then, pull the tie
(B) tight around the Upright Wire (78), and cut off
the end of the tie.
B
78
C
