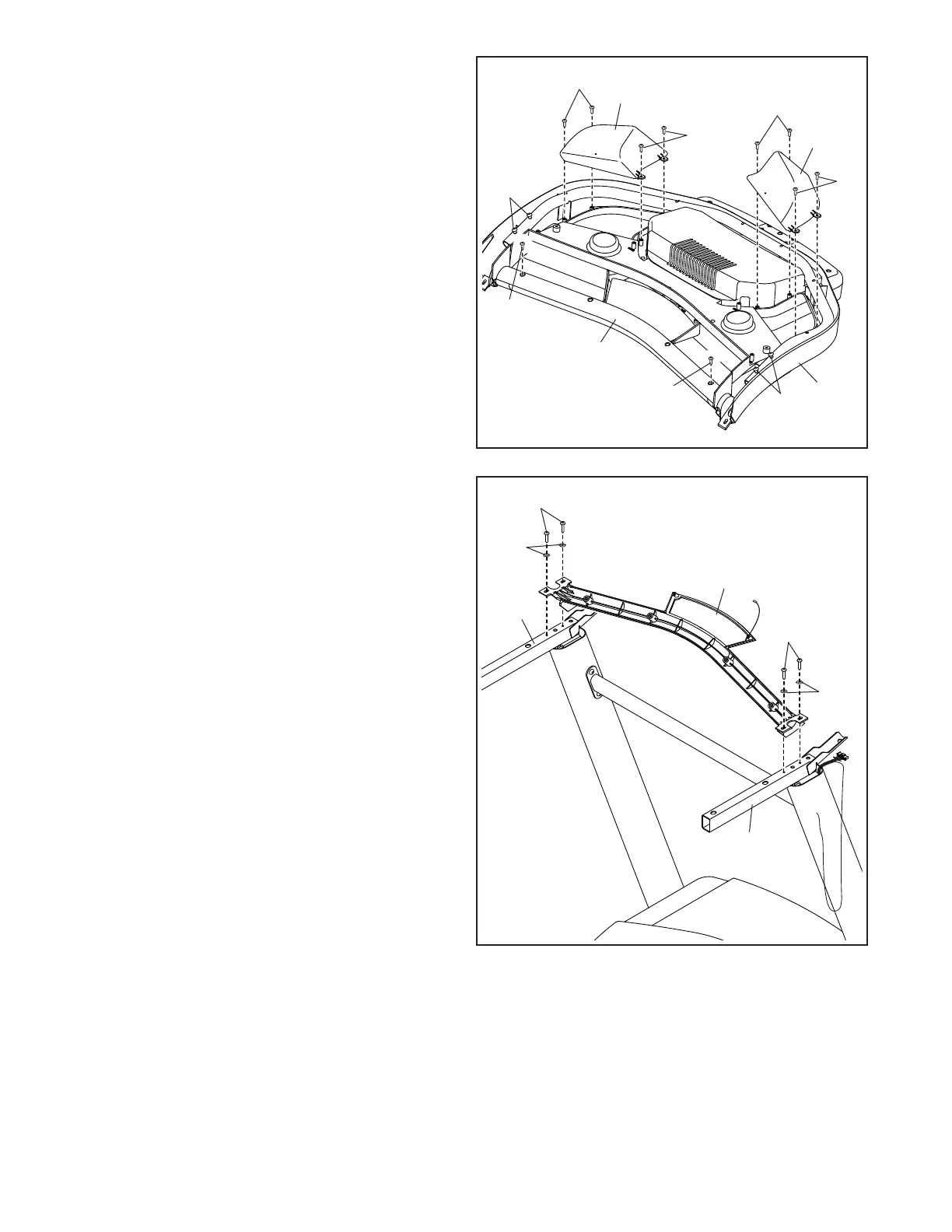

11. IMPORTANT: To avoid damaging the Handrail
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Handrail Crossbar (75) as shown.
Attach the Handrail Crossbar to the Handrails
(72) with four #10 x 3/4" Screws (9) and four #10
Star Washers (8); start all four Screws, and
then tighten them.
9
9
8
8
72
85
86
10
10
75
74
G
G
10
10. Set the Console Base (74) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(G). Then, remove the Handrail Crossbar (75).
Next, identify the Left and Right Trays (85, 86).
Attach the Trays to the Console Base (74) with
eight #8 x 1/2" Screws (10); do not overtighten
the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (13).
10
10
13
13
