13
13
H
J
13
7
13
7
80
72
72

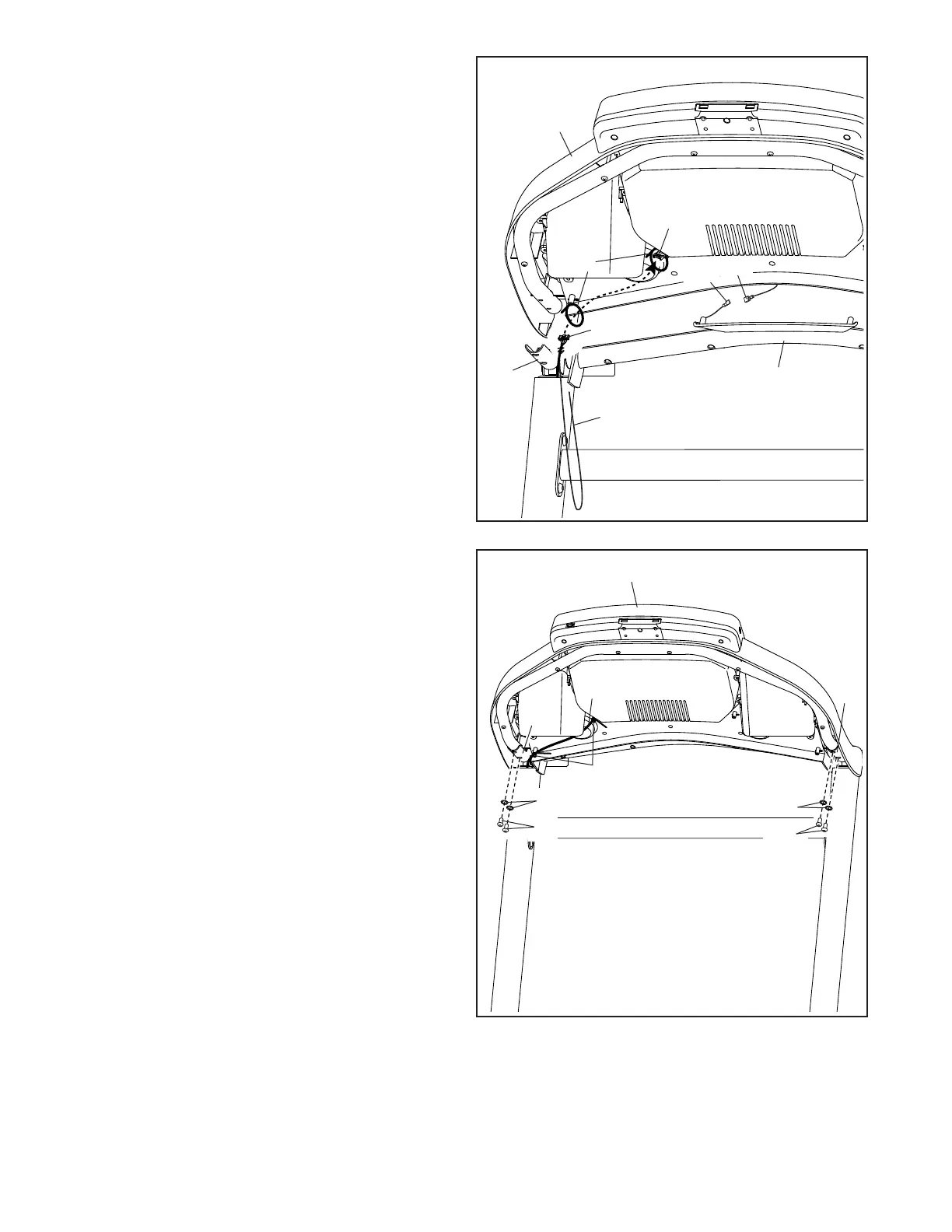

13. Set the console assembly (H) on the Handrails
(72). Do not pinch any wires.
Insert the excess Upright Wire (80) into the con-
sole assembly (H). Next, tighten the two ties (J)
around the Upright Wire, and cut off the ends of
the ties.
Then, attach the console assembly (H) with the
four 5/16" x 3/4" Screws (13) that you removed
in step 10 and four 5/16" Star Washers (7); do
not tighten the Screws yet.
12. With the help of a second person, hold the con-
sole assembly (H) near the Handrails (72).
Connect the ground wire (I) from the console
assembly (H) to the Console Ground Wire (76)
on the Handrail Crossbar (75).
Next, insert the Upright Wire (80) through the
two indicated looped ties (J).
Connect the Upright Wire (80) to the con-
sole wire (K). The connectors should slide
together easily and snap into place with an
audible click. If they do not, turn one con-
nector and try again. Then, remove the wire tie
(A) from the Upright Wire.
12
H
J
K
I
A
80
72
75
76
To Next Page
