Pro-Form PFTL50921-INT.0 User Manual

14

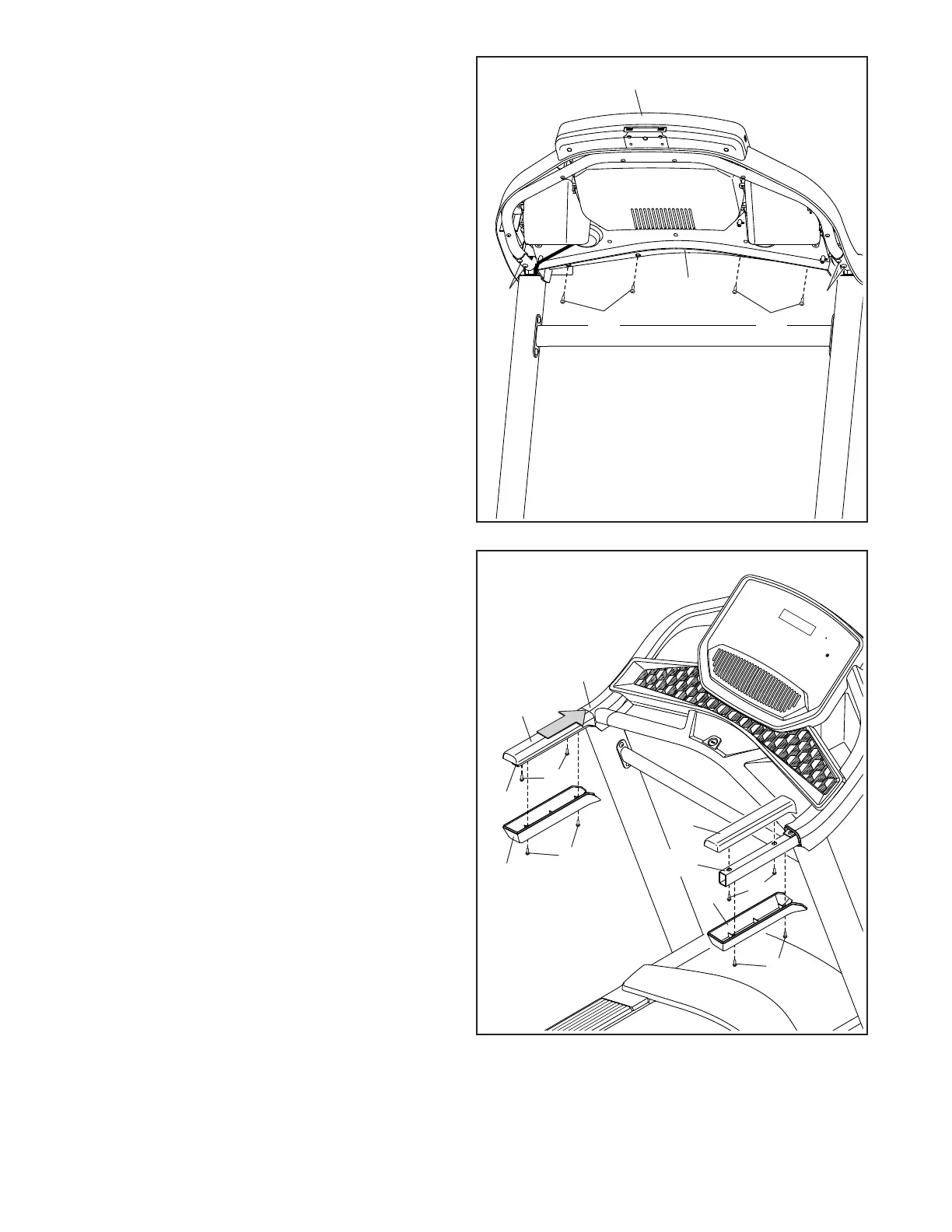

15. Set the Left Handrail Cover (70) on the left
Handrail (72). Start two #8 x 3/4" Screws (11)
into the left Handrail and the Left Handrail Cover.
Next, slide the Left Handrail Cover forward
against the console assembly (H) as shown.
Then, tighten both Screws.
Then, attach the Left Handrail Bottom (14) to the
Handrail (72) with two #8 x 3/4" Screws (11).
Attach the Right Handrail Cover (71) and
the Right Handrail Bottom (12) to the right
Handrail (72) as described above.
11
11
15
72
12
14
72
71
70
H
11
11
14. Attach the Handrail Crossbar (75) to the console
assembly (H) with four #8 x 3/4" Screws (11);
start all four Screws, and then tighten them.
Do not overtighten the Screws.
Firmly tighten the four 5/16" x 3/4"
Screws (13).
14
H
13
75
11
11
13
