16. Tighten all eight indicated Screws (2, 3, 4) from
steps 4 and 5.
2, 3, 4
2, 3, 4
16
17

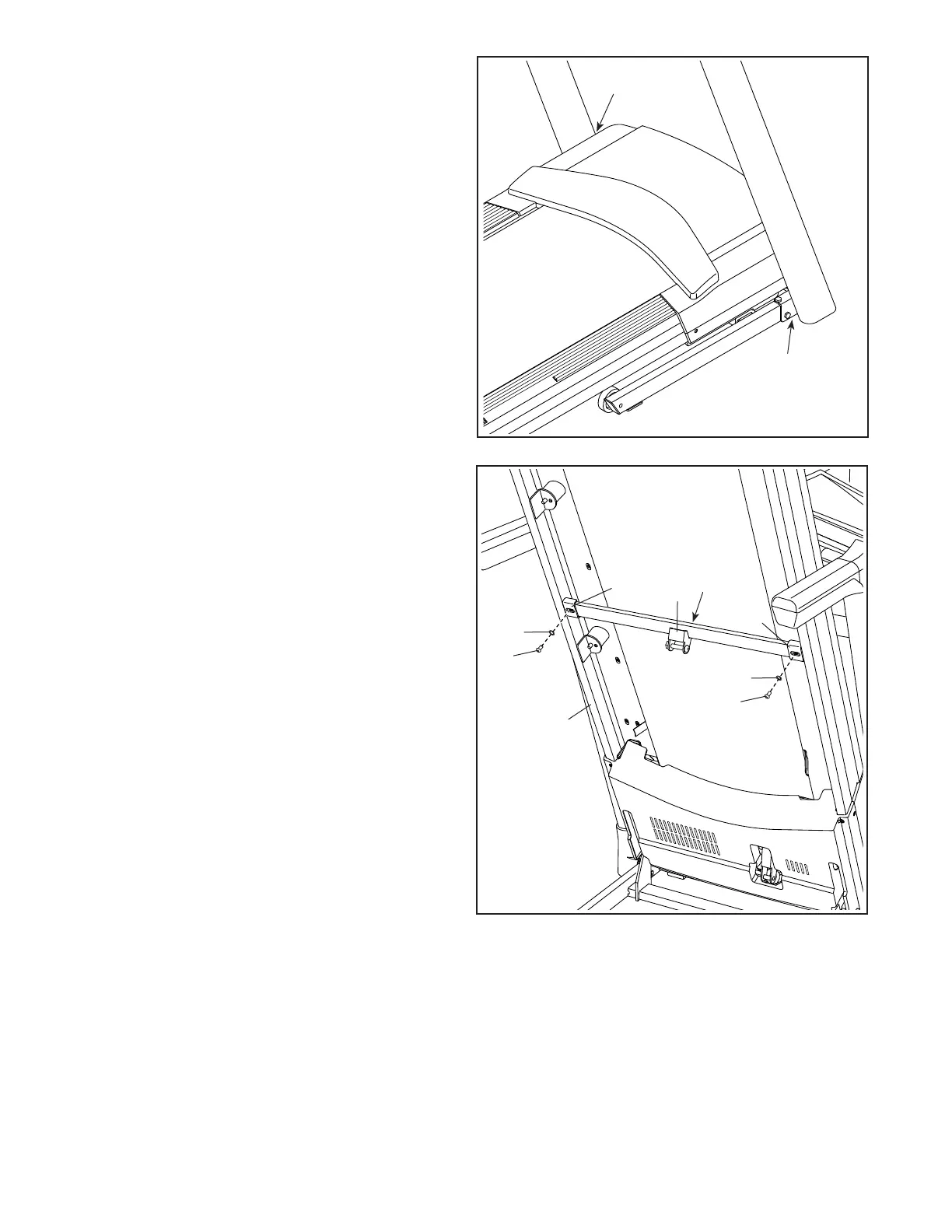

17. Raise the Frame (54) to the upright position.
Have a second person hold the Frame until
step 19 is completed.
Remove the two 5/16" x 3/4" Screws (13) from
the Latch Crossbar (97).
Next, orient the Latch Crossbar (105) as shown.
Make sure that the “This side toward belt”
sticker (L) is facing the treadmill. Attach the
Latch Crossbar to the brackets (M) on the Frame
(54) with the two 5/16" x 3/4" Screws (13) that
you just removed and two 5/16" Star Washers (7).
54
105
L
13
M
M
7
13
7
