16
88
104
51

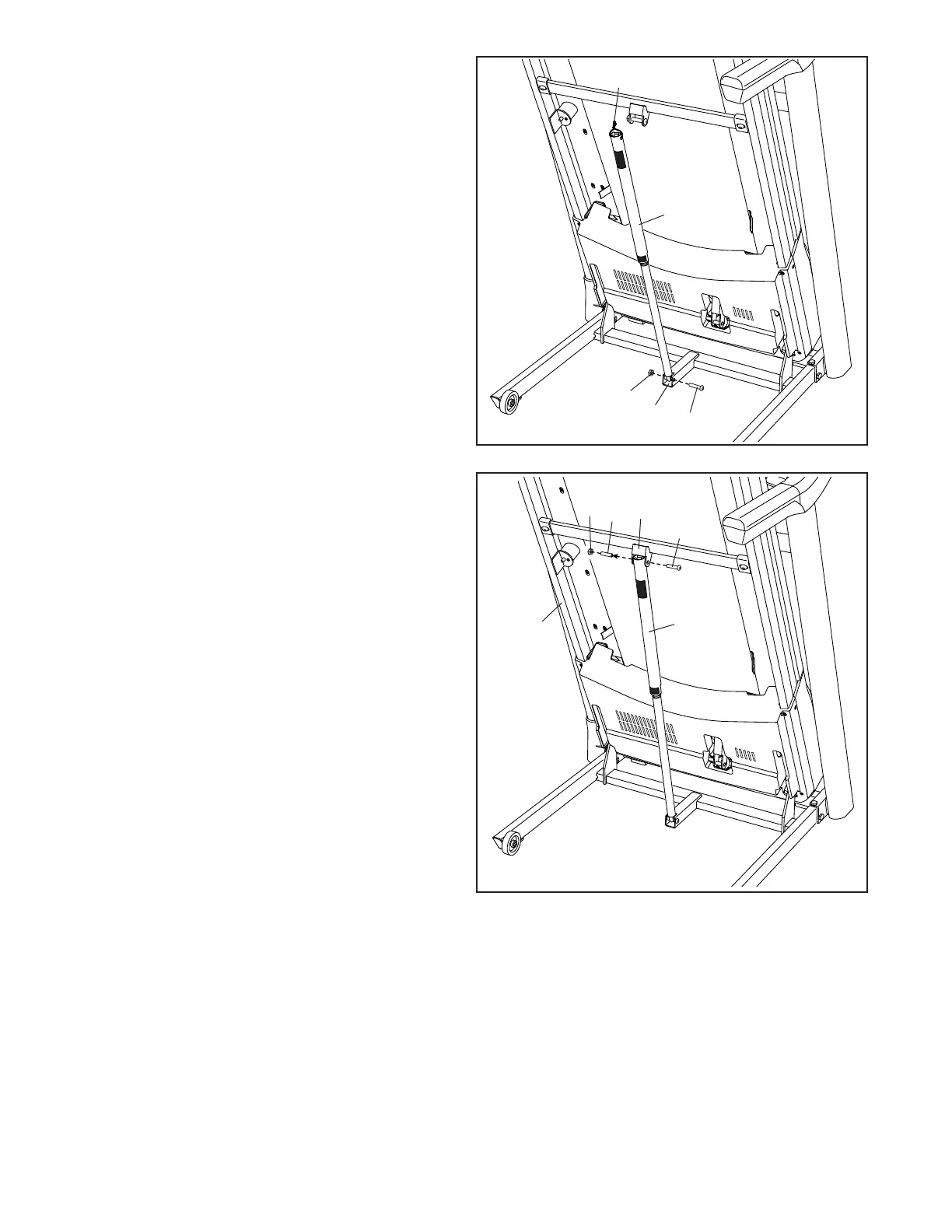

18. Remove the 5/16" Nut (51) and the 5/16" x 1 3/4"
Bolt (104) from the bracket on the Base (88).
Next, orient the Storage Latch (52) as shown.
Attach the lower end of the Storage Latch (52)
to the bracket on the Base (88) with the 5/16"
x 1 3/4" Bolt (104) and the 5/16" Nut (51) as
shown.
Then, raise the Storage Latch (52) to a vertical
position, and remove the tie (N).
18
52
N
105
103
54
51
52
19
19. Remove the 5/16" Nut (51) and the 5/16" x
2 1/4" Bolt (103) from the bracket on the Latch
Crossbar (97).
Align the upper end of the Storage Latch (52)
with the bracket on the Latch Crossbar (105),
and insert the 5/16" x 2 1/4" Bolt (103) through
the bracket and the Storage Latch. This will
push a spacer (O) out of the Storage Latch;
discard the spacer.
Next, tighten the 5/16" Nut (51) onto the 5/16" x
2 1/4" Bolt (103). Do not overtighten the Nut;
the Storage Latch (52) must be able to pivot.
Then, lower the Frame (54) (see HOW TO
LOWER THE TREADMILL FOR USE on
page 26).
O
20. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see pages 28 and 29). Note: Extra hardware may be
included.
