10

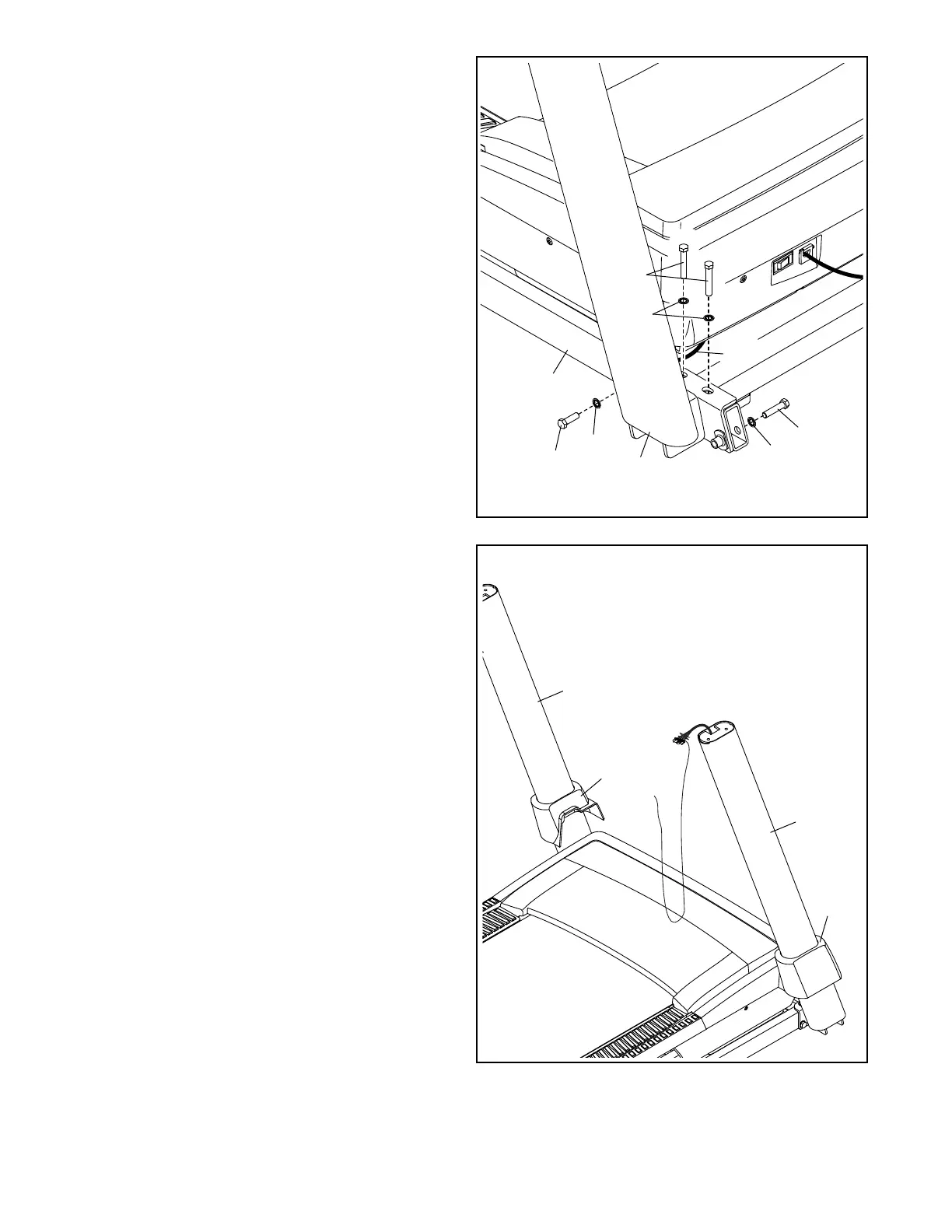

4. Hold the Right Upright (86) against the Base
(97). Make sure not to pinch the Upright
Wire (89).
Insert two 3/8" x 2 3/8" Screws (3) with two 3/8"
Star Washers (11) into the top of the bracket on
the Right Upright (86). Partially tighten the two
Screws into the Base (97); do not fully tighten
the Screws yet.
Then, partially tighten a 3/8" x 1 1/4" Screw
(1) and a 3/8" x 1 3/4" Screw (2) with 3/8"
Star Washers (11) into the bottom of the
Right Upright (86); do not fully tighten the
Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
4
5. Identify the Left and Right Base Covers (93, 92).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (85, 86) as shown.
5
1
2
97
11
86
3
11
89
11
92
86
93
85
To Next Page
