10. Insert the Upright Wire (81) through one looped
tie (I) and insert the console wire (J) through the
other tie on the console assembly (F).

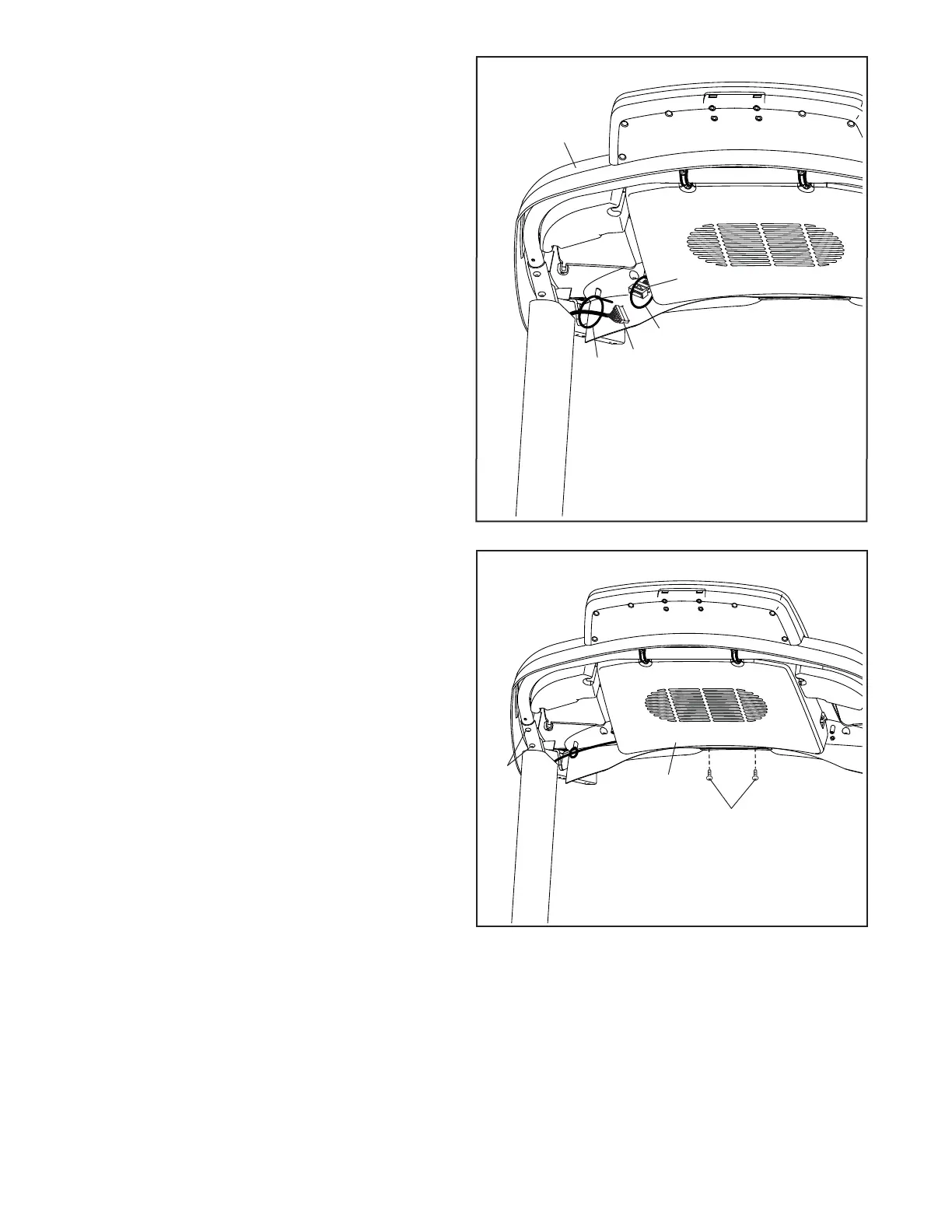

See the inset drawing. Connect the Upright
Wire (81) to the console wire (J). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER. Next, remove the wire tie
from the Upright Wire.
Pull the ties (I) tight around the Upright Wire
(81) and the console wire (J), and cut off the
ends of the ties.
10
I
I
J
F
81
11. Tighten two #8 x 1" Screws (31) into the console
assembly (F).
Then, fi rmly tighten the four 1/4" x 1/2"
Screws (12) (only one side is shown).
11
31
F
12
