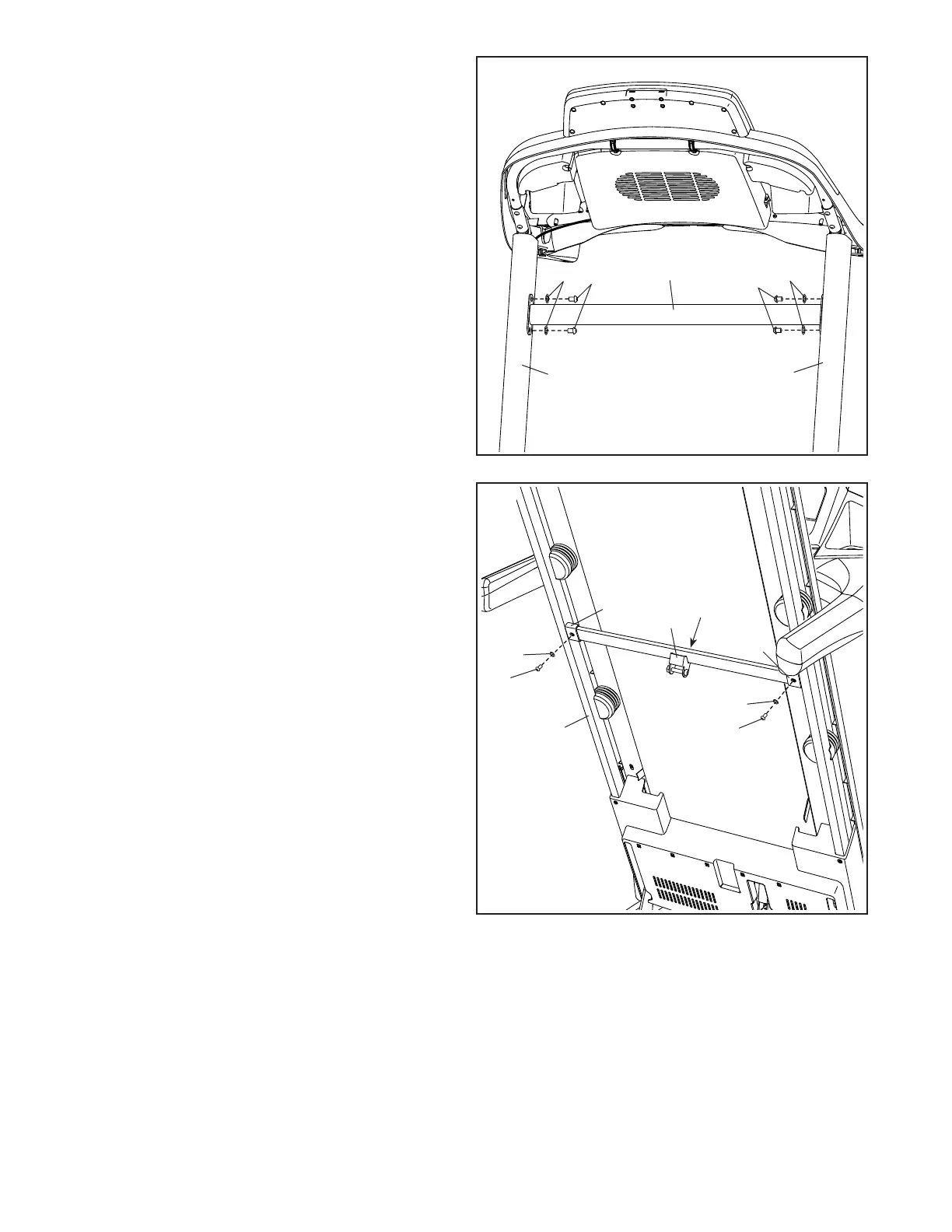

14. Carefully slide the Upright Crossbar (25)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (4) that you removed in step 5 and
four 5/16" Star Washers (11); start all four
Screws, and then tighten them.
4
90
89
25
4
11
11
15. Raise the Frame (56) to the upright position.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 17 is completed.
Remove the two 5/16" x 3/4" Screws (4) from the
Latch Crossbar (41).
Orient the Latch Crossbar (41) as shown. Make
sure that the “This side toward belt” sticker
(K) is facing the treadmill. Attach the Latch
Crossbar to the brackets (L) on the Frame (56)
with the two 5/16" x 3/4" Screws (4) and two
5/16" Star Washers (11).
56
41
K
11
11
4
4
15
L
L
