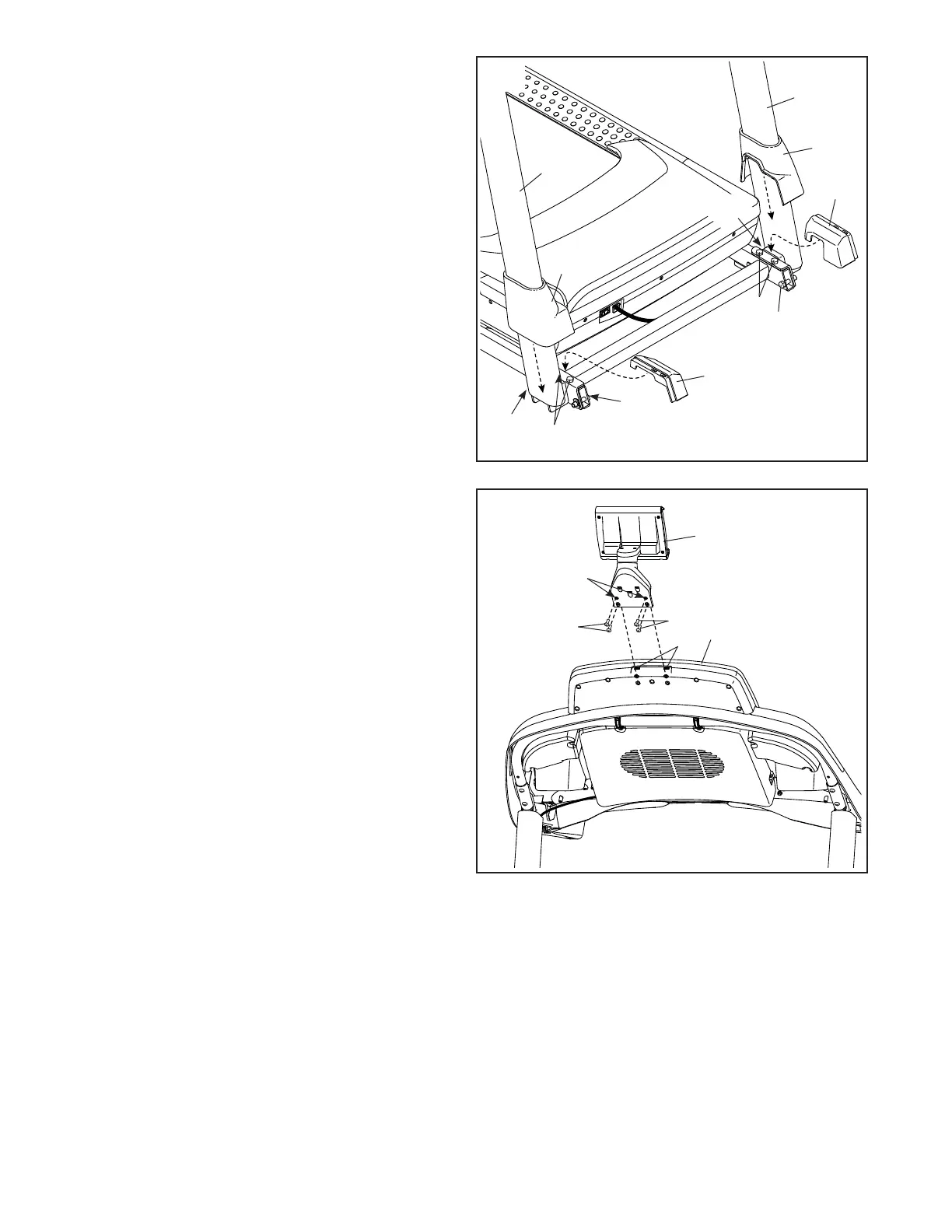

18. Firmly tighten the four 3/8" x 2 3/8" Screws (7),
the two 3/8" x 1 1/4" Screws (63), and the two
3/8" x 1 3/4" Screws (62).
Set the Left Inner Base Cover (99) onto the
lower end of the Left Upright (89). Then, slide
the Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (100) onto
the lower end of the Right Upright (90). Then,
slide the Right Base Cover (83) downward and
press it onto the Right Inner Base Cover.
99
83
82
62
89
7
7
63
62
100
18
90
63
19
38
38
98
F
O
Start First
19. Press the two tabs (not shown) on the Tablet
Holder (98) into the slots (O) in the console
assembly (F).
Then, attach the Tablet Holder (98) with four
#8 x 5/8" Machine Screws (38). Tip: Start the
two upper Machine Screws fi rst, and then
start the two lower Machine Screws. Do not
overtighten the Machine Screws.
IMPORTANT: The Tablet Holder (98) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
