14
12
84
85
8
10

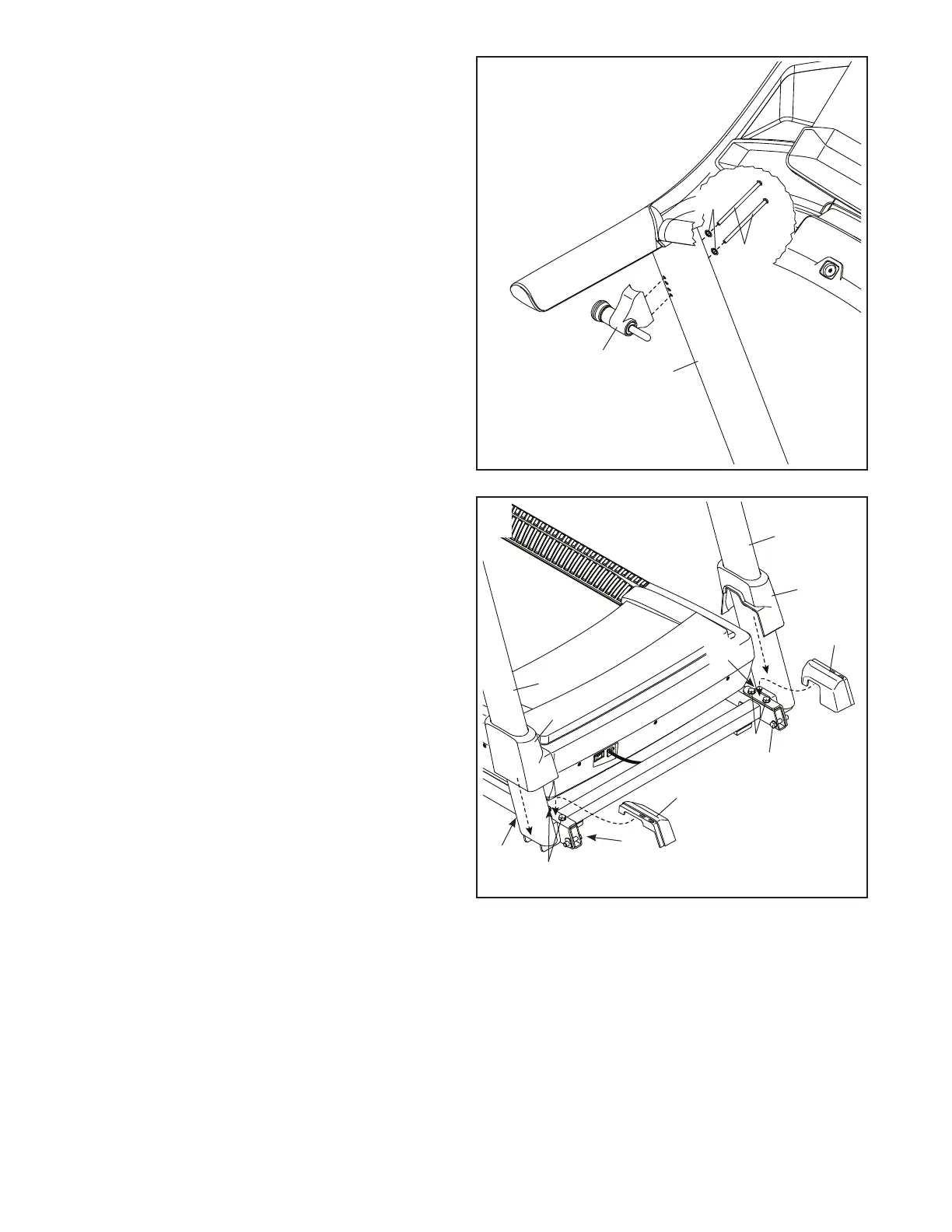

12. Orient the Storage Latch (84) as shown. Attach
the Storage Latch to the Left Upright (85) with
two 1/4" x 4 1/2" Screws (8) and two 1/4" Star
Washers (10) ; start both Screws, and then
tighten them.
13. Firmly tighten the four 3/8" x 2 3/8" Screws
(3), the two 3/8" x 1 1/4" Screws (1), and the
two 3/8" x 1 3/4" Screws (2).
Next, set the Left Inner Base Cover (95) onto the
lower end of the Left Upright (85). Then, slide
the Left Base Cover (93) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (94) onto
the lower end of the Right Upright (86). Then,
slide the Right Base Cover (92) downward and
press it onto the Right Inner Base Cover.
13
95
92
93
2
85
3
3
1
2
94
86
1
