6

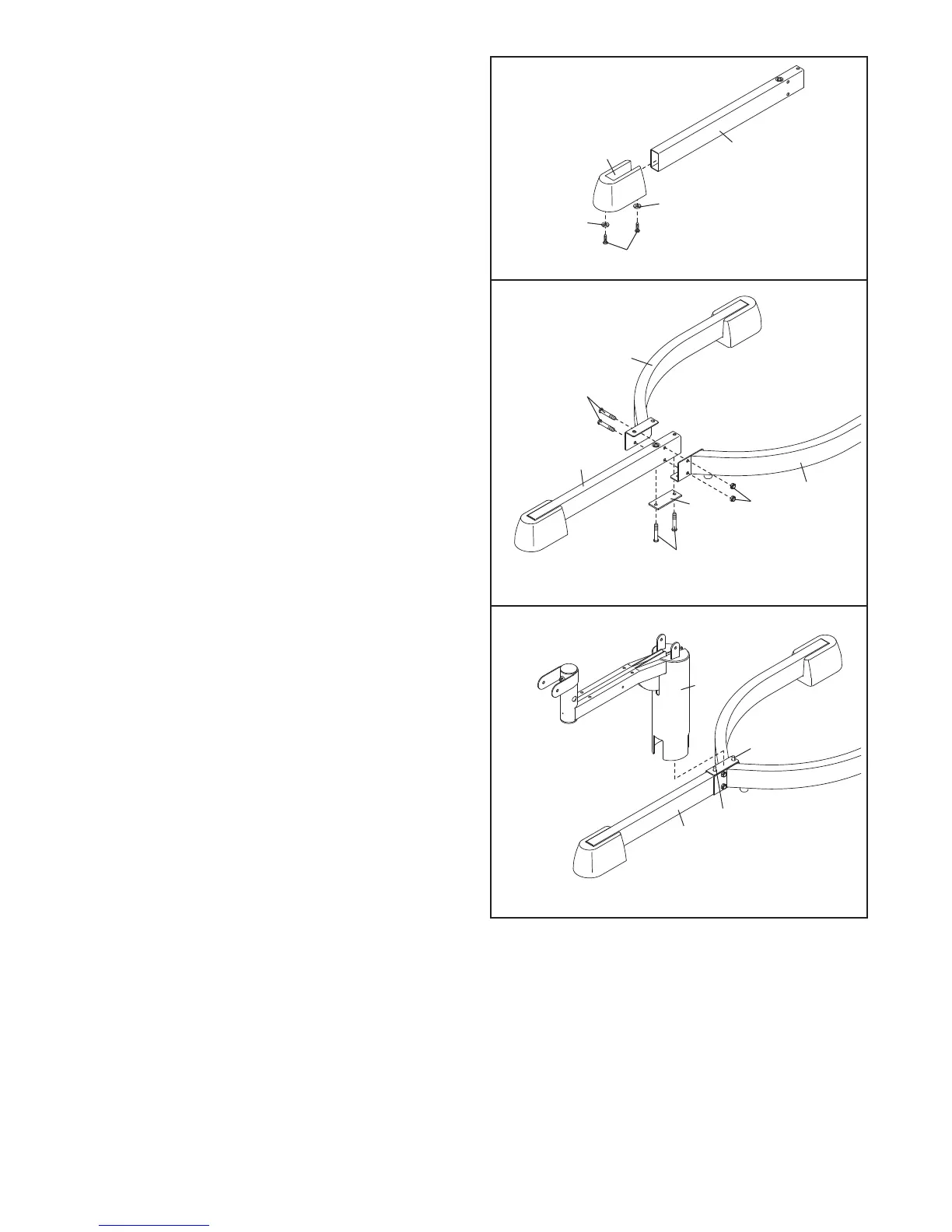

2. Attach the Bench Foot (15) to the Seat Base (1)
with two M4 x 16mm Self-tapping Screws (91)
a
nd two M4 Washers (84).
4. Attach the Seat Frame (5) to the Seat Base (1)
with the indicated two M10 x 100mm Screws (26).
3. Insert two M10 x 100mm Screws (26) up through
the Base Plate (34), and the Seat Base (1), and
the Right and Left Seat Bases (2, 3).
Attach the Right and Left Seat Bases (2, 3) to the
Seat Base (1) with two M10 x 58mm Button Bolts
(95) and two M10 Nylon Locknuts (77).
1
15
84
84
91
2
3
95
2
3
1
77
34
26
4
5
1
26
26
