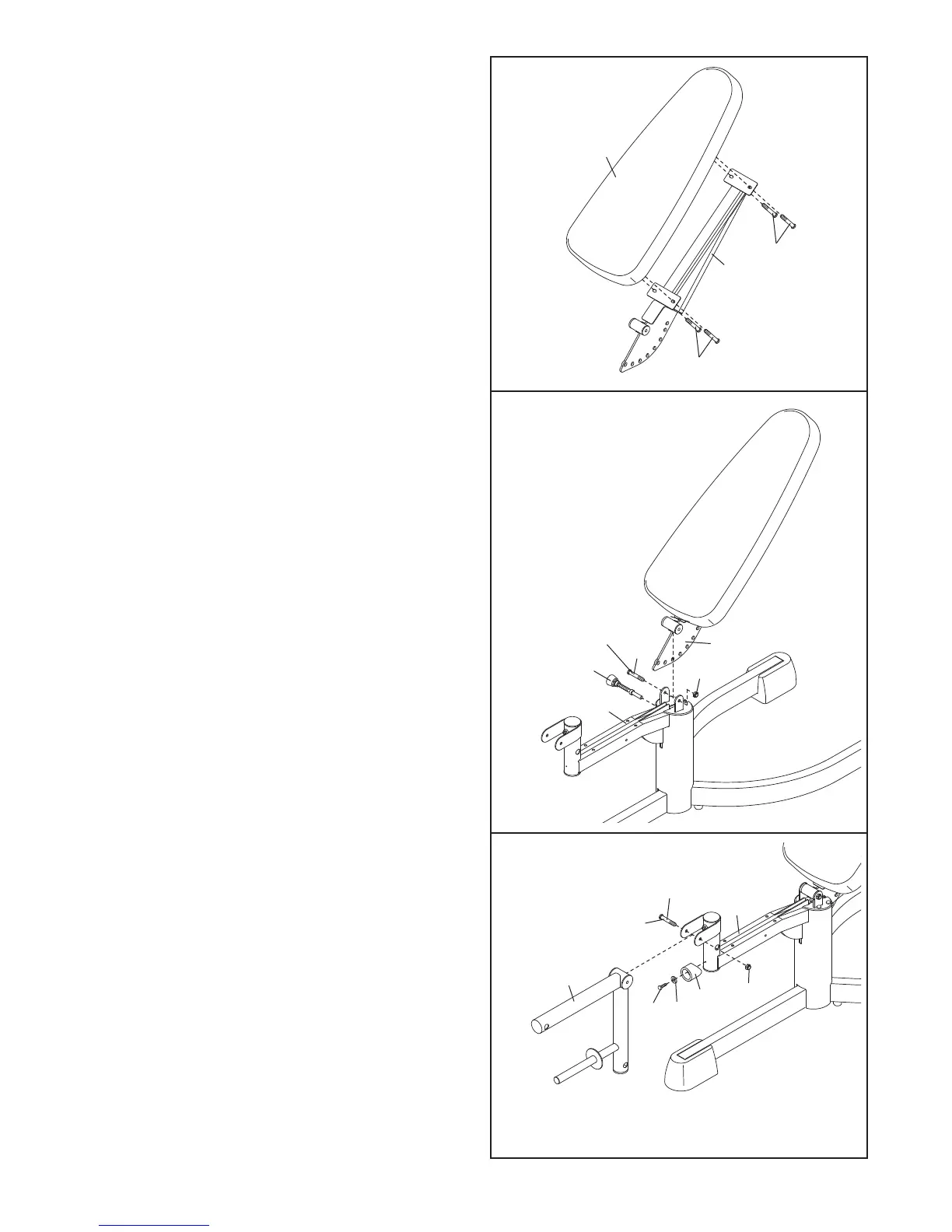

5. Attach the Backrest (11) to the Backrest Frame
(8) with four M6 x 15mm Button Screws (17).
7.
Attach the Seat Bumper (27) to the Seat Frame
(5) with an M4 x 16mm Self-tapping Screw (91)
and an M4 Washer (84).
Grease an M10 x 82mm Button Bolt (93).
Attach
the Leg Lever (6) to the Seat Frame (5) with the
Bolt and an M10 Nylon Locknut (77). Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easily
.
6. Grease the M10 x 87mm Button Bolt (94). Attach
the Backrest Frame (8) to the Seat Frame (5)
with the Bolt and an M10 Nylon Locknut (77). Do
not overtighten the Locknut; the Backrest
Frame must be able to pivot easily.
Engage the Backrest Frame (8) with the Backrest
Knob (22) and fully tighten the Knob into the Seat
Frame (5).
8
11
17
5
6
17
5
8
94
77
22
5
7
93
77
27
84
91
6
Grease
