23

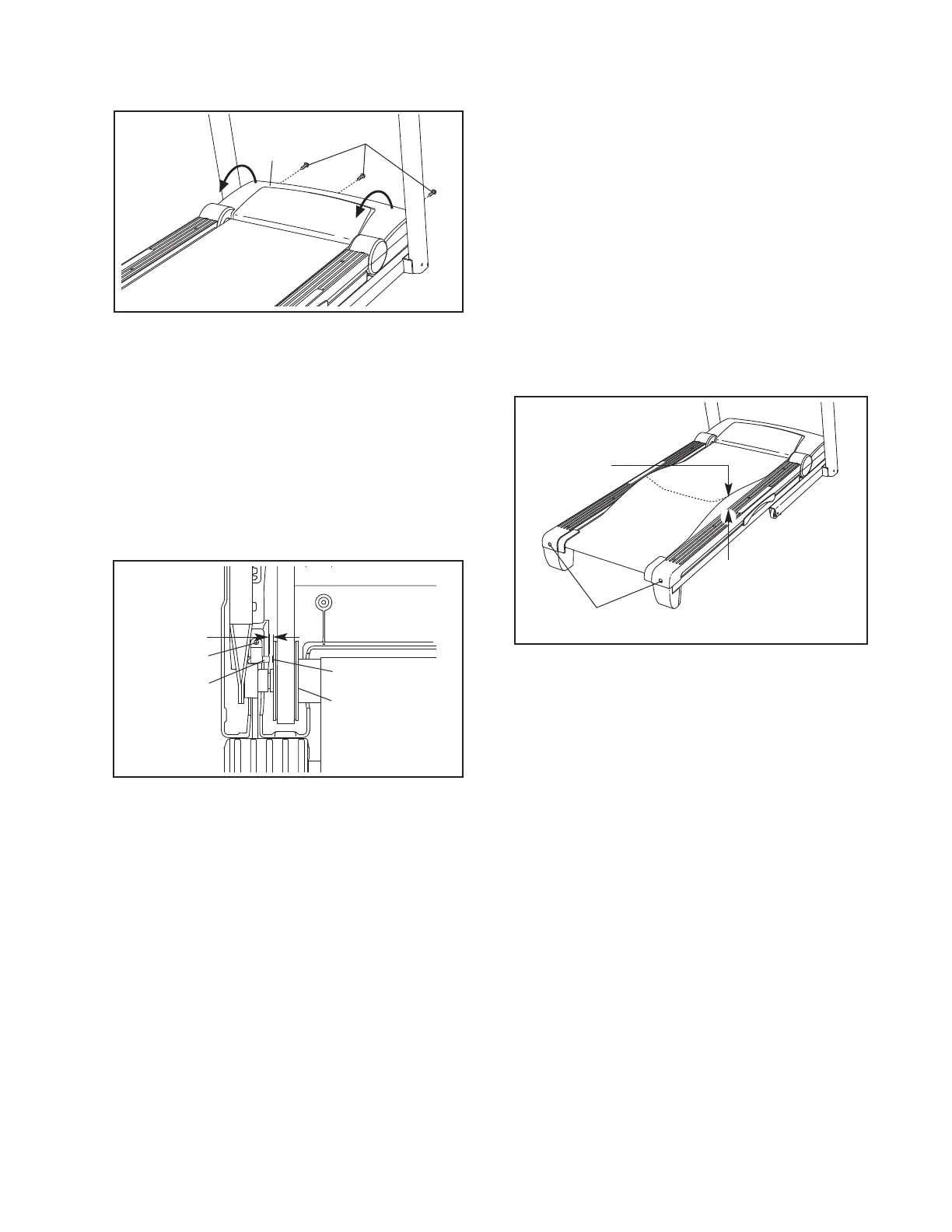

Next, remove the three #8 x 3/4" Screws (1), and
carefully pivot the Motor Hood (62) off.
Locate the Reed Switch (73) and the Magnet (47)
on the left side of the Pulley (48). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet
and the Reed Switch is about 1/8 in. (3 mm). If
necessary, loosen the #8 x 3/4" Truss Head Screw
(18), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Motor Hood (not
shown). Reattach the #8 x 2" Screws (not shown) if
necessary. Run the treadmill for a few minutes to
check for a correct speed reading.
SYMPTOM: The incline of the treadmill does not
change correctly
a. With the key in the console, press one of the
Incline buttons. While the incline is changing,
remove the key. After a few seconds, reinsert the
key. The treadmill will automatically rise to the
maximum incline level and then return to the mini-
mum level. This will recalibrate the incline system.
SYMPTOM: The walking belt slows when walked on
a. Use only a single-outlet surge suppressor that
m
eets all of the specifications described on page 14.
b
. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
c. If the walking belt still slows when walked on, see
the front cover of this manual.
Top
View
47
18
73
1/8 in.
48
Idler Roller Screws
2–3 in.
b
62
1
