CS 300 Gate Controls / Rev.D 5.6 – 7
SYSTEM
Pro-Line
Key:
M1: Motor
X1: Terminal block for mains connection
X2: Terminal block for motor
X11: Sockets for digital end position system with safety
circuit (SAFETY CIRCUIT)
X14: Terminal block for voltage selection
Connection:
 Connect the digital end position system to the control.
 Connect the control to the motor.
 Connect the control to the mains power supply.
 Cable groups must be secured directly before their relevant
terminals using a cable tie.
Ô “11.Technicaldata“onpage28

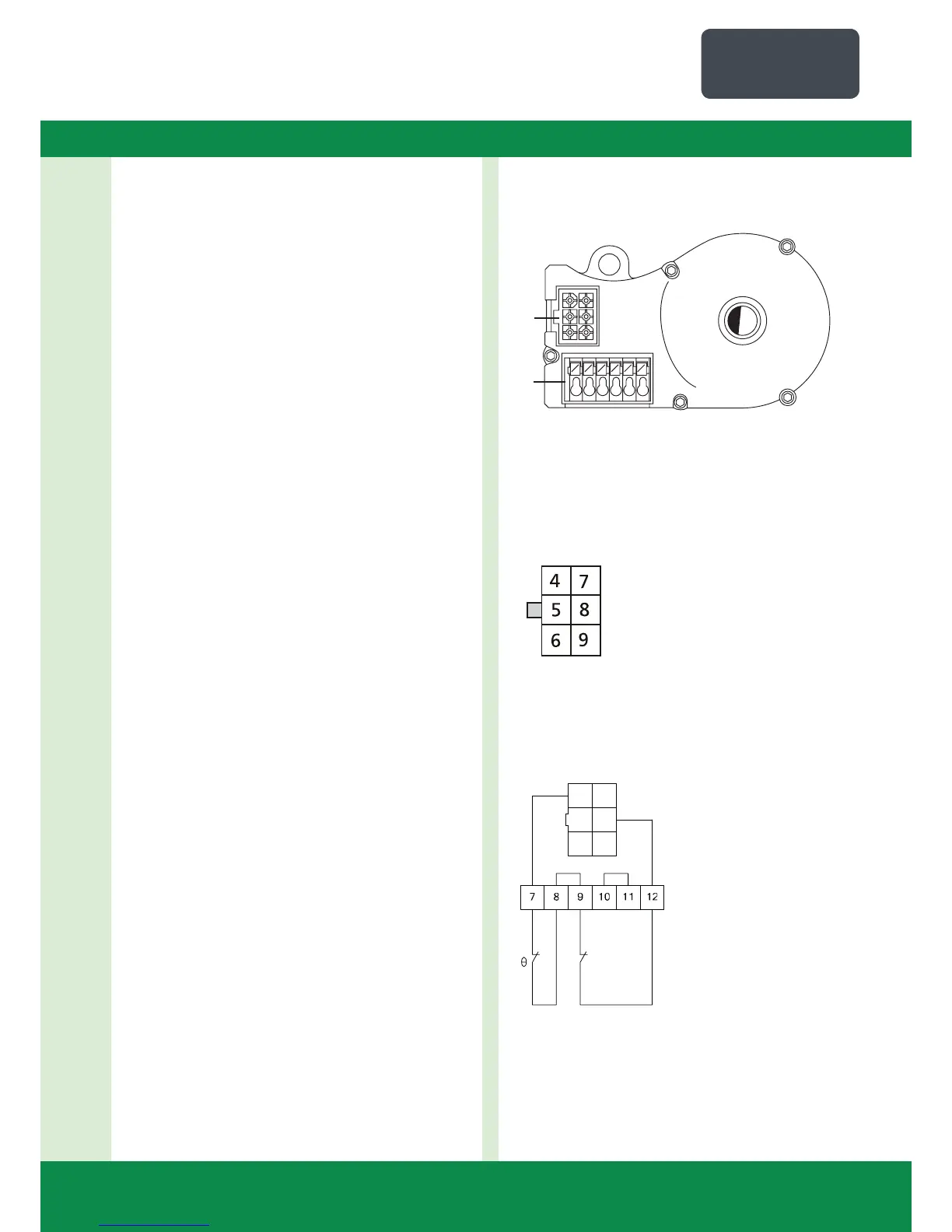

5.3 Allocation of connections for absolute
value encoder (sockets X11)
A
B
A: AWG plugs
B: AWG plug terminal
X11 sockets (at connection A)
The numbers on the plug are also the wire
numbers:
4: Safety circuit input
5: RS 485 B
6: GROUND
7: RS485 A
8: Safety chain output
9: 12V
DC
Sockets B (absolute value encoder only)
C D
C: Thermal element in door
operator
D: Emergency manual
operation
(emergency hand crank or
emergency hand chain)
