60 Gallon Single Stage Stationary Air Compressor
17Visit www.princessauto.com for more information
8475006
V 1.6
PART #
DESCRIPTION QT Y. PART IDENTIFIER
33 Bolt, 3/8 x 1 in. 4 059-1007
34 Nut, Lock 10-32 1 058-0158
35 Washer #10 2 060-0146
36 Screw, 5/16-18 1 059-0389
37 Nipple, 3/8 x 4 in. 1 065-0040
38 Cap-Pipe 3/8 in. NPT 1 062-0101
39 Screw, M5 x 20 mm 5 061-0255
40 Adapter, 3/4 x 3/4 in. 1 068-0116
Vibration Pads (Available Separately) 094-0137
TORQUE CHART - PUMP
1 Torque to 5 to 7 ft-lb
(7 to 9 N-m)
2 Torque to 15 to 18 ft-lb
(20 to 24 N-m)
3 Torque to 28 to 31 ft-lb
(38 to 42 N-m)

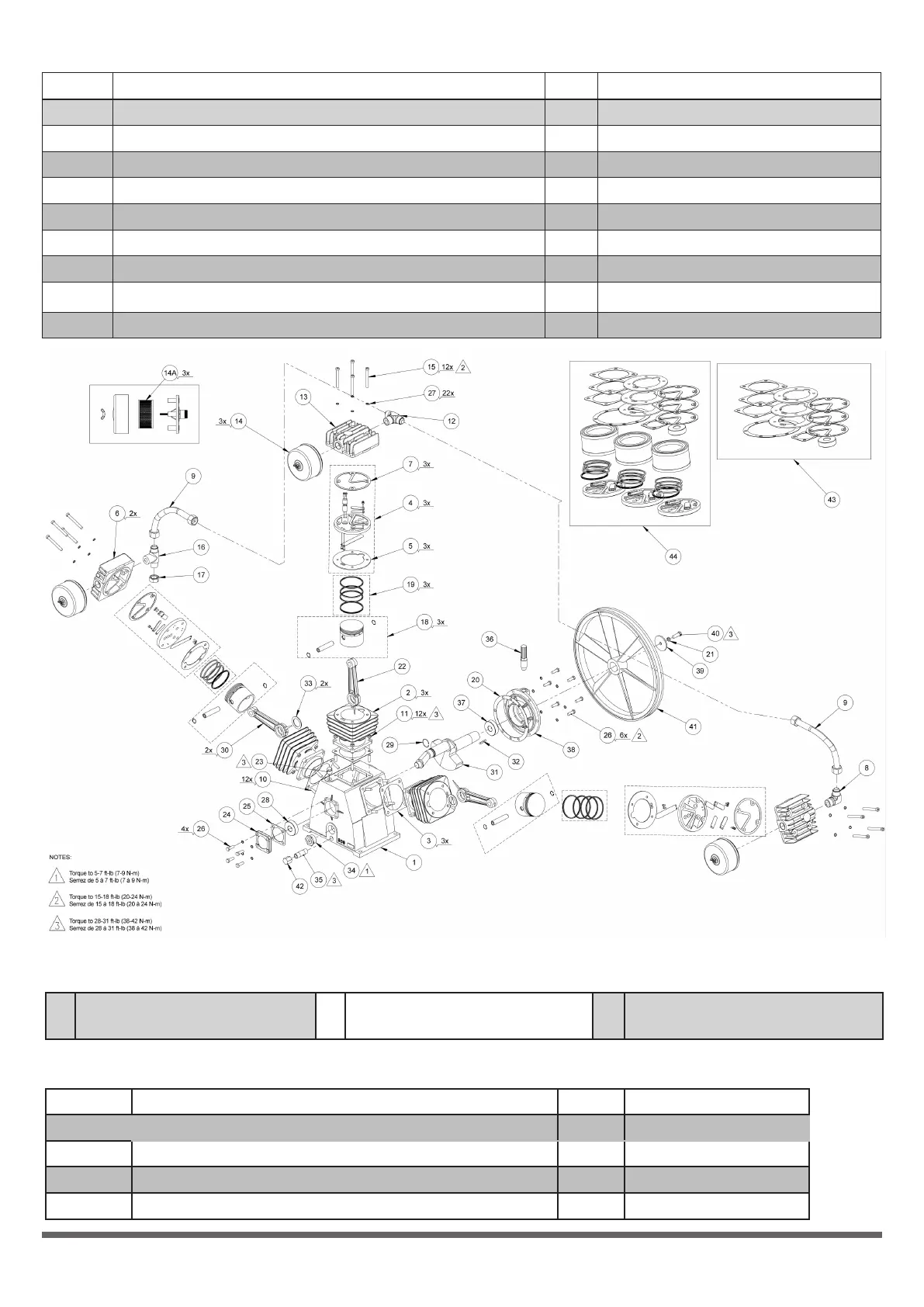

PARTS LIST - PUMP ASSEMBLY (18CFM)
PART # DESCRIPTION QTY. PART IDENTIFIER
1
Crankcase 1 049-0060
2
Cylinder 3 050-0074
3
Gasket, cyl. to crankcase 3 046-0354
4
Valve plate assembly 3 043-0231
