Rating: 200A CO2 150A mixed gas, EN60974-7 @ 60% duty cycle. 0.6 to 1.2mm / 0.025” to 0.045
47/34” wires

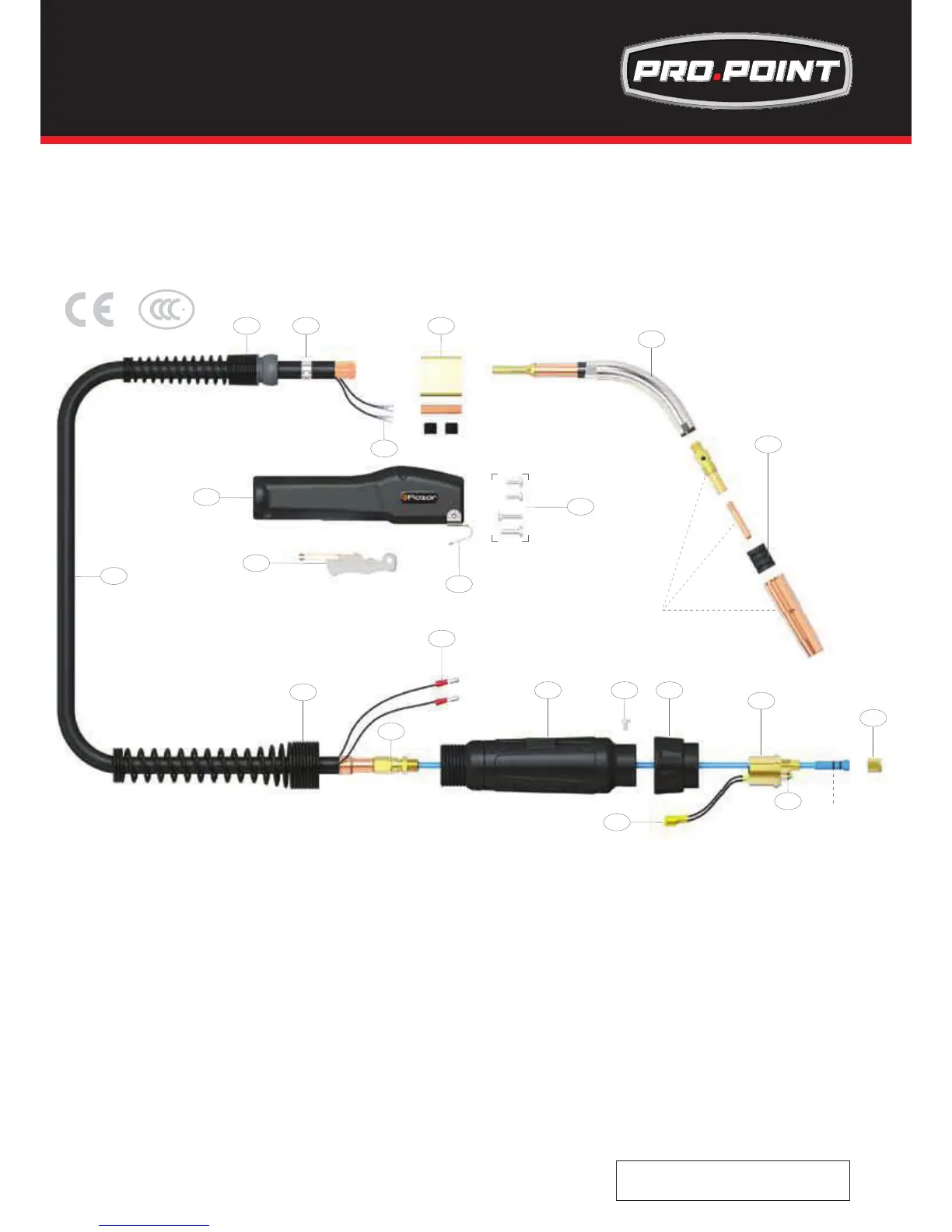

TWC2 STYLE MIG TORCH
Description
1 Adjustable Nozzle Insulator
2 TW No.2 Metal Jacket Neck Assembly
45 Degreet Neck Assembly
60 Degreet Neck Assembly
3 Block C/W Spacer & Screws
4 Control Wire Terminals
5 Hose Clamp 18.5mm / (47/64)
6 Spring Cable Support Small & Ball Joint
7 Hyperex C/Assy X 10ft Euro
Hyperex C/Assy X 12ft Euro
Hyperex C/Assy X 15ft Euro
Hyperex C/Assy X 10ft
Hyperex C/Assy X 12ft
Hyperex C/Assy X 15ft
8 Handle With Hook & Screw
Description
9 Grey Trigger Switch
10 Hanger Hook
11 Screw Kit
112 Cable Terminal Male
13 Cable End Lock Nut (M12 X 1.0)
14 Cable Support
15 Gun Plug Housing C/W Nut
16 Gun Plug Screw
17 Gun Plug Nut
18 Gun Plug Terminal Female
19 TWC Euro Gun Plug Body
20 Gun Plug ‘O’ Ring
21 Liner Retaining Nut
*
Wear parts next page
*
Wear parts next page
1
2
356
14
12
13
18
15 16 17
19
20
21
8
7
9
10
11
4
Torch Model
Description Part Number
15ft
Welding Torch c/w Euro Fitting TWC2-15FTE
TWC2 Air Cooled Mig Welding Torch
Rating: 200A CO2 150A mixed gas, EN60974-7 @ 60% duty cycle. 0.6 to 1.2mm / 0.023” to 0.047” wires
TWC2 STYLE MIG TORCH
Spare Parts
Part Number Description
1 PWGA32 Adjustable Nozzle Insulator
2 U62J60 TW No.2 Metal Jacket Neck Assembly
WGA62A-45 45 Degreet Neck Assembly
WGA62A-60 60 DegreetNeck Assembly
3 U102 Block C/W Spacer & Screws
4 U244T Control Wire Terminals
5 UB5044 Hose Clamp 18.5mm / 0.728”
6 U141-6S Spring Cable Support Small & Ball Joint
7 U200-10E Hyperex C/Assy X 10ft Euro
U200-12E Hyperex C/Assy X 12ft Euro
U200-15E Hyperex C/Assy X 15ft Euro
Part Number Description
9 U92 Grey Trigger Switch
10 U152 Hanger Hook
11 U122FMS Screw Kit
112 UB1522 Cable Terminal Male
13 UXL1542 Cable End Lock Nut (M12 X 1.0)
14 UPA2041 Cable Support
15 UB1518 Gun Plug Housing C/W Nut
16 UB1526 Gun Plug Screw
17 UB1519/S Gun Plug Nut
18 UB1523 Gun Plug Terminal Female
19 U174EX-1 TWC Euro Gun Plug Body
