pro.point 8619470 - 200 AMP SPOOL GUN PARTS; Spool Gun Assembly Diagram

37
TWC2 Contact Tips
QTY10
QTY10
QTY10
/ 0.030”
/ 0.035”
/ 0.040”
Contact tip 0.8mm
Contact tip 0.9mm
Contact tip 1.0mm
Contact tip 1.2mm / 0.045” QTY10
Liners
TWC2 Liners
Liner 15 ft 0.8 - 0.9mm / 0.030” - 0.035”
Liner 15ft 1.0 - 1.2mm / 0.040” - 0.0457”
Liner 15ft 1.0 - 1.2mm / 0.040” - 0.045” Alloy
These parts are manufactured in China and are oered as
replacement parts suitable for “TWECO” style torches.
TWC2 Torch Nozzle
Nozzle Adjustable 13mm / (33/67)
Nozzle Adjustable 16mm / (5/8)
QTY2
QTY2
TWC2 Torch Nozzle Fixed
Nozzle Insulator QTY2
Nozzle xed 13mm / (33/67)
Nozzle xed 16mm / (5/8) QTY2
Nozzle xed 13mm / (33/67)
Nozzle xed 16mm / (5/8) QTY2
QTY2
QTY2
TWC2 Gas Diuser
Gas Diuser
QTY2
Gas Diuser to suit xed nozzle QTY2
TWC2 Contact Tips H/D
Contact H/D tip 0.8mm / 0.030”
Contact H/D tip 0.9mm / 0.035”
Contact H/D tip 1.0mm / 0.040”
Contact H/D tip 1.2mm / 0.045”
Contact H/D tip 1.4mm / 0.052:
Contact H/D tip 2.0mm / (5/64)
Contact H/D Ali tip 1.2mm / 0.045”
Contact H/D Ali tip 1.6mm / (1/16) QTY10
QTY10
QTY10
QTY10
QTY10
QTY10
QTY10
QTY10
tt
Duty Cycle 35% @ 200Amp
Wear Parts Next Page
Description
1 Speed Adjusting Knob
2 Open/Close Button
3 Left-Gun Case
4 Hang Hook
5 Spring Support
6 Motor
7 Motor Plate
8 Suspension Screw
9 Drive Roll Assembly
10 Wire Nipple
11 Spool Shaft
12 Right-Gun Case
13 Upper-Gun Case
14 Switch
Description
15 Potentiometer
16 Push Roll
17 Conducting Board
18 Conducting Tube
19 Welding Cable
20 Spring Support (Back)
21 Adaptor Support
22 Adaptor Support Nut
23 Adaptor
24 4 Pin Plug

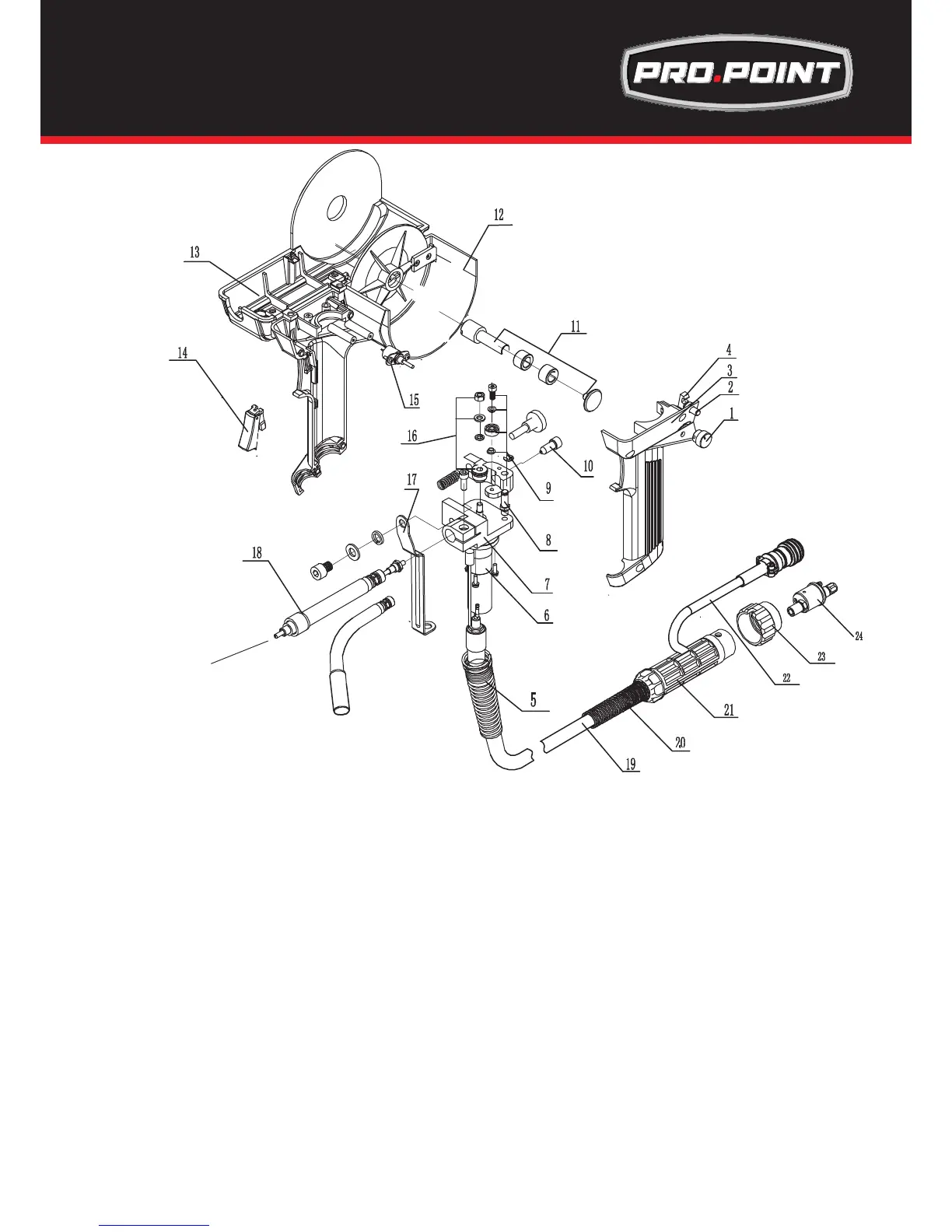

200 AMP Spool Gun Parts Breakdown
Part Number: 8612517
Sold Seperately
