pro.point 8619470 - PANEL LAYOUTS; Front Panel Layout

9

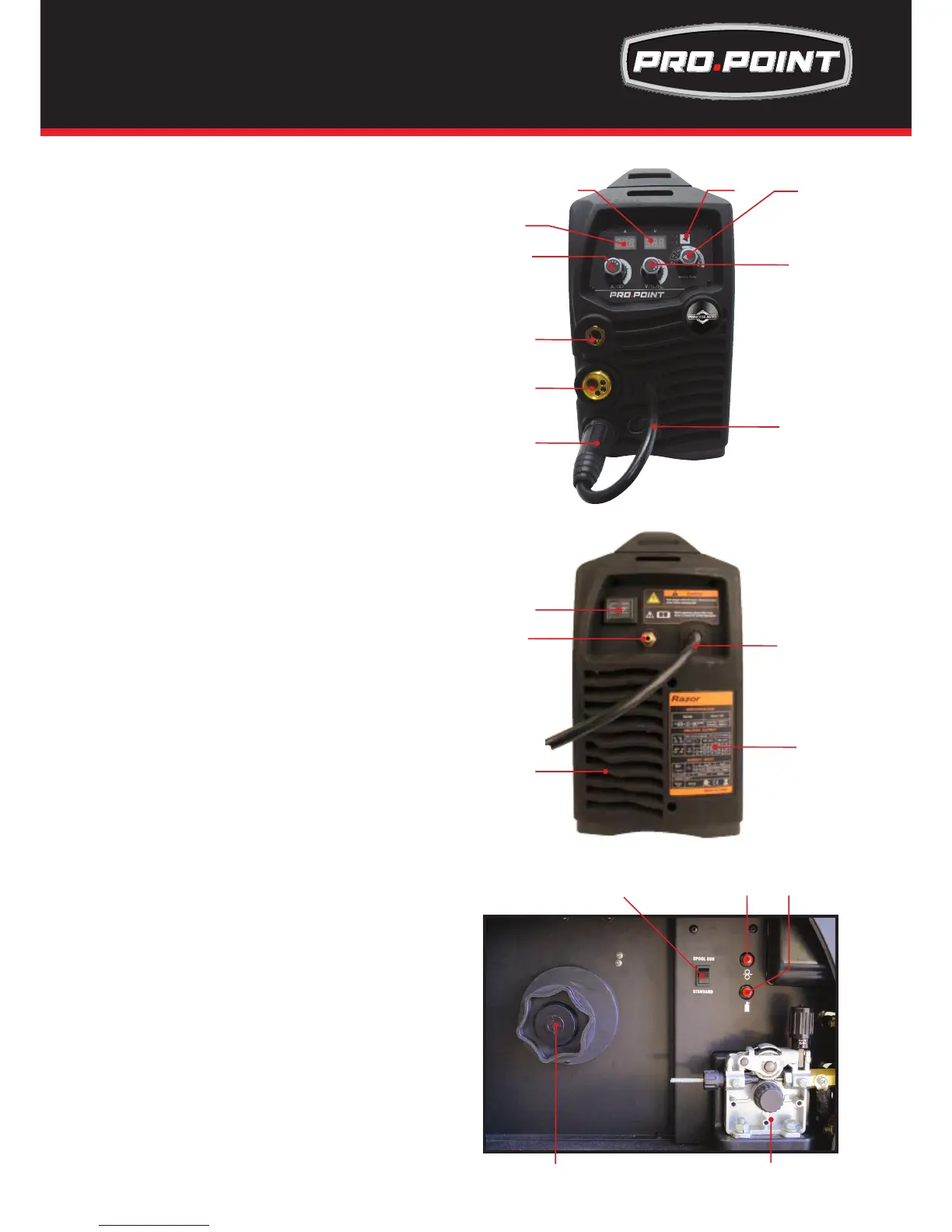

FRONT PANEL LAYOUT
1. Digital Volts Meter
2. Digital Amps Meter
3. 2T/4T Selector Button
4. Wire Speed / AmpsAdjustment Knob
5. Voltage / Downslope /ARC Force Adjustment Knob
6. MIG / TIG / MMA /Smartset Selector Knob
7. “-” Output terminal
8. Euro MIG / TIG Torch Connector (MIG/MAG)
9. “+” Output terminal
10. SpoolGun Power Supply Connection
BACK PANEL LAYOUT
11. Power switch
12. Gas Inlet
13. Fan
14. Input power cable
15. Data Plate
14
12
15
11
INTERNAL PANEL LAYOUT
16. Spoolgun/Standard selector switch
17. Inch wire feed button
18. Gas Check button
19. Spool holder assembly
20. Geared Wire feed assembly
17
20
19
13
18
16
1
2
3 6
5
4
7
8
9
10
Front, Back, & Internal Panel Layout for Pro.
Point145 & 180
