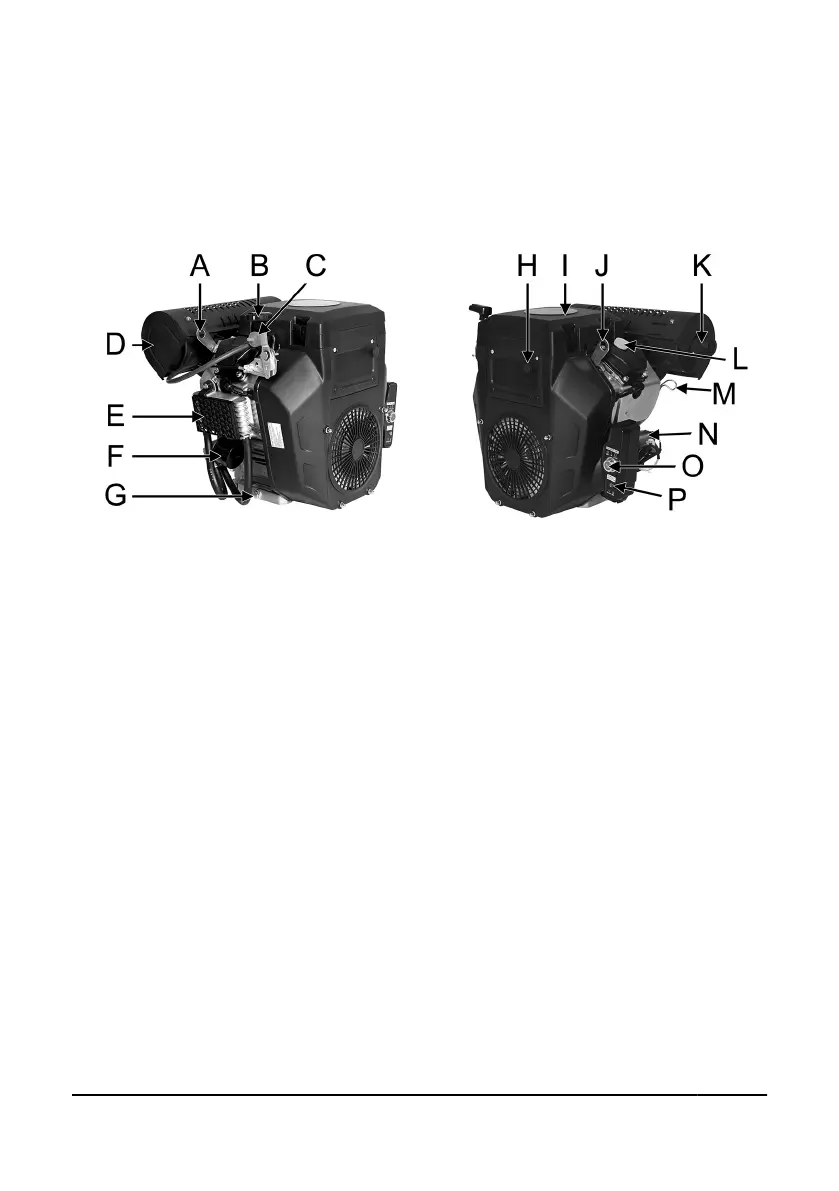

IDENTIFICATION KEY
When this manual refers to a letter, it corresponds to the components
shown in Figure 1. Compare the illustration with your engine to
familiarize yourself with the location of various features and controls.
A. Anchor Point
B. Throttle Lever
C. Fuel Filter
D. Muffler
E. Oil Cooler
F. Oil Filter
G. Oil Drain Plug
H. Choke
I. Air Cleaner
J. Anchor Point
K. Exhaust Pipe
L. Oil and Gas Port
M. Dipstick
N. Starting Motor
O. Key-Ignition
Switch
P. Circuit Protector
ASSEMBLY & INSTALLATION
VENT HOSE ASSEMBLY
The engine has a vent hose that attaches to the fuel tank's one-way
valve. The tank sits on top of the engine. Vapour form as the engine
warms the gasoline.
When the pressure inside the tank reaches a predetermined level,
the one-way valve releases the vapour into the vent hose, which is
connected to the air intake. The vapour and air are drawn into the
engine for combustion.
8996977 V-TWIN GAS ENGINE V1.1
Assistance available at www.princessauto.com or 1-800-665-8685 Page 8
