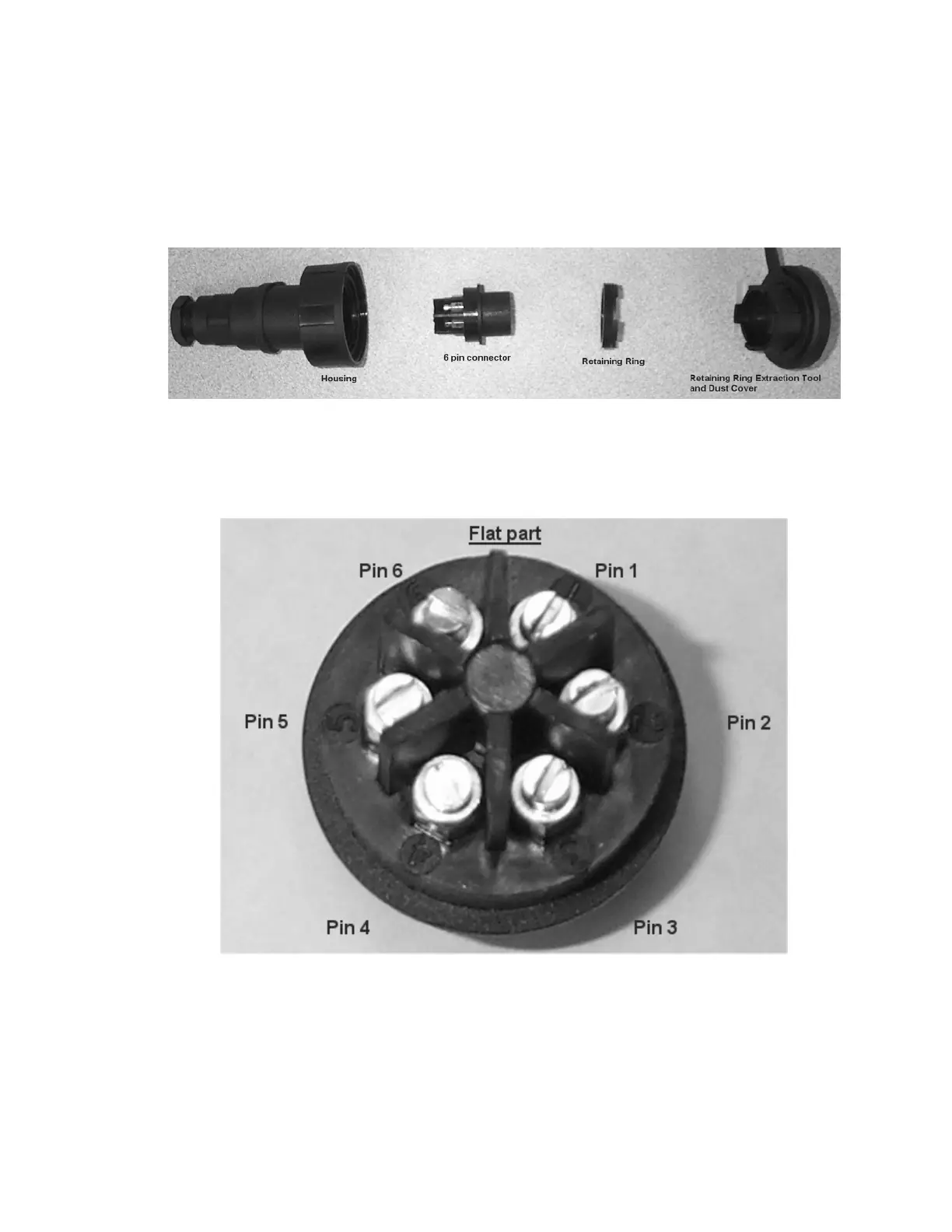

Rear Analog/Digital Connector
Use the end of the Dust Cover to un-screw the ‘Retaining Ring’ in order to remove the 6 pin
connector.
The ‘Flat part’ of the connect fits into the ‘Housing’, mating with a similar ‘Flat part’.
