NOTE: The line trimming cut-off blade on the grass guard will cut the line to the
correct length.
IMPORTANT: If the line is worn too short you may not be able to advance the line
by tapping it on the ground. If so, STOP the engine, and manually advance the
line.
To advance the cutting line manually, push the spool retainer down while pulling on
line(s) to manually advance the line.
The trimmer is equipped with a line trimming cut-off blade on the grass guard.
For best cutting, advance line until it is trimmed to length by the cut-off blade.
Advance the line whenever you hear the engine running faster than normal, or
when trimming efciency diminishes.
This will maintain best performance and keep the line long enough to advance
properly.
WARNING! If grass becomes wrapped around the line head or blade,
STOP THE ENGINE, disconnect the spark plug wire, and remove the grass.
n
n
n
n
MAINTENANCE
WARNING: Use only original manufacturer’s replacement parts, accessories and
attachments. Failure to do so can cause poor performance, possible injury
and may void your warranty.
You can often make adjustments and repairs described here. For other repairs,
have the trimmer serviced by an authorized service dealer.
Cutting Line Replacement
Use only monolament line.
IMPORTANT: Line Diameter: 2.0 mm (0.082”)
1. Switch off the ignition switch to stop the engine.
2. Disconnect the spark plug wire.
3. Insert the T25 torx driver wrench as a gear head locking tool through the slot in
the blade seat ange and gear head.
4. Remove the line trimmer head assembly, turning it clockwise.
5. Hold the line head and unscrew the spool retainer (19, g.22), turning it
counterclockwise.
6. Remove the spool (18-5, g.22) from the line head.
NOTE: Keep the spring attached to the spool.
7. Remove any old line remaining on the spool.
8. Cut a piece of line, approximately 5.5 m (18 ft.) long.
9. Fold the line in half.

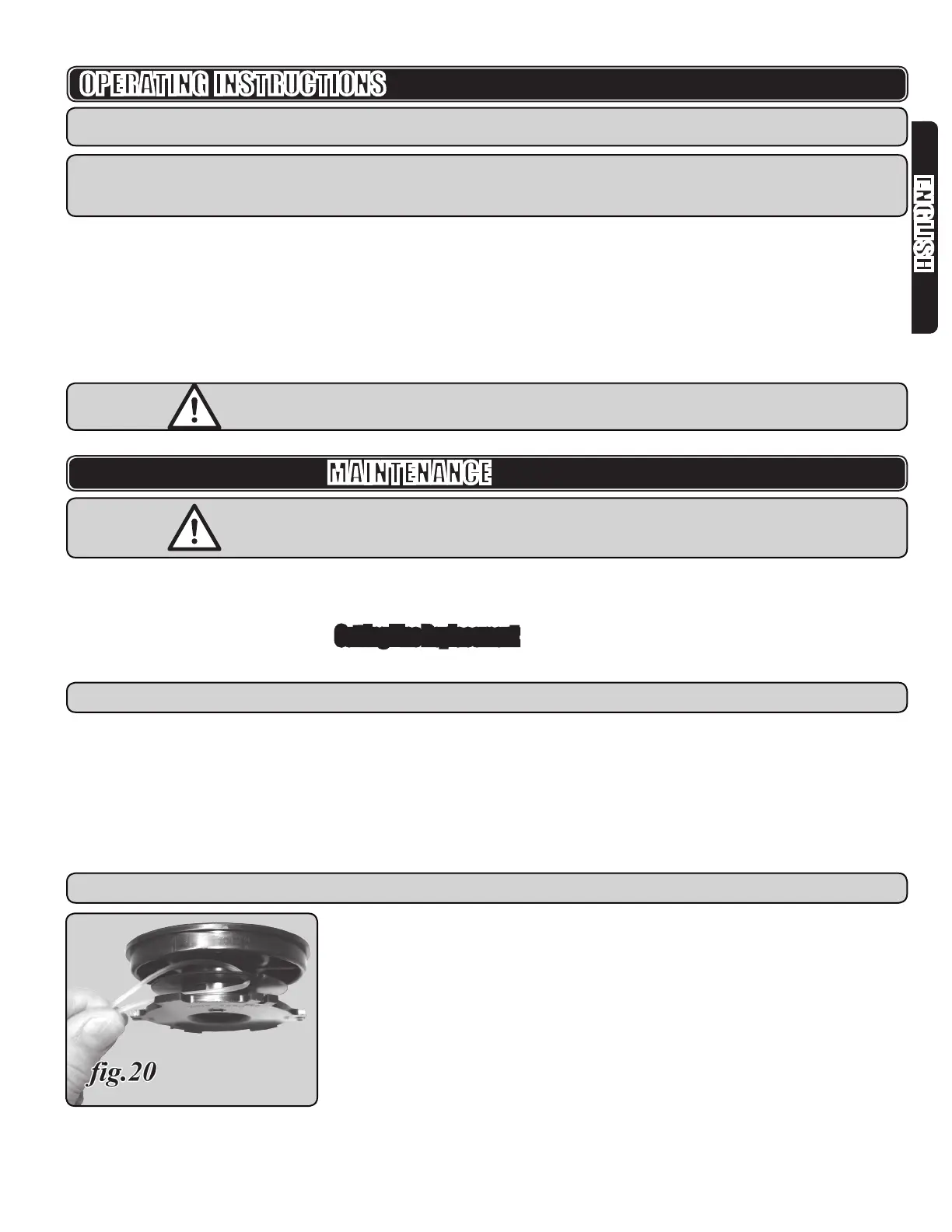

10. Insert the line into the slot in the spool (g.20) at the fold.
11. Wind the line around the 2 slots of the upper/bottom spool anges, following the
“Wind Cord” arrows on the spool. Do not overll.
