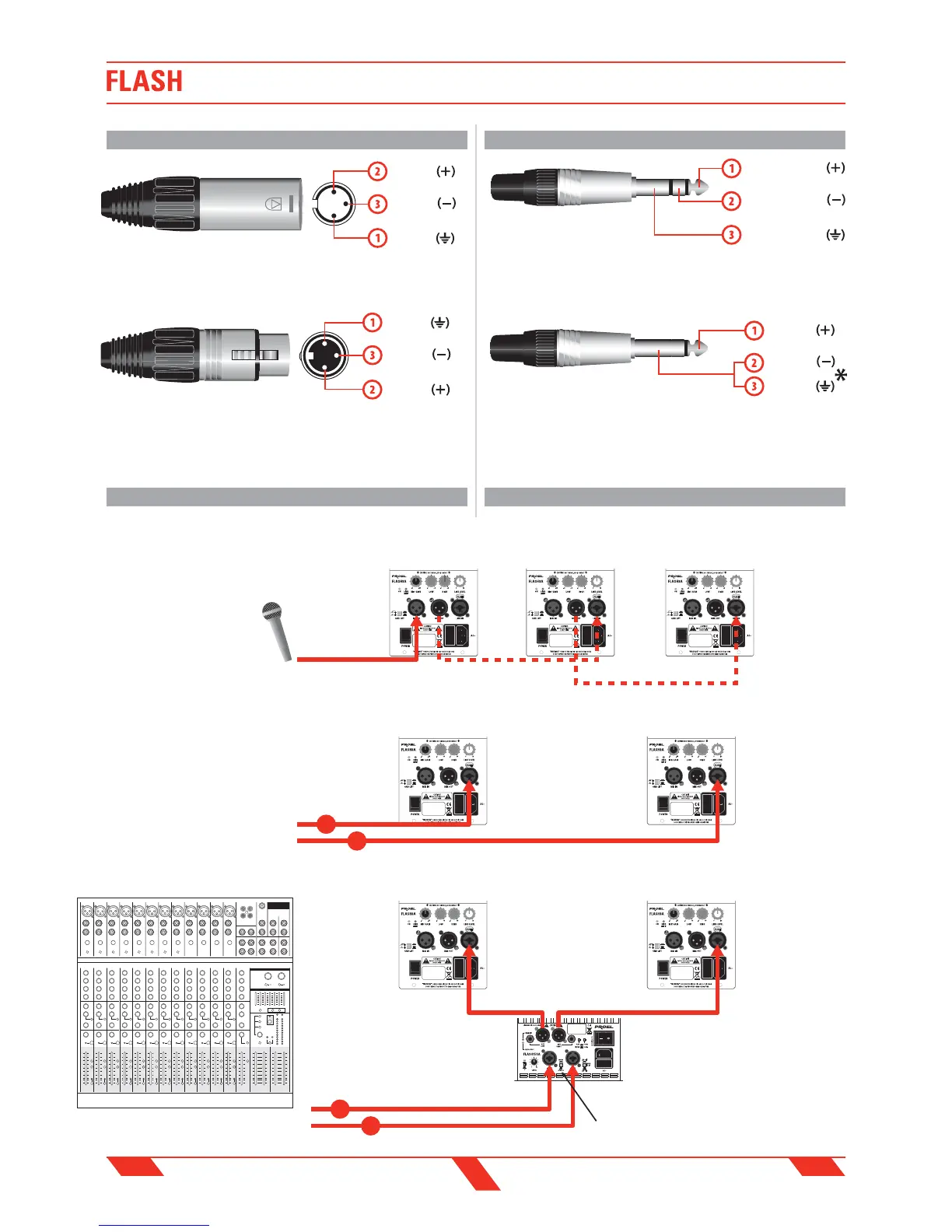

FLASH8A - CONNECTIONS AND EXAMPLES
FLASH8A - CONNESSIONI ED ESEMPI
FLASH8A - CONNECTIONS FLASH8A - CONNESSIONI
INPUT (ingresso)
Jack (bilanciato)
INPUT
Jack (balanced)
sleeve - ground
tip - hot
ring - cold
INPUT (ingresso)
XLR bilanciato maschio
INPUT
Balanced male XLR
ground
hot
cold
INPUT (ingresso)
Jack (sbilanciato)
INPUT
Jack (unbalanced)
ground
tip - hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
OUTPUT (uscita)
XLR bilanciato femmina
OUTPUT
Balanced female XLR
ground
hot
cold
L
R
L
R
L
PROEL suggested
equipment:
M-series mixer
dynamic
microphone
PROEL suggested
types:
DM588 - DM220
DM802A - DM900 - DM968
LEFT
FLASH8A (sat)
RIGHT
FLASH8A (sat)
RIGHT
FLASH8A
LEFT
FLASH8A
basic system
2x FLASH8A
230W x2 (460W)
FLASH8A
(mic in)
single voice system
FLASH8A
(line in)
single voice system
FLASH8A
(line in)
single voice system
minimal
conference
system
SUB+SAT system
1x FLASH15SA
+
2x FLASH8A
350W x1 + 230W x2
(810W)
FLASH15SA (stereo sub)
set this switch as stereo
FLASH8A - ESEMPI DI CONNESSIONE
FLASH8A - CONNECTION EXAMPLES
