FLASH8P - CONNECTIONS
POWER OUTPUT - uscite altoparlanti
Connettore per cavo tipo Speakon Neutrik NL4
PROEL code - NL4FX
Codice PROEL - NL4FX
SPEAKER POWER OUTPUTS
Neutrik NL4 Speakon Cable Connector
2-
1+
2+
1-
20mm
0.8"
8mm
0.3"
RED
BLACK
positive / red / rosso
n.c.
1+
negative / black / nero
1-
n.c.
Loudspeaker Line Losses (maximum permissible line lengths for 0.5dB losses, voltage or spl)
4 ohm load 8 ohm load Wire section data PROEL recommended cables
feet meter feet meter mm AWG 2 wires 2 Fire-resistant
75 25 150 50 4.0 12 HPC624 HPC624FR
50 17.5 100 35 2.0 14 HPC620 HPC520
30 10 60 20 1.5 16 HPC610 HPC510
20 7.5 40 15 1.0 18 HPC605
this is a short extraction of the wide assortment of cables available from PROEL, please visit our
website at www.proelgroup.com
Perdite di collegamento (massima lunghezza per perdite inferiori a 0.5dB, tensione o spl)
carico 4 ohm carico 8 ohm Sezione del Cavo Cavi raccomandati PROEL
metri feet metri meter mm AWG 2  li 2  li res. al fuoco
25 75 50 150 4.0 12 HPC624 HPC624FR
17,5 50 35 100 2.0 14 HPC620 HPC520
10 30 20 60 1.5 16 HPC610 HPC510
7,5 20 15 40 1.0 18 HPC605
questo è un breve estratto del vasto assortimento di cavi disponibile da PROEL, vi preghiamo di
visitare il nostro sito web all'indirizzo www.proelgroup.com
FLASH8P - CONNESSIONI

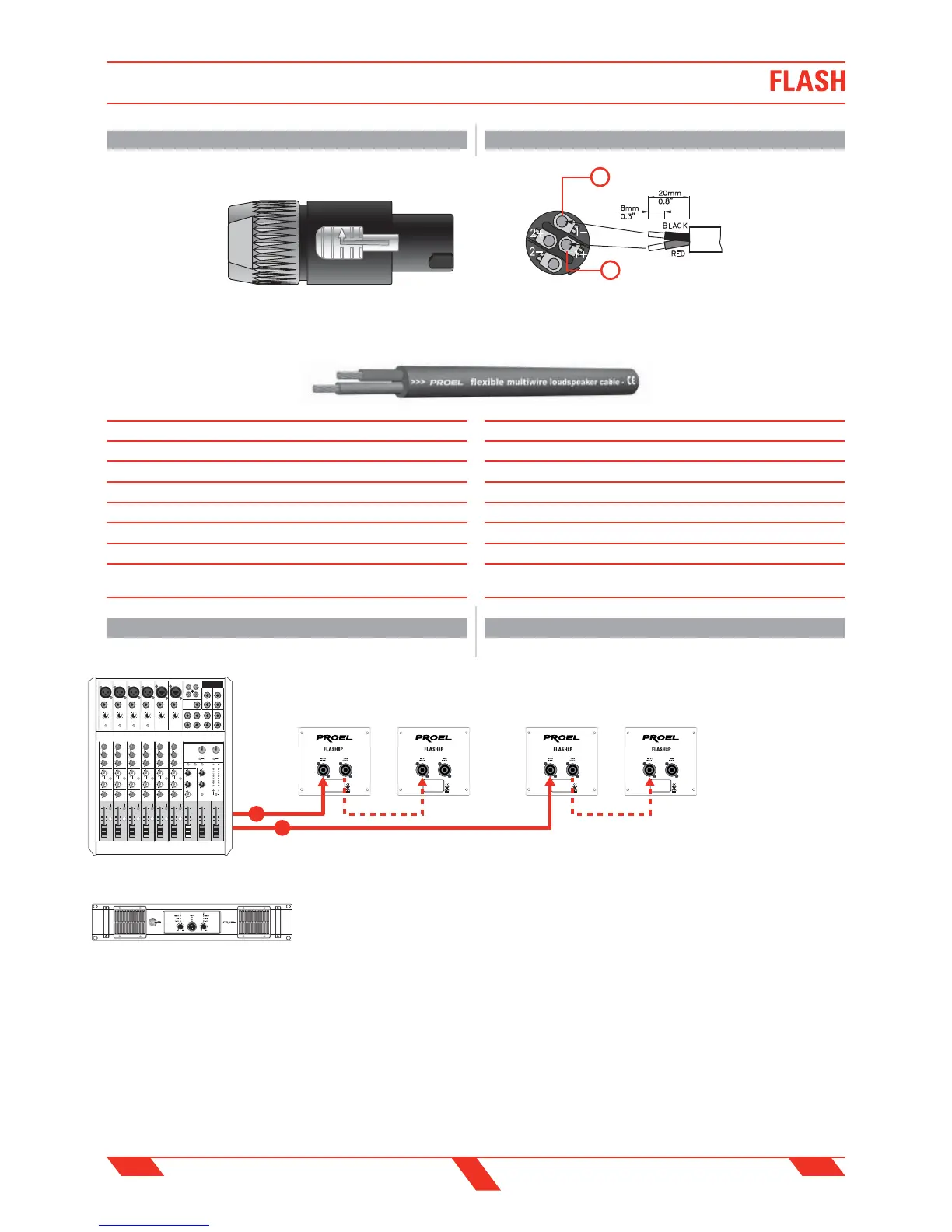

FLASH8P - ESEMPI DI CONNESSIONEFLASH8P - CONNECTION EXAMPLES
PROEL suggested equipment:
M-500USB amplied mixer OR HP-A450 power amplier
FLASH8P
(8 ohm)
stereo basic system
FLASH8P
(8 ohm)
optional reinforcement
FLASH8P
(8 ohm)
stereo basic system
RIGHTLEFT
FLASH8P
(8 ohm)
optional reinforcement
basic system
2x FLASH8P
150W x2 (300W)
+ reinforcement
4x FLASH8P
150W x4 (600W)
R
L
FLASH8P - CONNECTIONS AND EXAMPLES
FLASH8P - CONNESSIONI ED ESEMPI
