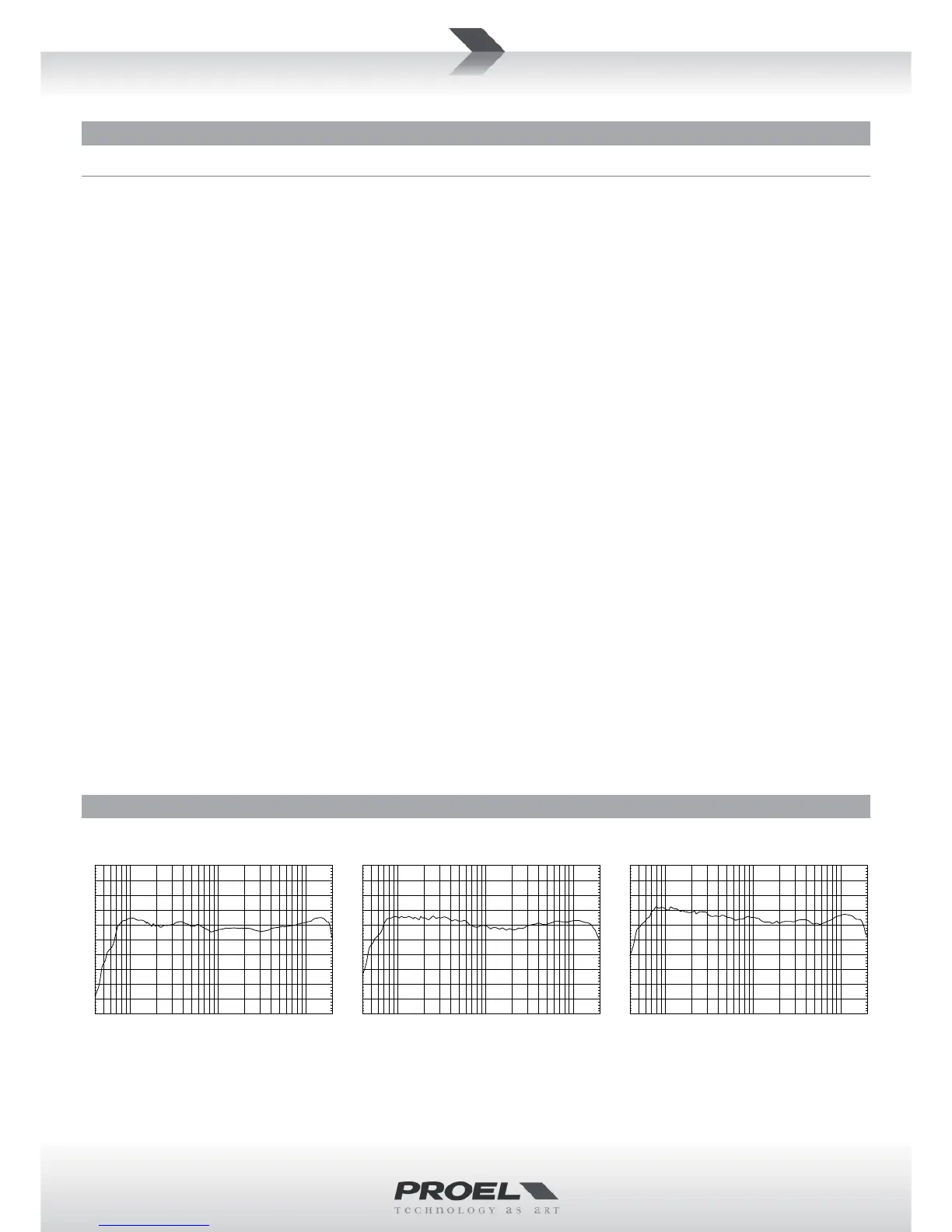

FREQUENCY RESPONSE RISPOSTA IN FREQUENZA
V12AV10A V15A
MODEL V10A V12A V15A
System type 2-way vented enclosure 2-way vented enclosure 2-way vented enclosure
High Frequency Device 1’’ neodymium compression driver 1’’ neodymium compression driver 1’’ neodymium compression driver
Low Frequency Device 10” woofer with 2"VC 12” woofer with 2.5"VC 15” woofer with 2.5"VC
Angular Coverage 90° H x 60° V 90° H x 60° V 90° H x 60° V
Total peak power 600 W 600 W 600 W
HF Amplifi er Cont. Power 50 W Class AB 50 W Class AB 50 W Classe AB
LF Amplifi er Cont. Power 250 W Class D 250 W Class D 250 W Classe D
Power Supply type SMPS SMPS SMPS
Frequency Response 60 Hz - 20 kHz 50 Hz - 20 kHz 45 Hz - 20 kHz
Processing Analog Analog Analog
Max SPL at 1mt (peak) 123 dBspl 124 dBspl 126 dBspl
Crossover Frequency 2000 Hz 2000 Hz 2000 Hz
Input Impedance 30 kohm balanced
15 kohm unbalanced
30 kohm balanced
15 kohm unbalanced
30 kohm bilanciato
15 kohm sbilanciato
Input Sensi vity LINE: +4 dBu / MIC: +34 dBu LINE: +4 dBu / MIC: +34 dBu LINE: +4 dBu / MIC: +34 dBu
Controls MIC/LINE selector, LEVEL, LOW EQ, HIGH
EQ, GND li , FRONT LED selector.
MIC/LINE selector, LEVEL, LOW EQ, HIGH
EQ, GND li , FRONT LED selector.
MIC/LINE selector, LEVEL, LOW EQ,
HIGH EQ, GND li , FRONT LED selector.
Connectors MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
MIC/LINE: Combo XLR-F / JACK
LINK: XLR-M
Power Supply 230 V~ or 120 V~ - 50/60 Hz 230 V~ or 120 V~ - 50/60 Hz 230 V~ or 120 V~ - 50/60 Hz
Rated Consump on 300 W 300 W 300 W
Construc on Polypropylene Polypropylene Polypropylene
Cabinet Colour Black Black Black
Flying System 4 x M10 top/bo om 4 x M10 top/bo om 4 x M10 top/bo om
Handles 1 x top 1 x top 1 x top, 2 x sides
Moun ng Pole 1 x bo om 1 x bo om 1 x bo om
Monitor taper 45° 44° 44°
Weight 10 Kg (22 lb) 13 Kg (28.6 lb) 18 Kg (39.7 lb)
Dimensions (W x H x D) 330 x 512 x 280 mm 380 x 600 x 328 mm 440 x 712 x 400 mm
TECHNICAL SPECIFICATIONS
SPECIFICHE TECNICHE
10k5k2k1k5002001005040 20kHz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k5k2k1k5002001005040 20kHz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
10k5k2k1k5002001005040 20kHz
120.0
dBSPL
110.0
100.0
90.0
80.0
70.0
