Rev.20170601 V1.0E HPC INSTALLATION & OPERATION MANUAL 3

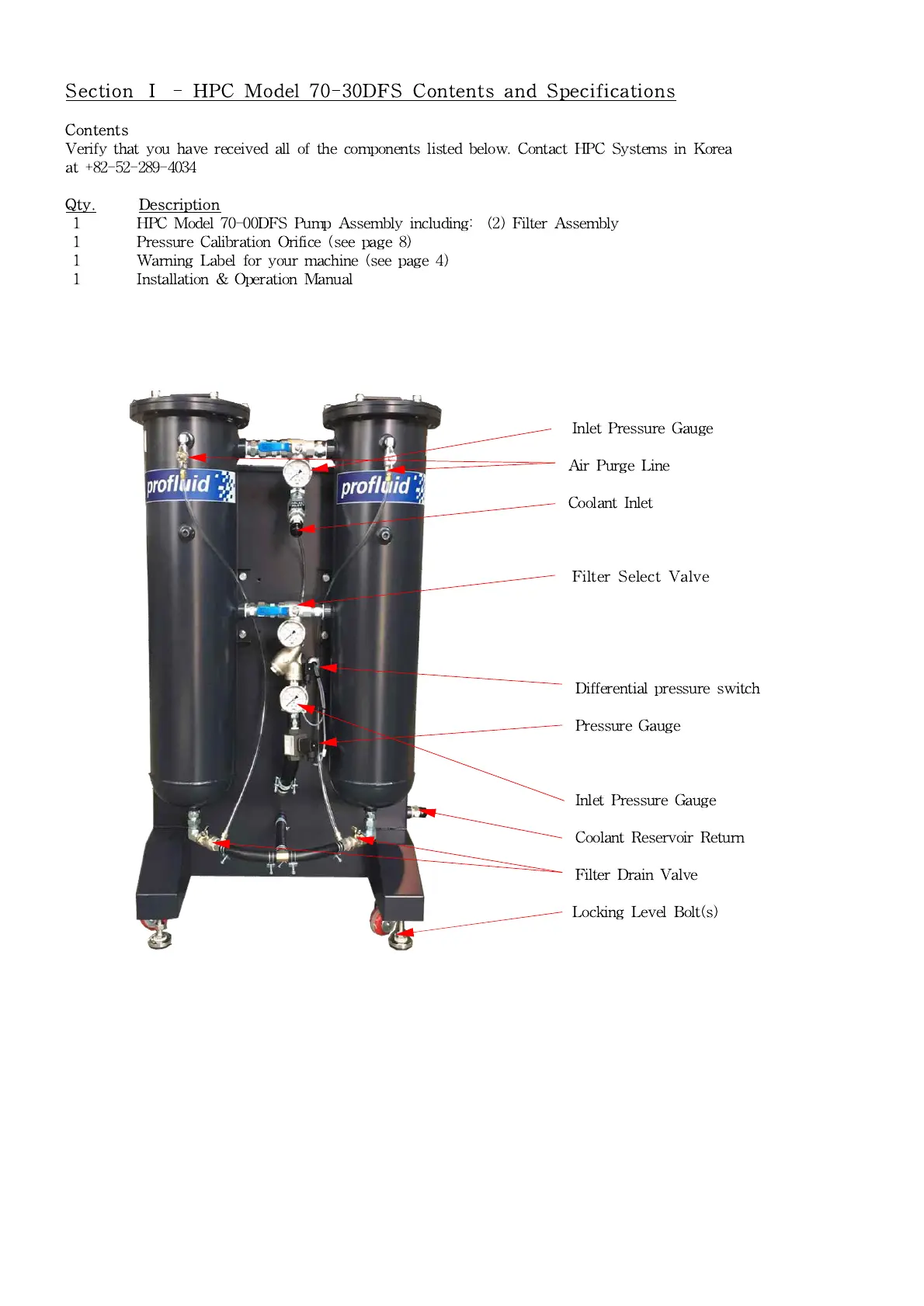

Section Ⅰ - HPC Model 70-30DFS Contents and Specifications
Contents
Verify that you have received all of the components listed below. Contact HPC Systems in Korea
at +82-52-289-4034
Qty. Description
1 HPC Model 70-00DFS Pump Assembly including: (2) Filter Assembly
1 Pressure Calibration Orifice (see page 8)
1 Warning Label for your machine (see page 4)
1 Installation & Operation Manual
Inlet Pressure Gauge
Air Purge Line
Coolant Inlet
Filter Select Valve
Differential pressure switch
Pressure Gauge
Inlet Pressure Gauge
Coolant Reservoir Return
Filter Drain Valve
Locking Level Bolt(s)
