6
2. While another person lifts the back of the Frame (1),
attach the other Stabilizer (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10
Nylon Locknuts (33).
34
9
1
2
33
33
3. The Console (23) requires four 1.5V “D” batteries
(not included); alkaline batteries are recommended.
IMPORTANT: If the elliptical exerciser has been
exposed to cold temperatures, allow it to warm
to room temperature before inserting batteries
into the Console. If you do not do this, the con-
sole displays or other electronic components
may become damaged. Remove the battery cover
from the Console, and insert four batteries into the
Console. Make sure that the batteries are orient-
ed as shown by the markings on the battery
cover. Then, reattach the battery cover.
23
Batteries
Batteries
Battery
Cover
3
4. While another person holds the Console (23) in the
position shown, connect the console wire to the
Extension Wire (68).
Attach the Console (23) to the Upright (2) with the
four Console Screws (59) included with the
Console. Be careful to avoid pinching the wires.
Attach the Water Bottle Holder (29) to the Upright
(2) with two M4 x 22mm Screws (63).
4
23
2
59
Console Wire
29
63
68

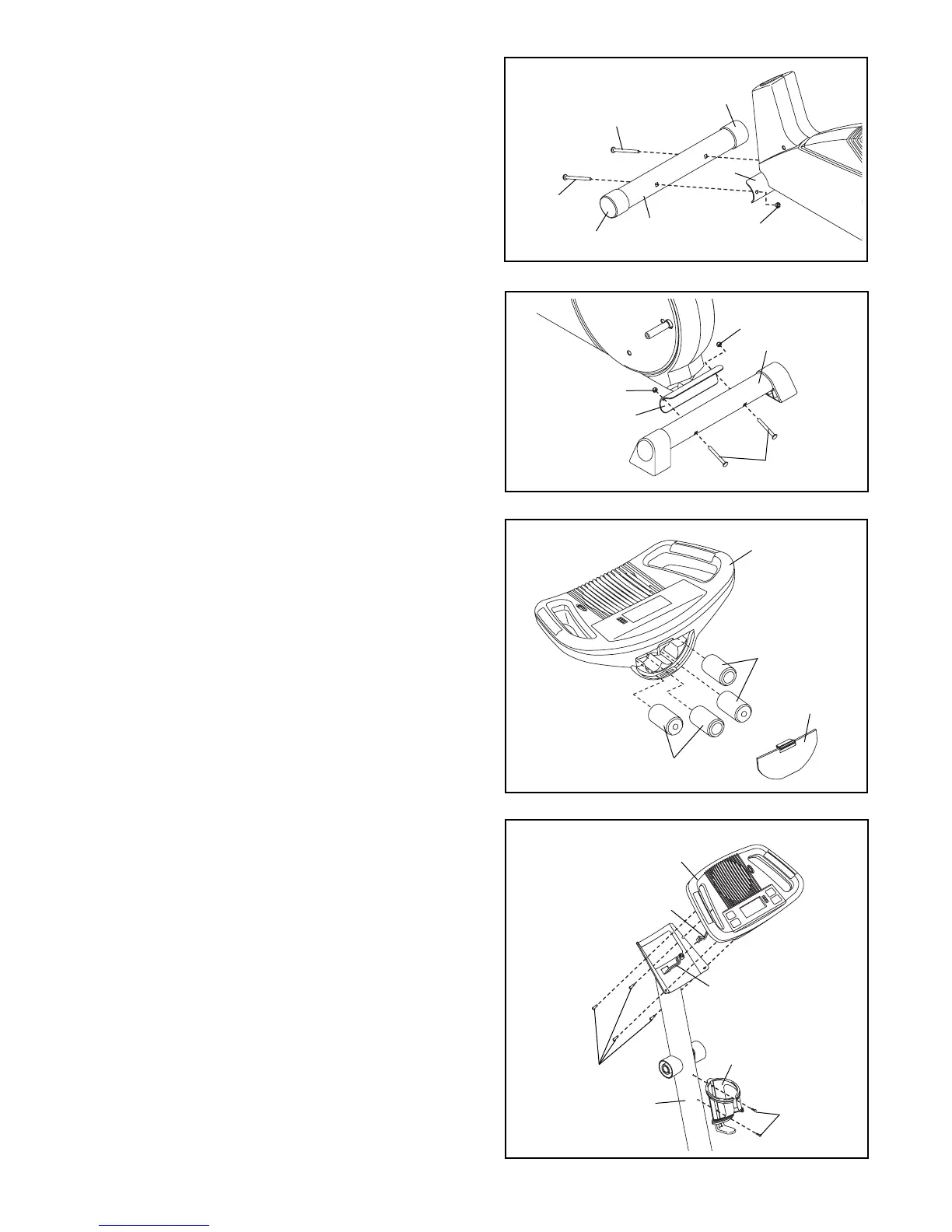

1. Identify the Stabilizer (9) which has round Endcaps
(21) on the ends. While another person lifts the front
of the Frame (1), attach the Stabilizer to the Frame
with two M10 x 75mm Carriage Bolts (34) and two
M10 Nylon Locknuts (33).
9
33
21
21
34
34
1
1
To Next Page
