15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt (see
pages 22 and 23).

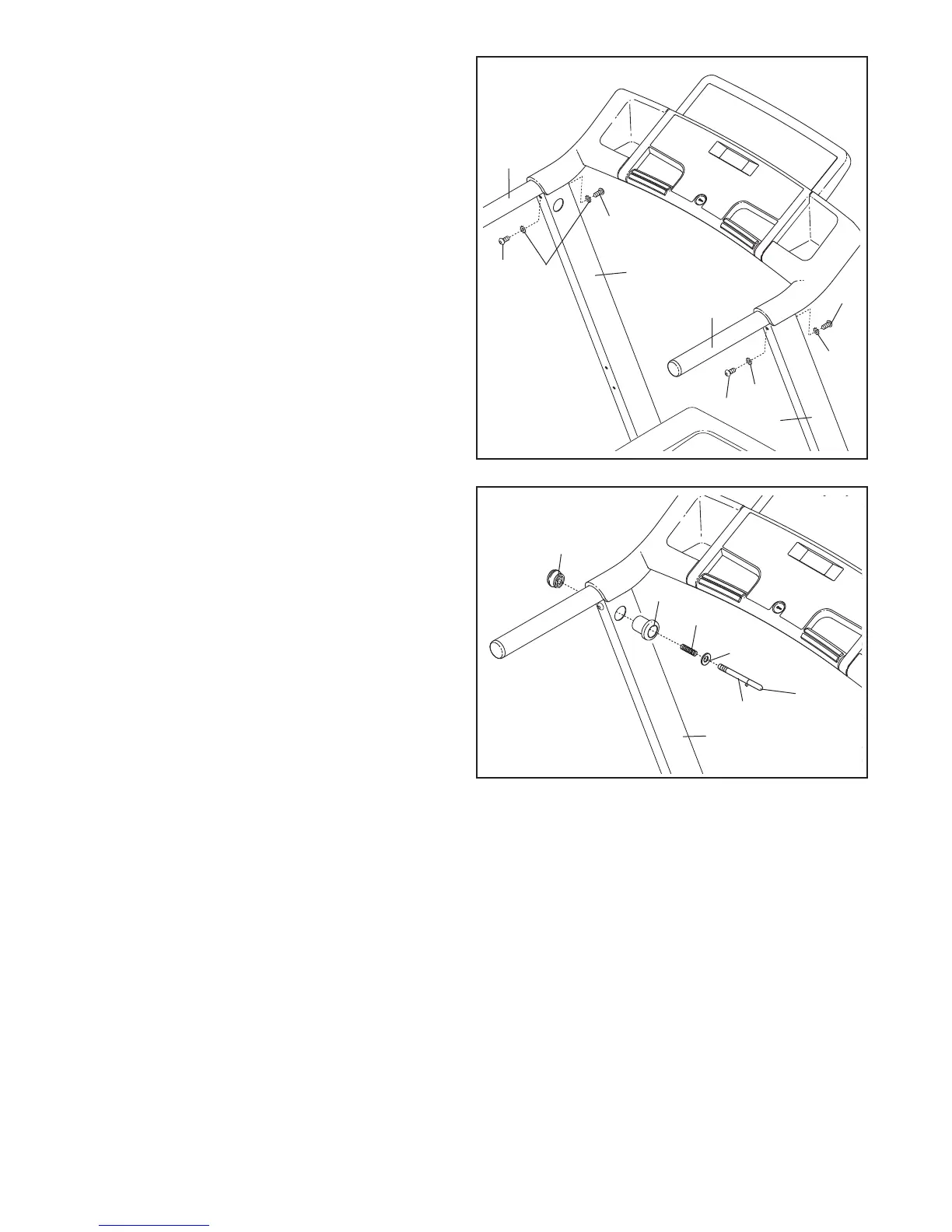

13. Partially tighten four M8 x 25mm Bolts (6) with
four M8 Star Washers (10) into the Uprights (73,
78) and the Handrails (89, 90). Then, tighten
a
ll four Handrail Bolts.
S
ee steps 5 and 8. Tighten the four M10 x
96mm Bolts (5).
6
6
6
10
73
10
6
10
89
90
78
1
3
14. Press the Latch Insert (70) into the Left Upright
(73). It may be necessary to tap on the Latch
Insert with a rubber mallet.
Locate the Latch Pin Assembly (72). Remove
the knob from the pin. Make sure that the collar
and the spring are on the pin. Insert the pin into
the Latch Insert (70), and tighten the knob back
onto the pin.
Knob
70
14
73
Spring
Pin
Collar
72
To Next Page
