6. Hold a Screw Spacer (14) inside the lower end
of the Left Upright (84). Insert a 3/8" x 4" Patch
Screw (7) with a 3/8" Star Washer (11) into the
Left Upright and the Screw Spacer. Repeat this
step with a second Screw Spacer (14), 3/8" x
4" Patch Screw (7), and 3/8" Star Washer
(11).
Hold the Left Upright Spacer (88) and the Left
Upright (84) against the Base (95). See inset
drawings B and C in step 3. Make sure that the
Left Upright Spacer sits flush against the
Base. If necessary, turn the Left Upright
Spacer and try again. Then, tighten the 3/8" x
4" Patch Screws (7) until the heads of the Patch
Screws touch the Left Upright; do not fully
tighten the Patch Screws yet.
With the help of a second person, tip the tread-
mill so that the Base (95) is flat on the floor.
88
84
7
95
14
11
6
9

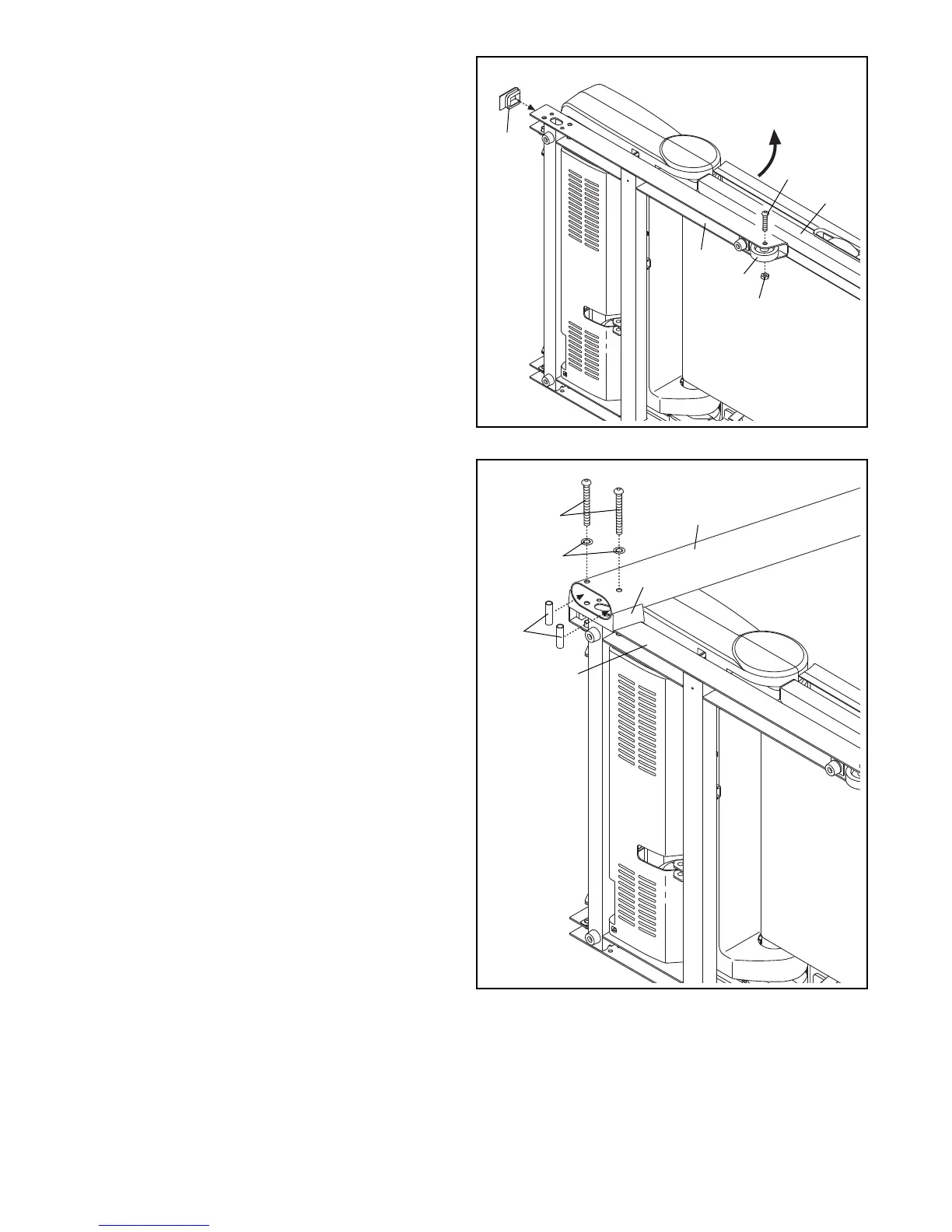

5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
d
o not fully fold the Frame yet.
A
ttach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Then, press a Base Cap (89) into the Base (95).
5
8
55
10
95
8
9
96
