8

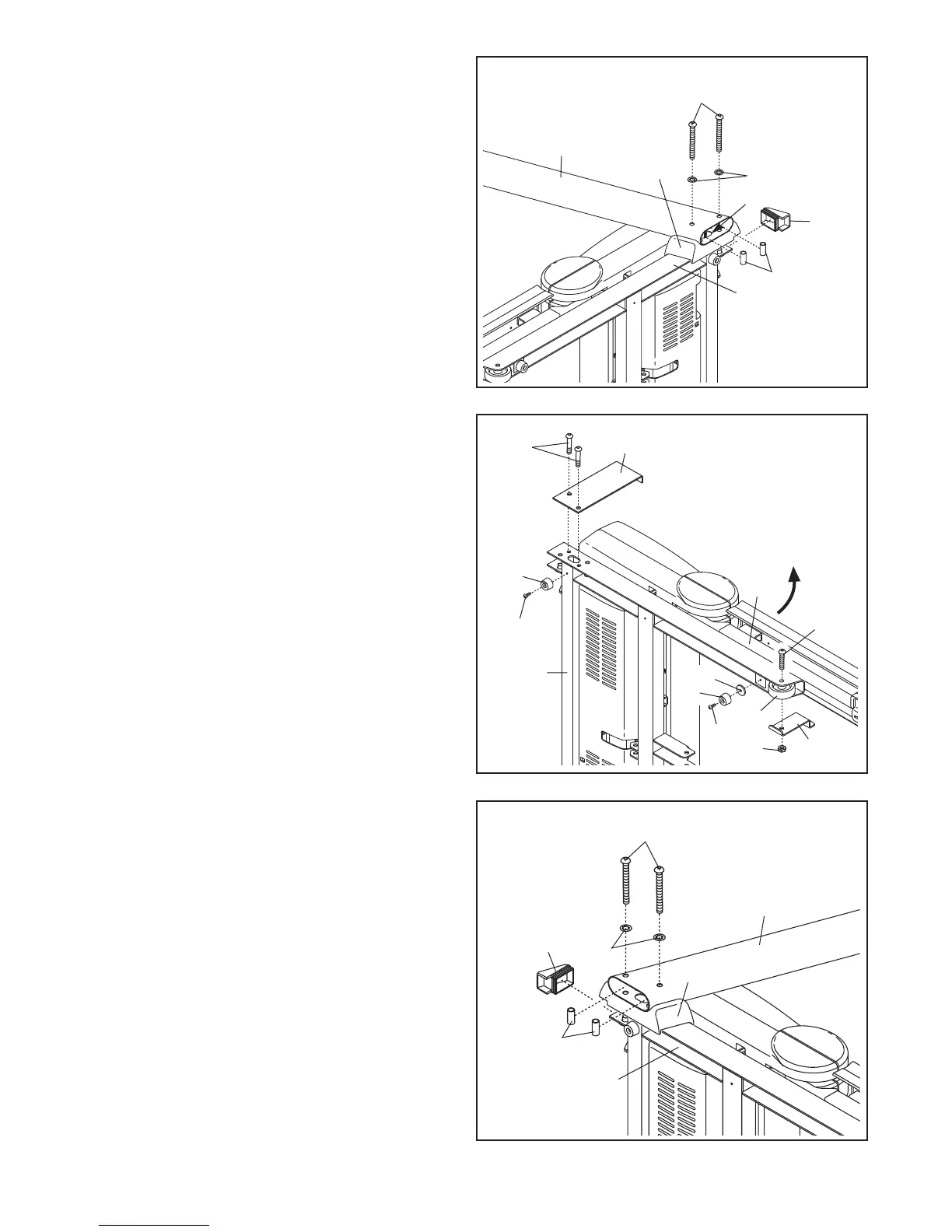

6. Set the Left Upright Spacer (76) on the Base
(83). With the help of a second person, hold a
Bolt Spacer (80) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a sec
-
ond Bolt Spacer (80), 3/8" x 4" Bolt (6), and
3/8" Star Washer (9). Set the Left Upright in the
Left Upright Spacer.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
77
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable;
do
not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
Attach a Wheel (84) with the Bolt and the Nut
that you just removed. Do not overtighten the
Nut; the Wheel must turn freely. Discard the
shipping bracket.
5
83
B
A
84
56
8
C
81
2
4
2
4. Set the Right Upright Spacer (79) on the Base
(
83).
M
ake sure the Upright Wire (38) is not
pinched.
With the help of a second person, hold
a Bolt Spacer (80) inside the lower end of the
Right Upright (78). Insert a 3/8" x 4" Bolt (6) with
a
3/8" Star Washer (9) into the Right Upright
and the Bolt Spacer.
Repeat this step with a
second Bolt Spacer (80), 3/8" x 4" Bolt (6),
and 3/8" Star Washer (9). Set the Right Upright
into the Right Upright Spacer.
Partially tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
79
7
8
77
6
4
38
9
9
83
80
81
13
80
