9
7. Orient the Crossbar (78) so that the indicated
bump is in the position shown. Attach the
Crossbar to the Left Upright (77) and the Right
Upright (79) with four 1/4" x 5/8" Bolts (7); do
not fully tighten the Bolts yet.
77
79
78
Bump
7
7
7
6. Hold a Bolt Spacer (84) inside the lower end of
the Left Upright (77). Insert a 3/8" x 4" Bolt (5)
with a 3/8" Star Washer (12) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (84), 3/8" x 4" Bolt
(5), and 3/8" Star Washer (12).
Hold the Left Upright Spacer (82) and the Left
Upright (77) against the Base (60). Tighten the
3/8" x 4" Bolts (5) until the heads of the Bolts
touch the Left Upright; do not fully tighten the
Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base is flat on the floor.
82
77
5
60
84
84
12
6

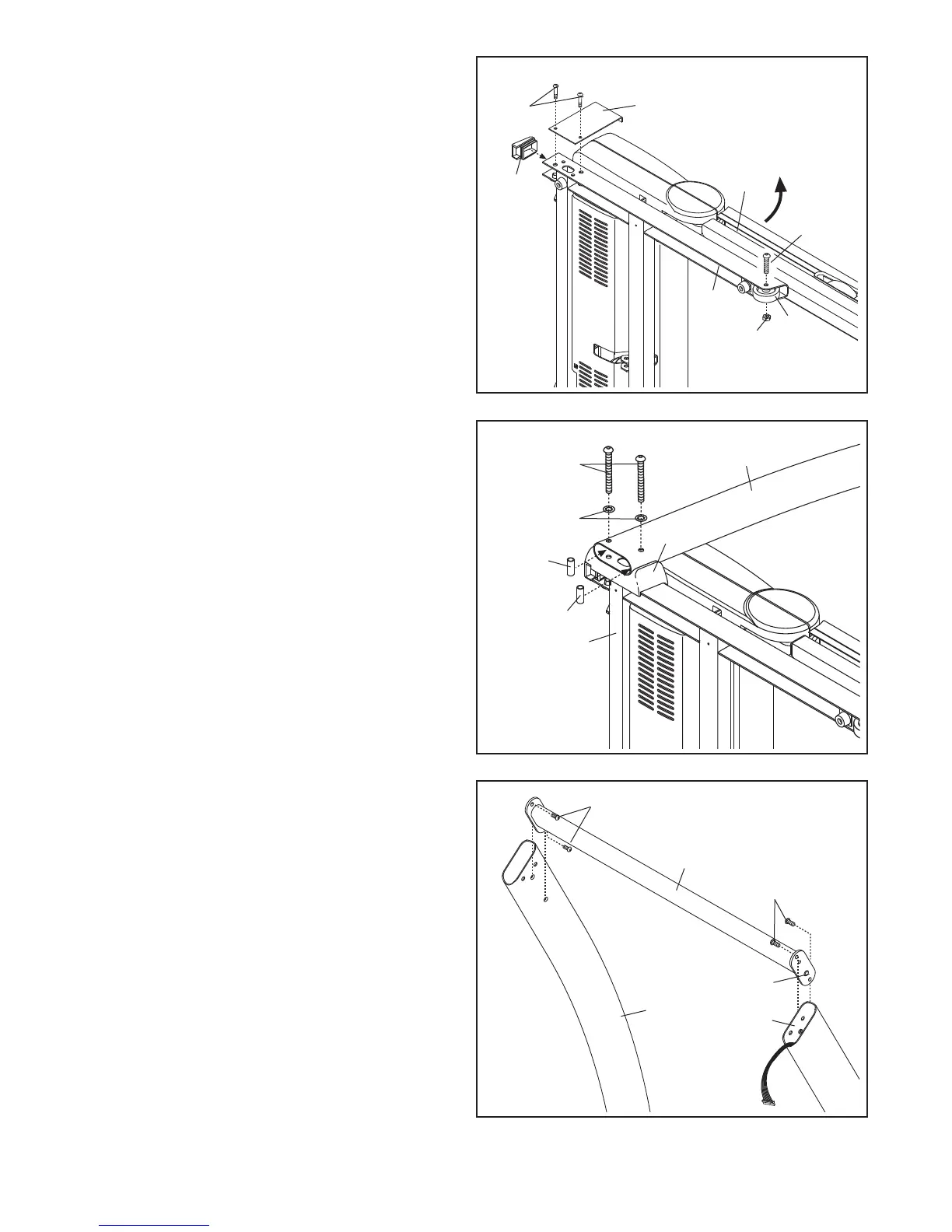

5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (53) so the treadmill is more stable; do
n
ot fully fold the Frame yet.
R
emove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Wheel (90) to the Base (60) with a 3/8"
x 2" Bolt (3) and a 3/8" Locknut (11). Do not
overtighten the Locknut; the Wheel must
turn freely.
Press a Base Cap (85) into the Base (60).
5
90
53
3
60
11
B
A
8
5
