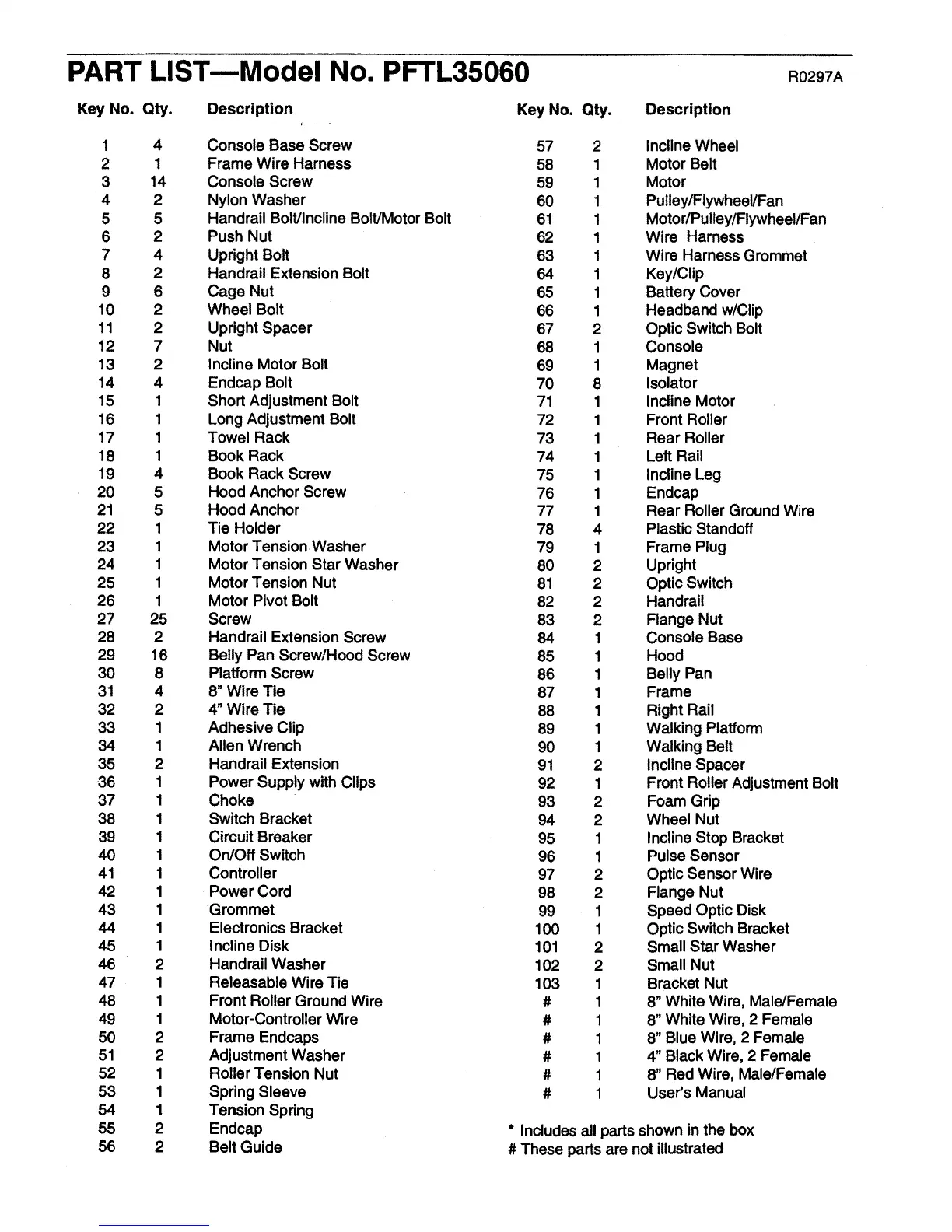

PART LIST---Model No. PFTL35060
R0297A
Key No. Qty. Description
1 4 Console Base Screw
2 1 Frame Wire Harness
3 14 Console Screw
4 2 Nylon Washer
5 5 Handrail Bolt/incline Bolt/Motor Bolt
6 2 Push Nut
7 4 Upright Bolt
8 2 Handrail Extension Bolt
9 6 Cage Nut
10 2 Wheel Bolt
11 2 Upright Spacer
12 7 Nut
13 2 Incline Motor Bolt
14 4 Endcap Bolt
15 1 Short Adjustment Bolt
16 1 Long Adjustment Bolt
17 1 Towel Rack
18 1 Book Rack
19 4 Book Rack Screw
20 5 Hood Anchor Screw
21 5 Hood Anchor
22 1 Tie Holder
23 1 Motor Tension Washer
24 1 Motor Tension Star Washer
25 1 Motor Tension Nut
26 1 Motor Pivot Bolt
27 25 Screw
28 2 Handrail Extension Screw
29 16 Belly Pan Screw/Hood Screw
30 8 Platform Screw
31 4 8" Wire Tie
32 2 4" Wire Tie
33 1 Adhesive Clip
34 1 Allen Wrench
35 2 Handrail Extension
36 1 Power Supply with Clips
37 1 Choke
38 1 Switch Bracket
39 1 Circuit Breaker
40 1 On/Off Switch
41 1 Controller
42 1 Power Cord
43 1 Grommet
44 1 Electronics Bracket
45 1 Incline Disk
46 2 Handrail Washer
47 1 Releasable Wire Tie
48 1 Front Roller Ground Wire
49 1 Motor-Controller Wire
50 2 Frame Endcaps
51 2 Adjustment Washer
52 1 Roller Tension Nut
53 1 Spring Sleeve
54 1 Tension Spring
55 2 Endcap
56 2 Belt Guide
Key No. Qty. Description
57 2 Incline Wheel
58 1 Motor Belt
59 1 Motor
60 1 Pulley/Flywheel/Fan
61 1 Motor/Pulley/Flywheel/Fan
62 1 Wire Harness
63 1 Wire Harness Grommet
64 1 Key/Clip
65 1 Battery Cover
66 1 Headband w/Clip
67 2 Optic Switch Bolt
68 1 Console
69 1 Magnet
70 8 Isolator
71 1 Incline Motor
72 1 Front Roller
73 1 Rear Roller
74 1 Left Rail
75 1 Incline Leg
76 1 Endcap
77 1 Rear Roller Ground Wire
78 4 Plastic Standoff
79 1 Frame Plug
80 2 Upright
81 2 Optic Switch
82 2 Handrail
83 2 Flange Nut
84 1 Console Base
85 1 Hood
86 1 Belly Pan
87 1 Frame
88 1 Right Rail
89 1 Walking Platform
90 1 Walking Belt
91 2 Incline Spacer
92 1 Front Roller Adjustment Bolt
93 2 Foam Grip
94 2 Wheel Nut
95 1 Incline Stop Bracket
96 1 Pulse Sensor
97 2 Optic Sensor Wire
98 2 Flange Nut
99 1 Speed Optic Disk
100 1 Optic Switch Bracket
101 2 Small Star Washer
102 2 Small Nut
103 1 Bracket Nut
# 1 8" White Wire, Male/Female
# 1 8" White Wire, 2 Female
# 1 8" Blue Wire, 2 Female
# 1 4" Black Wire, 2 Female
# 1 8" Red Wire, Male/Female
# 1 User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
To Next Page
