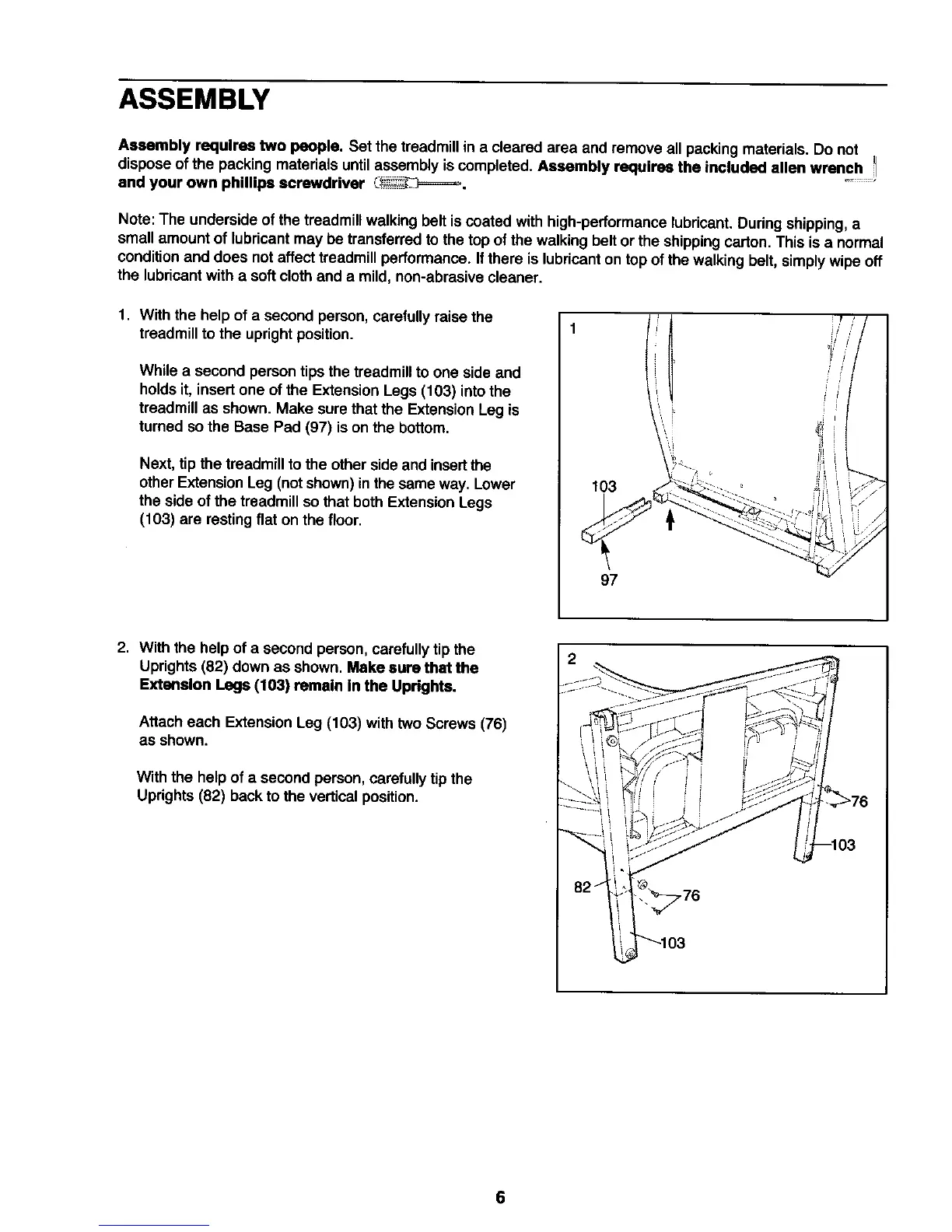

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose ofthe packing materials untilassembly is completed. Assembly requires the included allen wrench J/
and your own phillips screwdriver _:_===_.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping,a
small amount of lubricantmay be transferred to the top of the walking belt or the shippingcarton. This is a normal
conditionand does not affect treadmill performance. If there is lubricanton top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
treadmill to the uprightposition.
While a second person tips the treadmill to one side and
holds it, insert one of the Extension Legs (103) into the
treadmill as shown. Make sure that the Extension Leg is
turned sothe Base Pad (97) is on the bottom.
Next, tip the treadmill to the other sideand insertthe
otherExtensionLeg (not shown) in the same way. Lower
the side of the treadmill so that both Extension Legs
(103) are resting fiat on the floor.
103
97
2. With the help of a second person, carefully tip the
Uprights (82) down as shown. Make sure that the
Extonslon Legs (103) remain in the Uprights.
Attach each Extension Leg (103) with two Screws (76)
as shown.
With the help of a second person, carefullytip the
Uprights (82) back to the vertical position.
6
