9

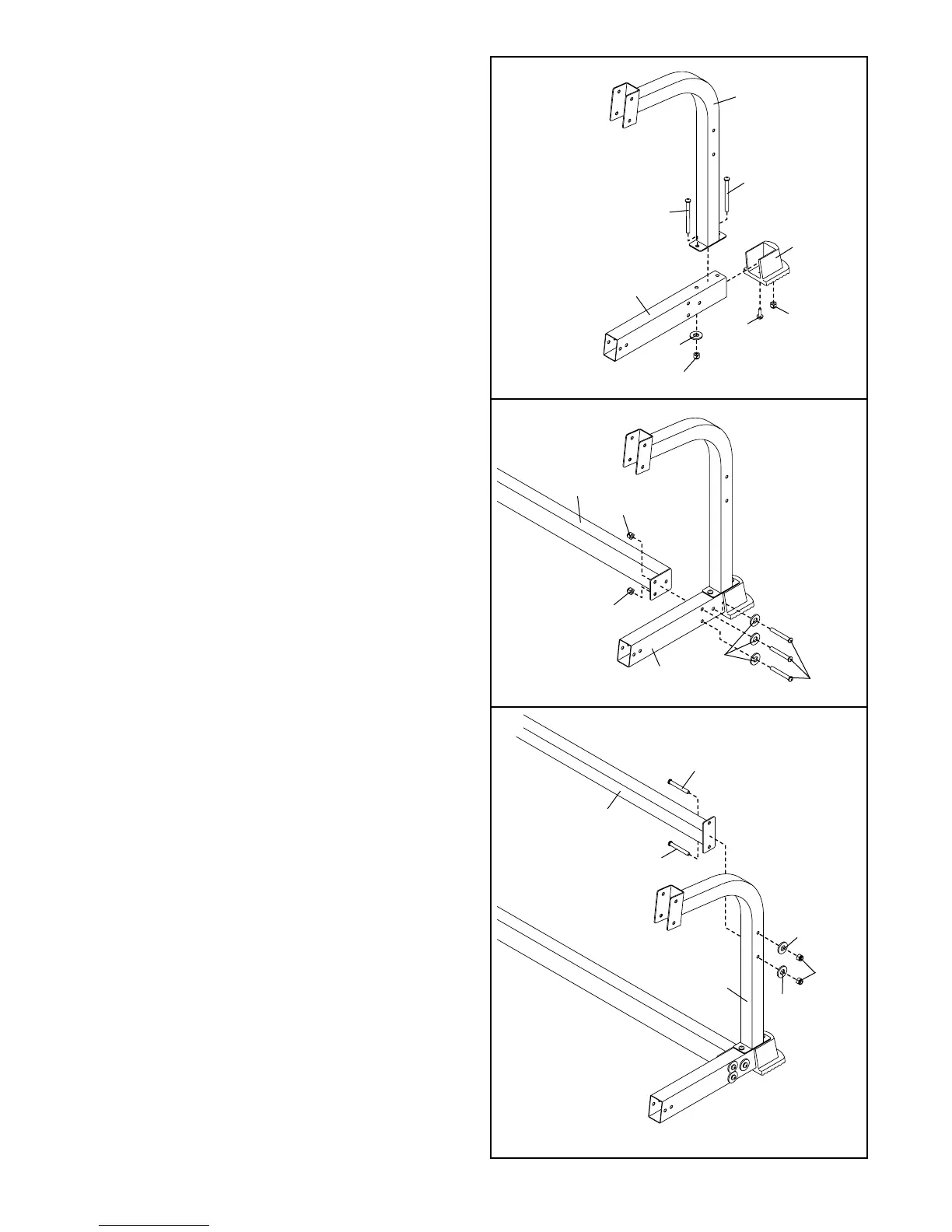

12. Attach a Base Cap (9) and a Rear Support (29) to
the a Base (28) with two M10 x 93mm Button
Bolts (48), an M10 Washer (67), an M10 Nylon
Locknut (69), an M10 Nylon Jamnut (26), and an
M4 x 16mm Screw (58).
Repeat this step with the other Base (28) and
Rear Support (29).
14. Attach the Crossbar (30) to a Rear Support (29)
with two M10 x 68mm Button Bolts (79), two M10
Washers (67), and two M10 Nylon Locknuts (69).
Do not tighten the Locknuts yet.
Attach the Crossbar (30) to the other Rear
Support (29) in the same manner.
13. Attach a Base (28) to the Center Base (27) with
three M10 x 68mm Button Bolts (79), three M10
Washers (67), and two M10 Nylon Locknuts (69).
Do not tighten the Locknuts yet.
Attach the other Base (28) to the Center Base
(27) in the same manner.
12
29
48
48
28
67
69
58
26
9
13
14
28
79
67
69
69
27
29
30
79
79
67
67
69
