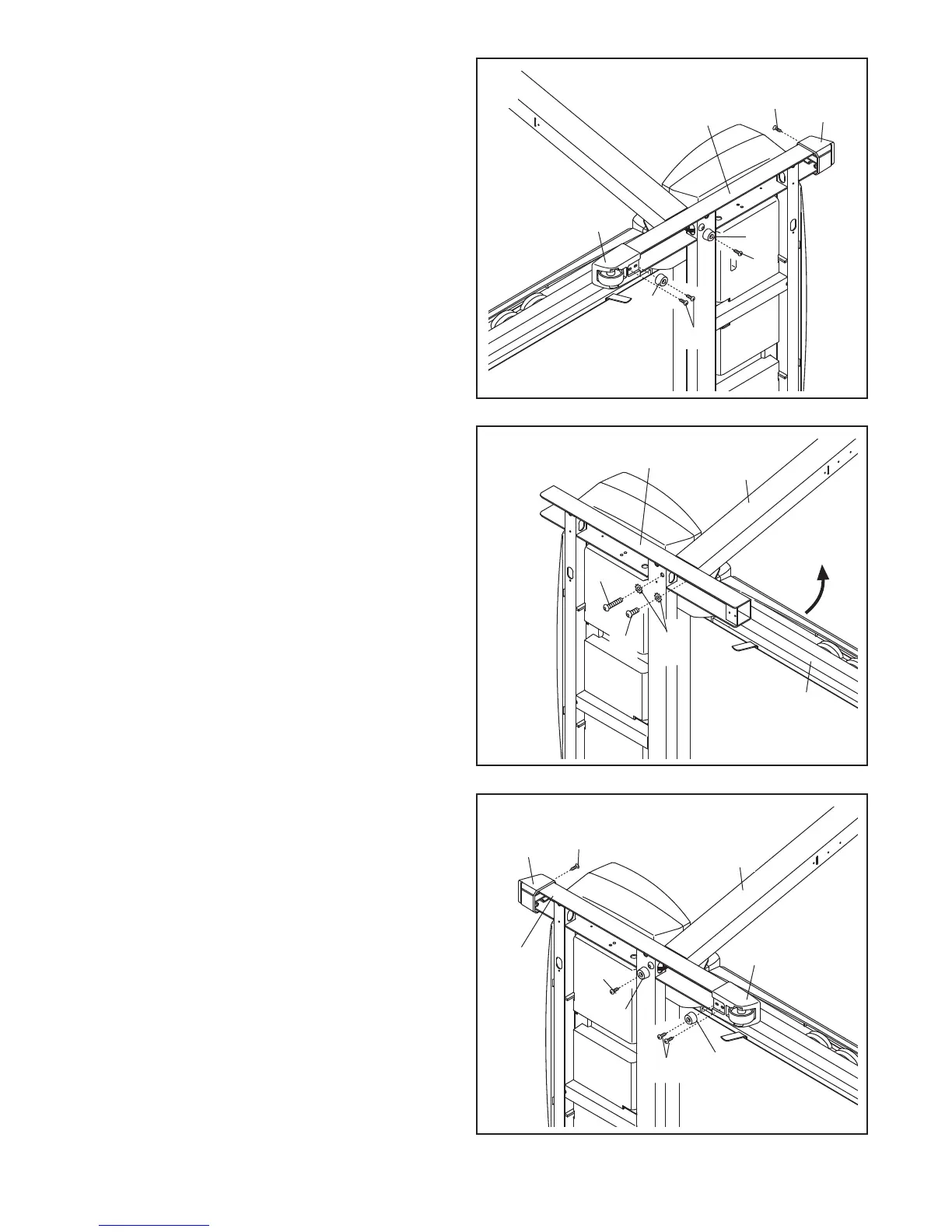

2. Slide a Front Endcap (80) onto the Base (81).
Partially tighten a Endcap Screw (108) into the
F
ront Endcap and the Base.
S
lide a Wheel Housing (86) onto the Base (81).
Attach the Wheel Housing with two 1” Tek
Screws (77) and a Base Pad (89) as shown.
Attach an additional Base Pad (89) to the Base
(81) with a 1” Tek Screw (77).
89
89
8
6
108
77
81
8
0
2
3. With the help of a second person, carefully tip
the treadmill onto its right side as shown.
Partially fold the Frame (26) so the treadmill is
more stable. Do not fully fold the treadmill
until it is completely assembled.
Hold the Left Upright (70) near the Base (81).
Thread a 2 3/4" Upright Bolt (85) and a 1” Upright
Bolt (84) with 3/8” Star Washers (83) into the bot-
tom of the Left Upright (70).
Do not tighten the
Bolts yet.
26
85
70
81
83
3
4. Slide a Front Endcap (80) onto the Base (81).
Partially tighten a Endcap Screw (108) into the
Front Endcap and the Base.
Slide a Wheel Housing (86) onto the Base (81).
Attach the Wheel Housing with two 1” Tek
Screws (77) and a Base Pad (89) as shown.
Attach an additional Base Pad (89) to the Base
(81) with a 1” Tek Screws (77).
86
77
80
84
108
89
89
4
77
84
77
81
