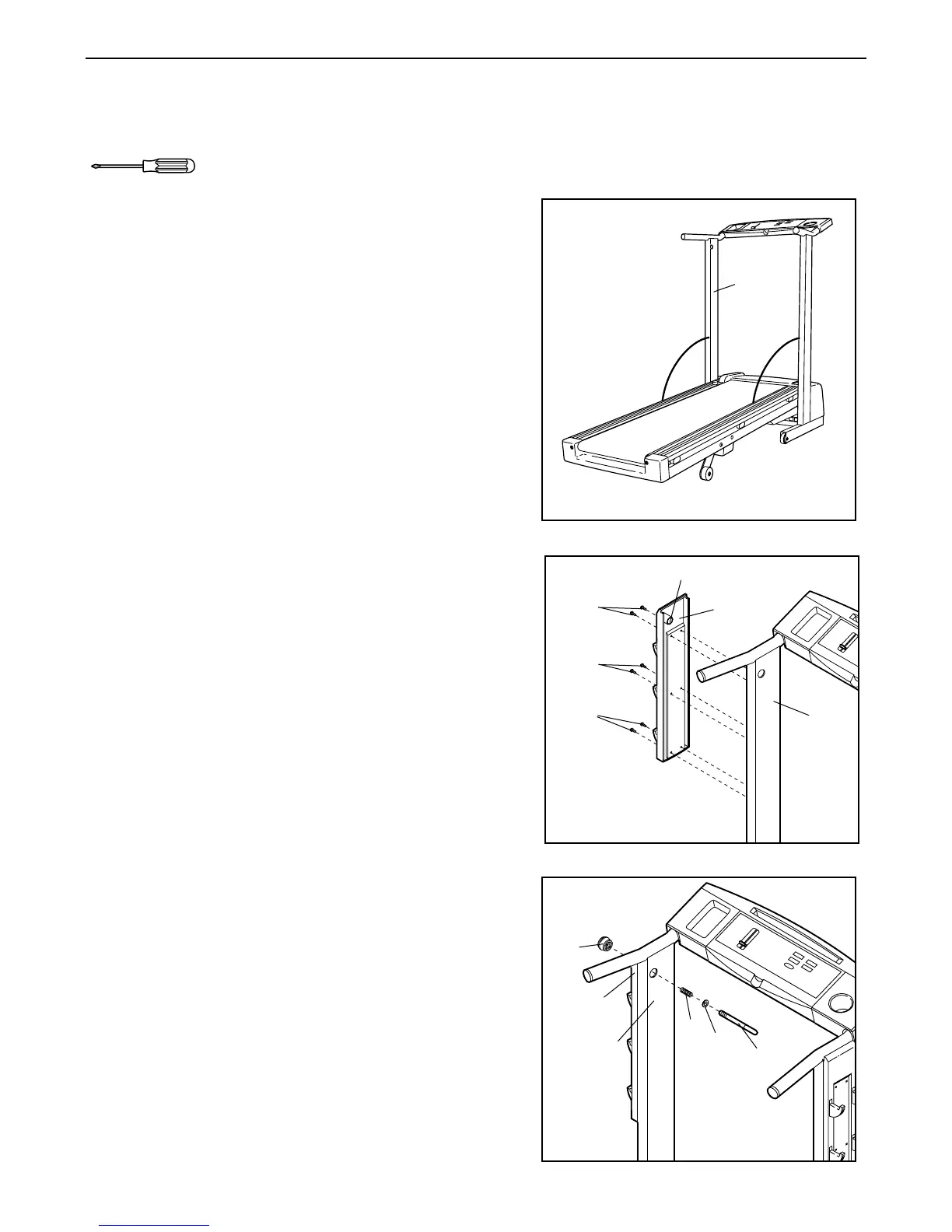

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires a phillips screwdriver
(not included).
1. With the help of a second person, carefully raise the
Uprights (102) until the CROSSTRAINER is in the posi-
tion shown at the right.
102
3. Slide the Lock Pin Collar (84) and the Spring (83) onto
the Lock Pin (87). Insert the Lock Pin into the left
Upright (102) and the Left Weight Rack (82). Tighten
the Treadmill Knob (78) onto the Lock Pin.
3
87
83
84
82
102
78
2. Locate the Left Weight Rack (82), which can be identi-
fied by the hole near the top. Attach the Left Weight
Rack to the left Upright (102) with six Weight Rack
Screws (77).
Attach the Right Weight Rack to the right Upright in the
same manner (not shown).
77
82
102
Hole
77
1
2
77
To Next Page
