7

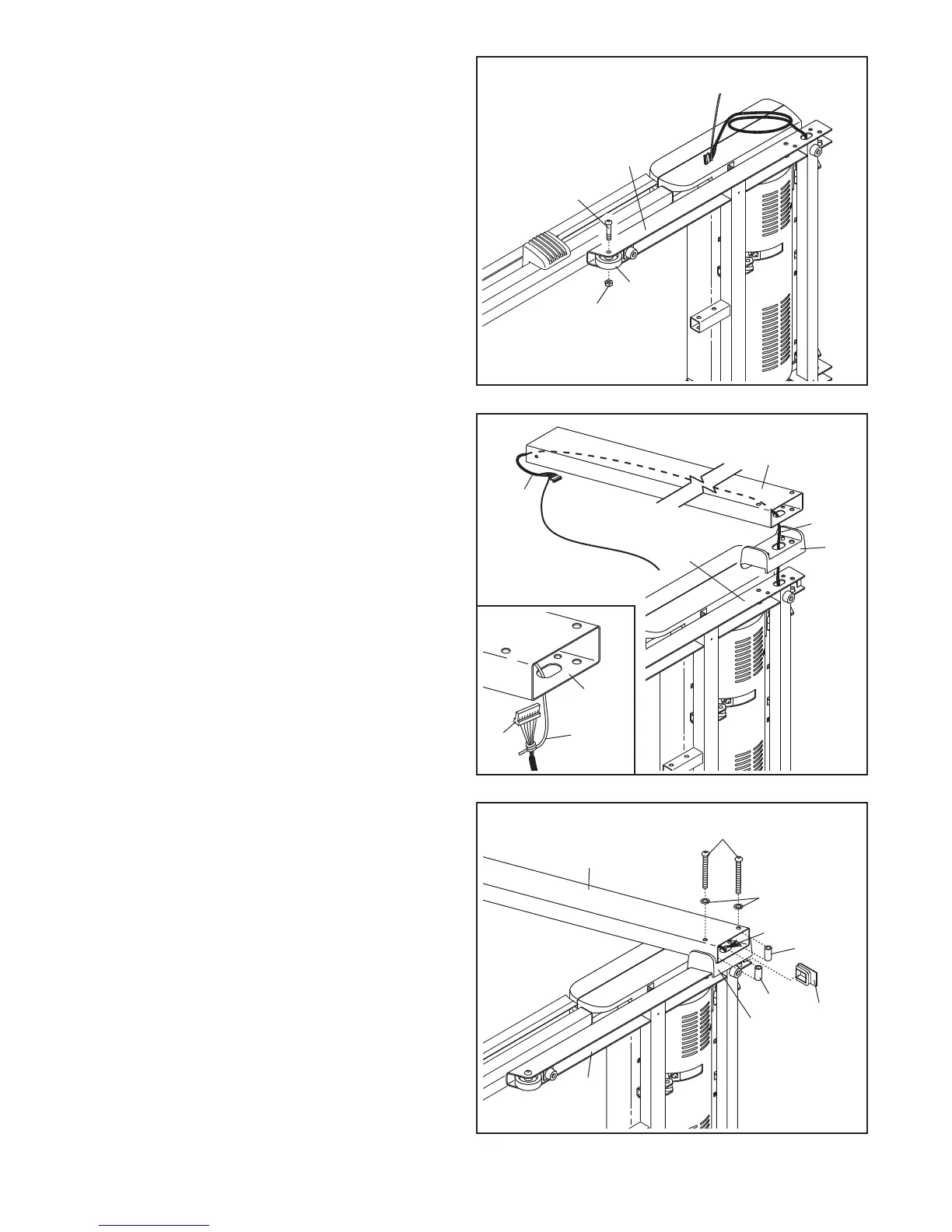

3. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (78) securely around the end of
the Upright Wire (38). With the help of a second
person, hold the Right Upright near the Base
(83). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Right Upright.
83
38
78
79
38
3
2
. Remove the 3/8" Nut (8) and the 3/8" x 2"
Shoulder Bolt (32) from the Base (83). Attach a
Wheel (84) with the Bolt and the Nut that you
just removed. Do not overtighten the Nut; the
Wheel must turn freely.
83
3
2
8
2
84
Wire
Tie
78
38
4. Hold a Bolt Spacer (80) inside the lower end of
the Right Upright (78). Insert a 3/8" x 4 1/2" Bolt
(6) with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (80), 3/8" x 4 1/2"
Bolt (6), and 3/8" Star Washer (9).
Hold the Right Upright Spacer (79) and the
Right Upright (78) against the Base (83).
Be
careful not to pinch the Upright Wire (38).
Partially tighten the 3/8" x 4 1/2" Bolts (6); do
not fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
79
78
38
9
77
80
80
6
4
83
