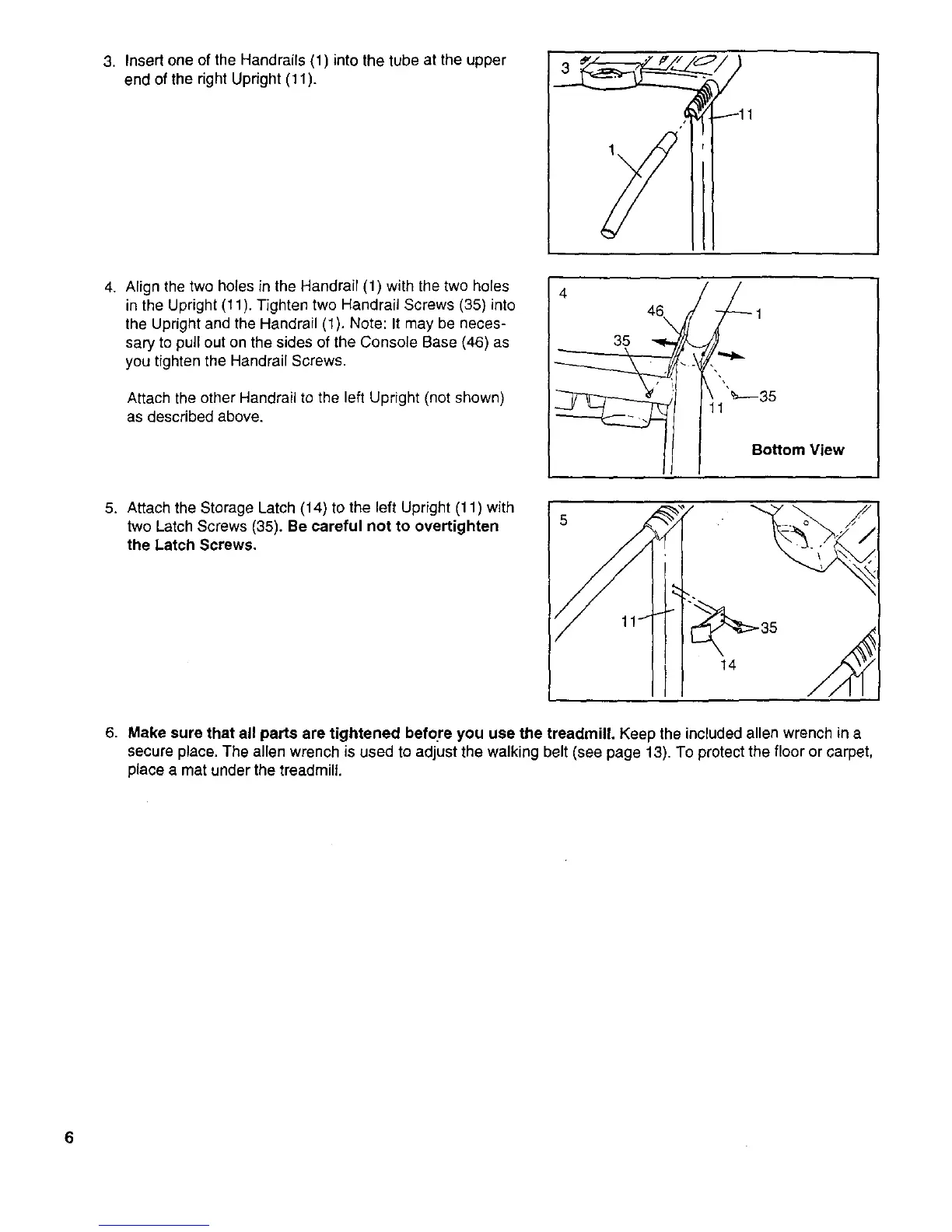

3. Insert one of the Handrails (1) into the tube at the upper
end of the right Upright (1I).
111
t\
4+ Align the two holes in the Handrail (1) with the two holes
in the Upright (11). Tighten two Handrail Screws (35) into
the Upright and the Handrail (1). Note: It may be neces-
sary to pull out on the sides of the Console Base (46) as
you tighten the Handrail Screws.
Attach the other Handrail to the left Upright (not shown)
as described above.
4
46\
35 -q
\ '"_,---35
11
Bottom View
5. Attach the Storage Latch (14) to the left Upright (11) with
two Latch Screws (35). Be careful not to overtighten
the Latch Screws.
5
14
6. Make sure that all parts are tightened befo.re you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
