10

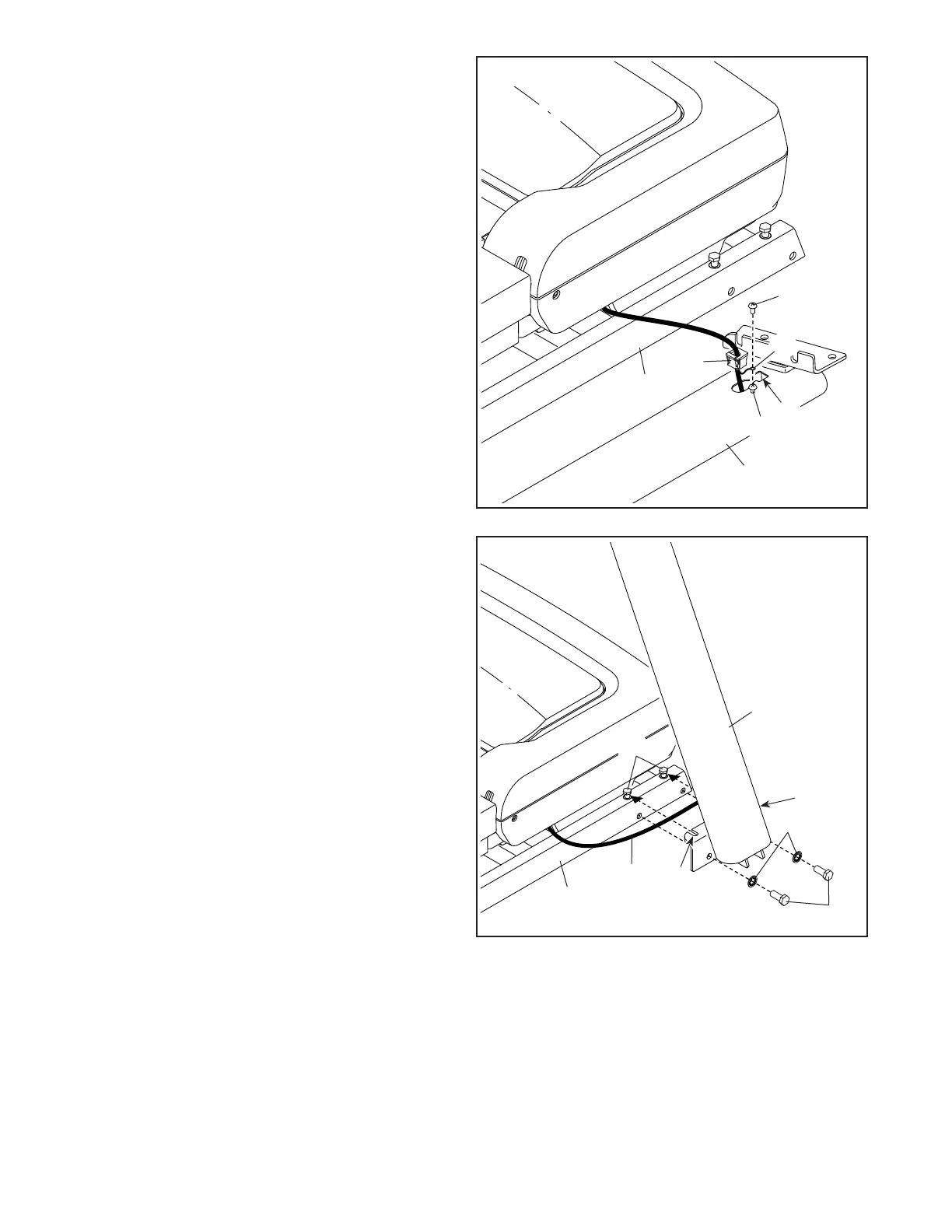

4. Lay the Right Upright (73) near the Upright Base
(81). Press the Grommet (68) into the square
hole (B) in the Right Upright. Do not pinch the
ground wire (C).
Next, remove and discard the indicated
screw (D).
Then, attach the ground wire (C) to the Right
Upright (73) with a #8 x 1/2" Washer Head
Screw (26).
81
73
26
68
4
5
3
E
81
5. Do not pinch the Upright Wire (74). Slide the
Right Upright (73) onto the Upright Base (81) so
that the two 3/8" x 3/4" Screws (4) in the Upright
Base are inserted into the slots (E) in the Right
Upright.
Attach the Right Upright (73) with two 3/8" x
1 1/4" Screws (3) and two 3/8" Star Washers (5)
as shown; do not fully tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There is not a wire on the left
side.
73
5
E
74
C
B
D
4
