13
10
84
6
2

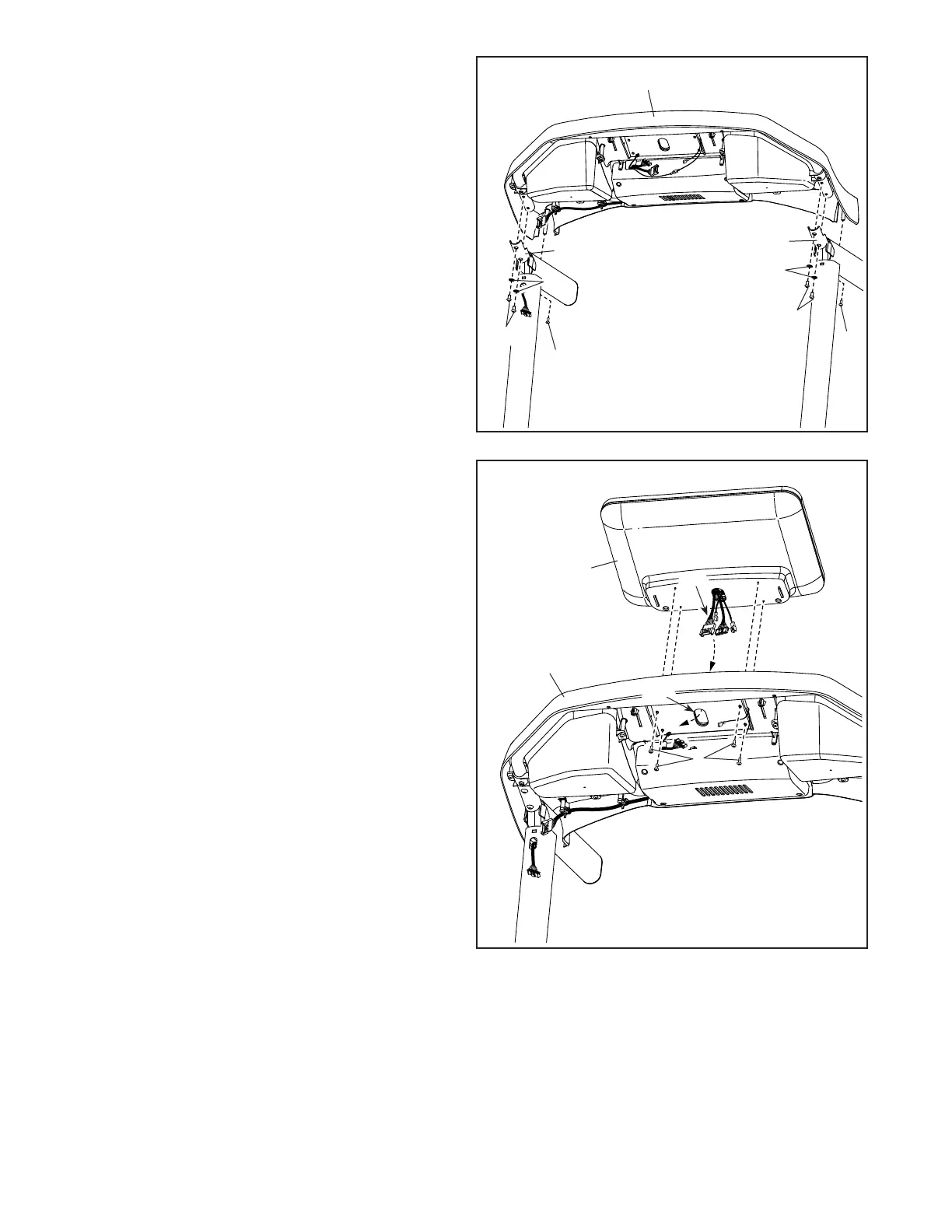

10. Set the Console Base (84) on the Handrails (69).
Attach the Console Base (84) with the four
5/16" x 5/8" Screws (2) that you removed in
step 9 and four 5/16" Star Washers (6); start all
four Screws, and then tighten them.
Then, tighten two #8 x 3/4" Screws (7) into the
Handrails (69) and into the Console Base (84).
Do not overtighten the Screws.
69
69
2
6
11
83
11. Do not pinch any wires during this step.
Hold the Console (83) near the Console Base
(84). Insert the console wires (F) into the
opening (G) in the Console Base as you set the
Console on the Console Base.
Attach the Console (83) with four #8 x 3/4"
Screws (7); start all four Screws, and then
tighten them. Do not overtighten the Screws.
84
7
F
7
7
G
To Next Page
