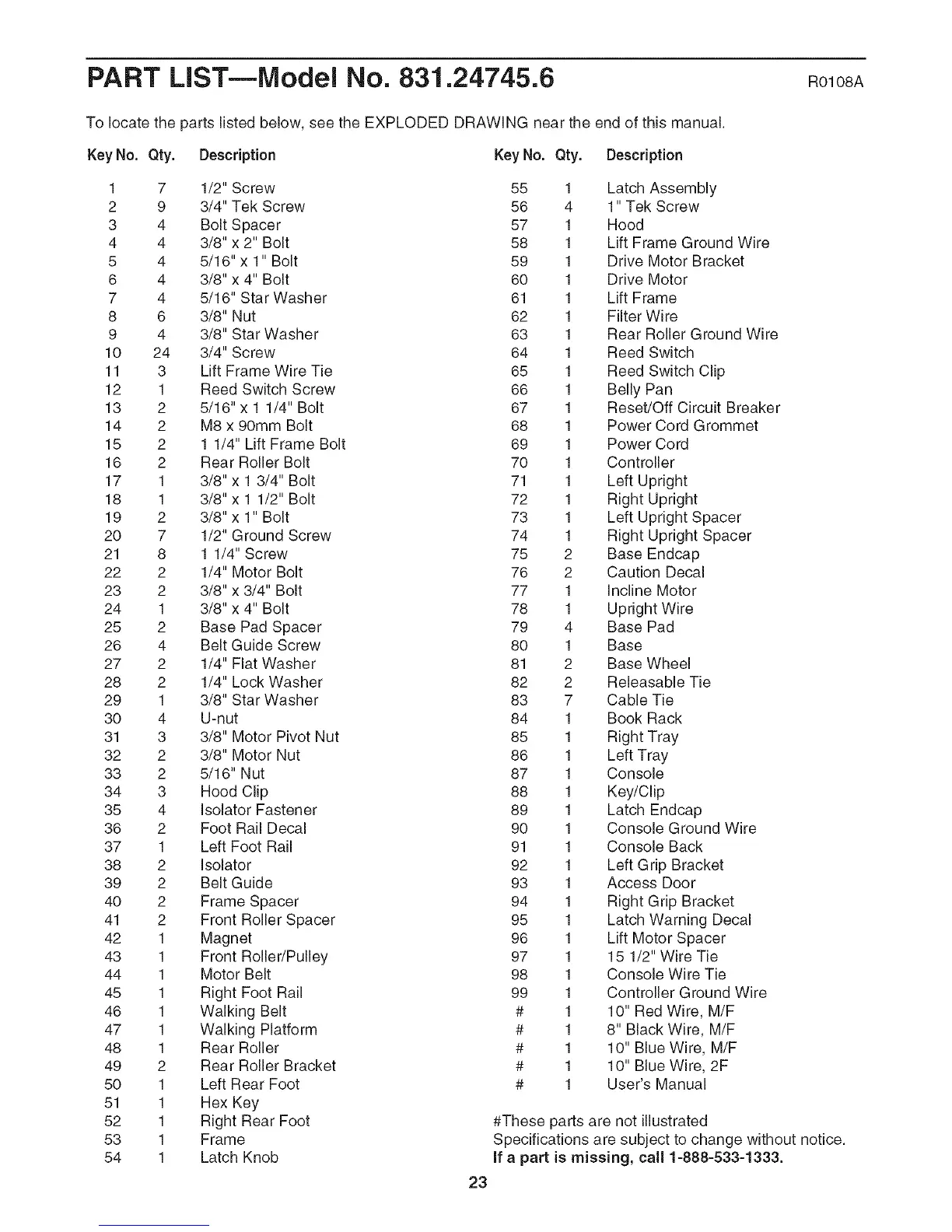

PART LiST--Model No. 831.24745.6 ROlO8A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 7 1/2" Screw 55
2 9 3/4" Tek Screw 56
3 4 Bolt Spacer 57
4 4 3/8" x 2" Bolt 58
5 4 5/16"x 1" Bolt 59
6 4 3/8" x 4" Bolt 60
7 4 5/16" Star Washer 61
8 6 3/8" Nut 62
9 4 3/8" Star Washer 63
10 24 3/4" Screw 64
11 3 Lift Frame Wire Tie 65
12 1 Reed Switch Screw 66
13 2 5/16" x 1 1/4" Bolt 67
14 2 M8 x 90mm Bolt 68
15 2 1 1/4" Lift Frame Bolt 69
16 2 Rear Roller Bolt 70
17 1 3/8" x 1 3/4" Bolt 71
18 1 3/8" x 1 1/2" Bolt 72
19 2 3/8" x 1" Bolt 73
20 7 1/2" Ground Screw 74
21 8 1 1/4" Screw 75
22 2 1/4" Motor Bolt 76
23 2 3/8" x 3/4" Bolt 77
24 1 3/8" x 4" Bolt 78
25 2 Base Pad Spacer 79
26 4 Belt Guide Screw 80
27 2 1/4" Flat Washer 81
28 2 1/4" Lock Washer 82
29 1 3/8" Star Washer 83
30 4 U-nut 84
31 3 3/8" Motor Pivot Nut 85
32 2 3/8" Motor Nut 86
33 2 5/16" Nut 87
34 3 Hood Clip 88
35 4 Isolator Fastener 89
36 2 Foot Rail Decal 90
37 1 Left Foot Rail 91
38 2 isolator 92
39 2 Belt Guide 93
40 2 Frame Spacer 94
41 2 Front Roller Spacer 95
42 1 Magnet 96
43 1 Front Roller/Pulley 97
44 1 Motor Belt 98
45 1 Right Foot Rail 99
46 1 Walking Belt #
47 1 Walking Platform #
48 1 Rear Roller #
49 2 Rear Roller Bracket #
50 1 Left Rear Foot #
51 1 Hex Key
52 1 Right Rear Foot
53 1 Frame
54 1 Latch Knob
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
4
1
2
2
7
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Latch Assembly
1" Tek Screw
Hood
Lift Frame Ground Wire
Drive Motor Bracket
Drive Motor
Lift Frame
Filter Wire
Rear Roller Ground Wire
Reed Switch
Reed Switch Clip
Belly Pan
Reset/Off Circuit Breaker
Power Cord Grommet
Power Cord
Controller
Left Upright
Right Upright
Left Upright Spacer
Right Upright Spacer
Base Endcap
Caution Decal
incline Motor
Upright Wire
Base Pad
Base
Base Wheel
Releasable Tie
Cable Tie
Book Rack
Right Tray
Left Tray
Console
Key/Clip
Latch Endcap
Console Ground Wire
Console Back
Left Grip Bracket
Access Door
Right Grip Bracket
Latch Warning Decal
Lift Motor Spacer
15 1/2" Wire Tie
Console Wire Tie
Controller Ground Wire
10" Red Wire, M/F
8" Black Wire, M/F
10" Blue Wire, M/F
10" Blue Wire, 2F
User's Manual
23
#These parts are not illustrated
Specifications are subject to change without notice.
if a part is missing, call 1=888=533=1333.
