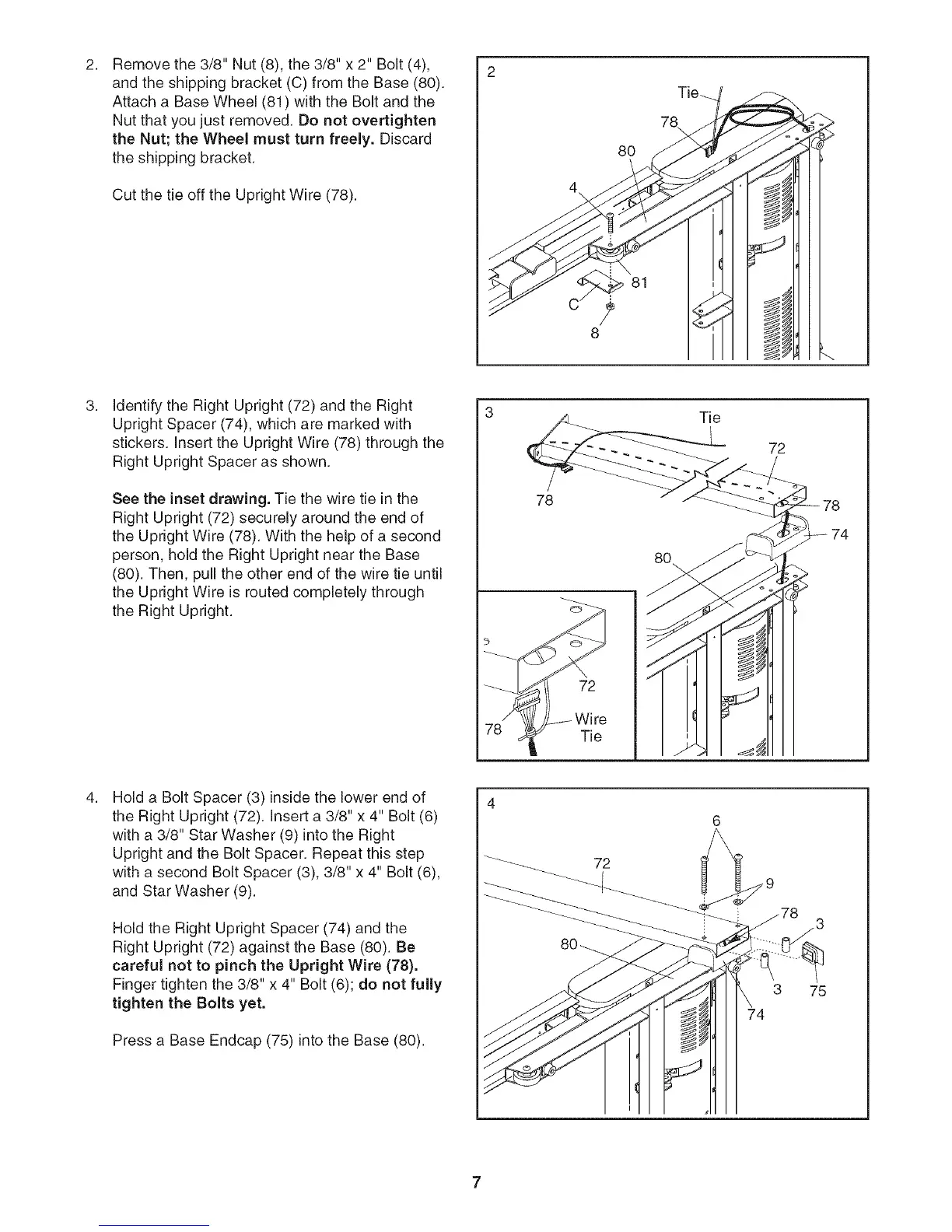

2. 2
Removethe3/8"Nut(8),the3/8"x2" Bolt(4),
andtheshippingbracket(C)fromtheBase(80).
Attacha BaseWheel(81)withtheBoltandthe
Nutthatyoujustremoved.Donot overtighten
theNut;theWheelmustturnfreely.Discard
theshippingbracket.
CutthetieofftheUprightWire(78).
80
81
8
IdentifytheRightUpright(72)andtheRight
UprightSpacer(74),whicharemarkedwith
stickers.InserttheUprightWire(78)throughthe
RightUprightSpacerasshown.
Seetheinsetdrawing.Tiethewiretieinthe
RightUpright(72)securelyaroundtheendof
theUprightWire(78).Withthehelpofa second
person,holdtheRightUprightneartheBase
(80).Then,pulltheotherendof thewiretieuntil
theUprightWireisroutedcompletelythrough
theRightUpright.
3 Tie
78
Tie
72
Holda BoltSpacer(3)insidethelowerendof
theRightUpright(72).Inserta3/8"x 4"Bolt(6)
witha 3/8"StarWasher(9)intotheRight
UprightandtheBoltSpacer.Repeatthisstep
witha secondBoltSpacer(3),3/8"x 4"Bolt(6),
andStarWasher(9).
HoldtheRightUprightSpacer(74)andthe
RightUpright(72)againsttheBase(80).Be
carefulnotto pinch the Upright Wire (78).
Finger tighten the 3/8" x 4" Bolt (6); do not fully
tighten the Bolts yet.
Press a Base Endcap (75) into the Base (80).
3 75
