Assembly and connection manual | Agrónic 2500
Connections | Connecting the outputs

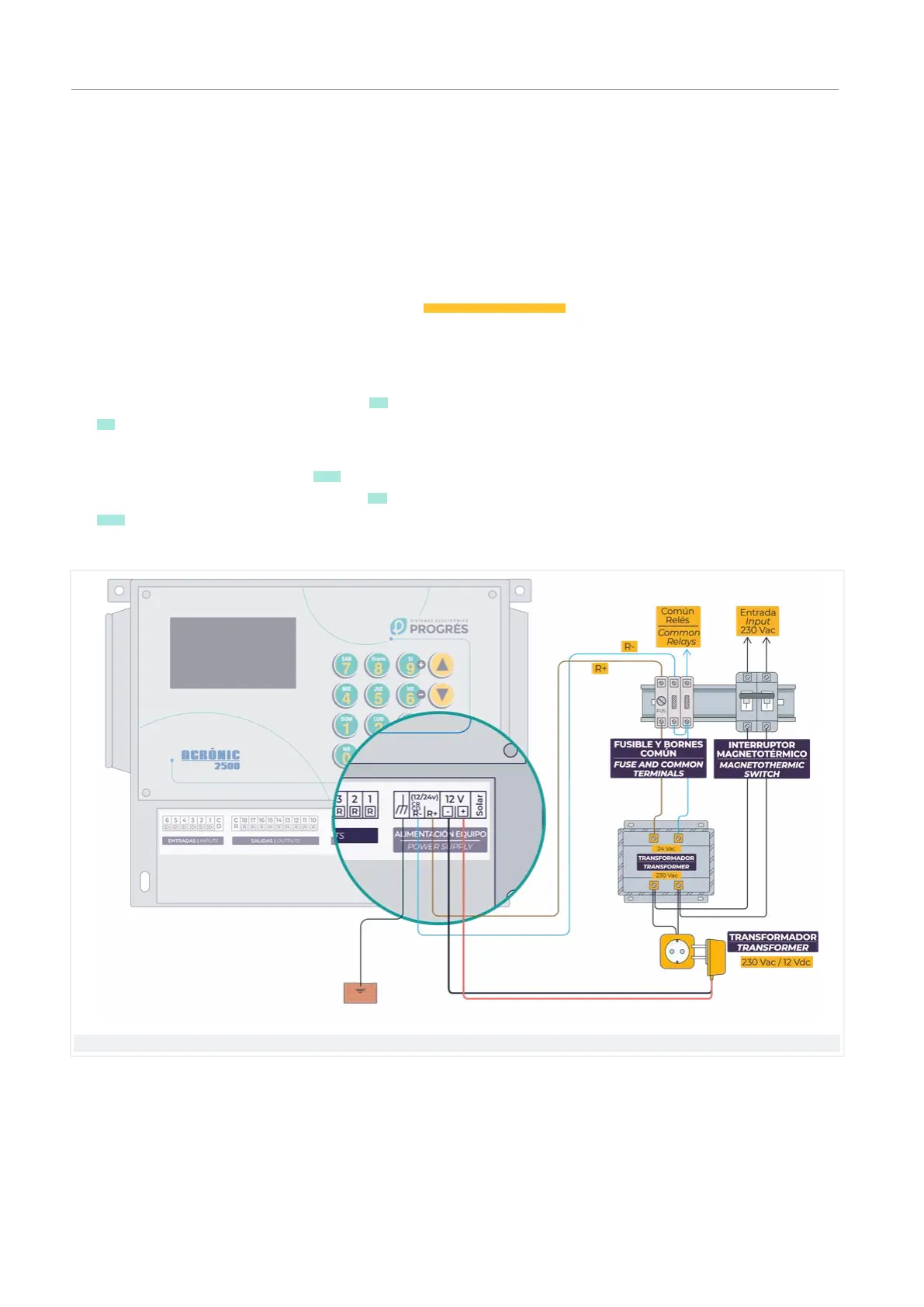

24 Vac outputs (220 Vac network installation)
4.4. CONNECTING THE OUTPUTS
4.4.1 Relay output connection
All the outputs are operable at either 12 or 24 volt in al-
ternating or continuous current (do not supply voltage
higher than 30 volt).
To be operative at 24 Vac, an external transform-
er with a double-insulated 24 Vac output must be
installed pursuant to UNE EN61010 standards. There
is an accessory for a 230/24 Vac 50 VA transformer to
connect to the unit.
The power supply intake for the outputs is marked R+
and R- .
The solenoids on the solenoid valves, relays and
contactors are connected between the CR output
common and the corresponding output between R1
and R27 .
The outputs are isolated from the internal circuitry by
relays and protected by a varistor in each one.
The power supplied to the outputs and sensors is
protected by an auto-resettable thermal fuse. The
‘Consultation - Agrónic’ section indicates whether
there is voltage for the outputs or not. When there is
a short circuit in one of the outputs, the fuse will auto-
matically be tripped, limiting the output until the short
circuit has terminated.
