Assembly and connection manual | Agrónic 2500
Options | Option 2 analog inputs
5.3. OPTION 2 ANALOG INPUTS
Only for the Plus version. This option allows up to two
analog sensors to be connected in order to measure
dierent magnitudes (pressure, solar radiation, soil
moisture content, temperature, etc.). A record is made
of the sensors every 10 minutes that can be queried
from the VEGGA / Agrónic APP / Agrónic PC platforms.
It allows the sensors to make measurements, gener-
ating electrical current from 0/4 to 20 mA or voltages
between 0 and 20 volt..

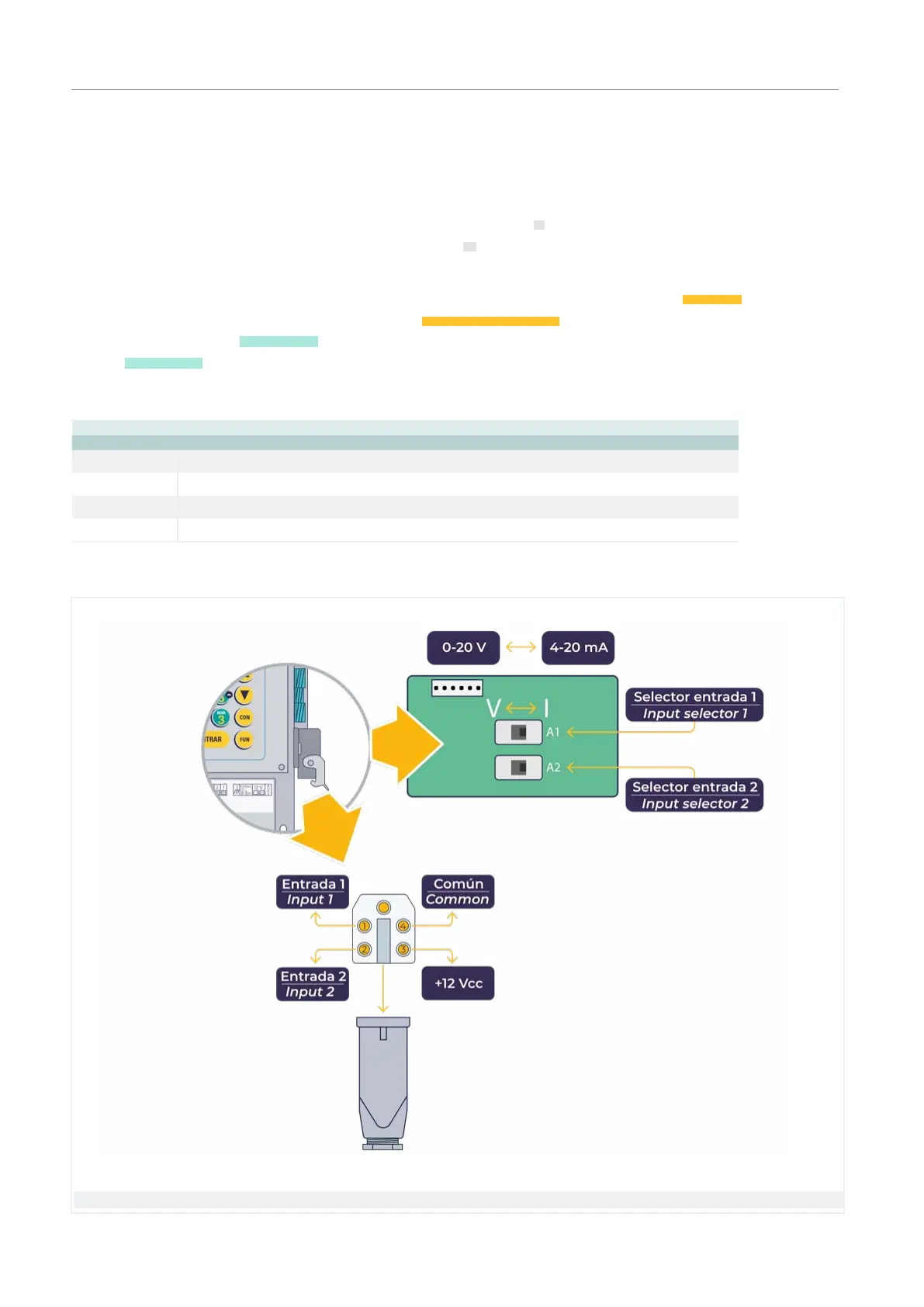

Connection of 2 analog sensors
The wiring in this option has one switch per sensor to
select the measurement using current or voltage. The
default is current, ‘ I ’ position, to select voltage, set it
to the ‘ V ’ position.
The wiring is housed behind the keypad. The location
to connect the sensors must be indicated in ‘Function -
4. Parameters - Installer’.
Terminal 1 Sensor cable A1
Terminal 2 Sensor cable A2
Terminal 3 It corresponds to the output cable for powering the sensors, 12 Vdc, 200 mA.
Terminal 4 Common for the sensor inputs and common for the power supply output (0 V).
Function
Connection of 2 Agrónic 2500 analog inputs
