Assembly and connection manual | Agrónic 2500
Connections | Connecting the outputs
When there are electrical units in the installation
(injectors, mixers, pumps, etc.) that must be activated
by Agrónic, a ‘latch relay’ can be used. This unit
converts the Agrónic latch output into an electrical
contact.
Like latch valves, there are two types: 2-wire and 3-wire.
Depending on how Agrónic is configured, it must make
one connection or another. Supports trigger voltage of
12 and 22 Vdc.

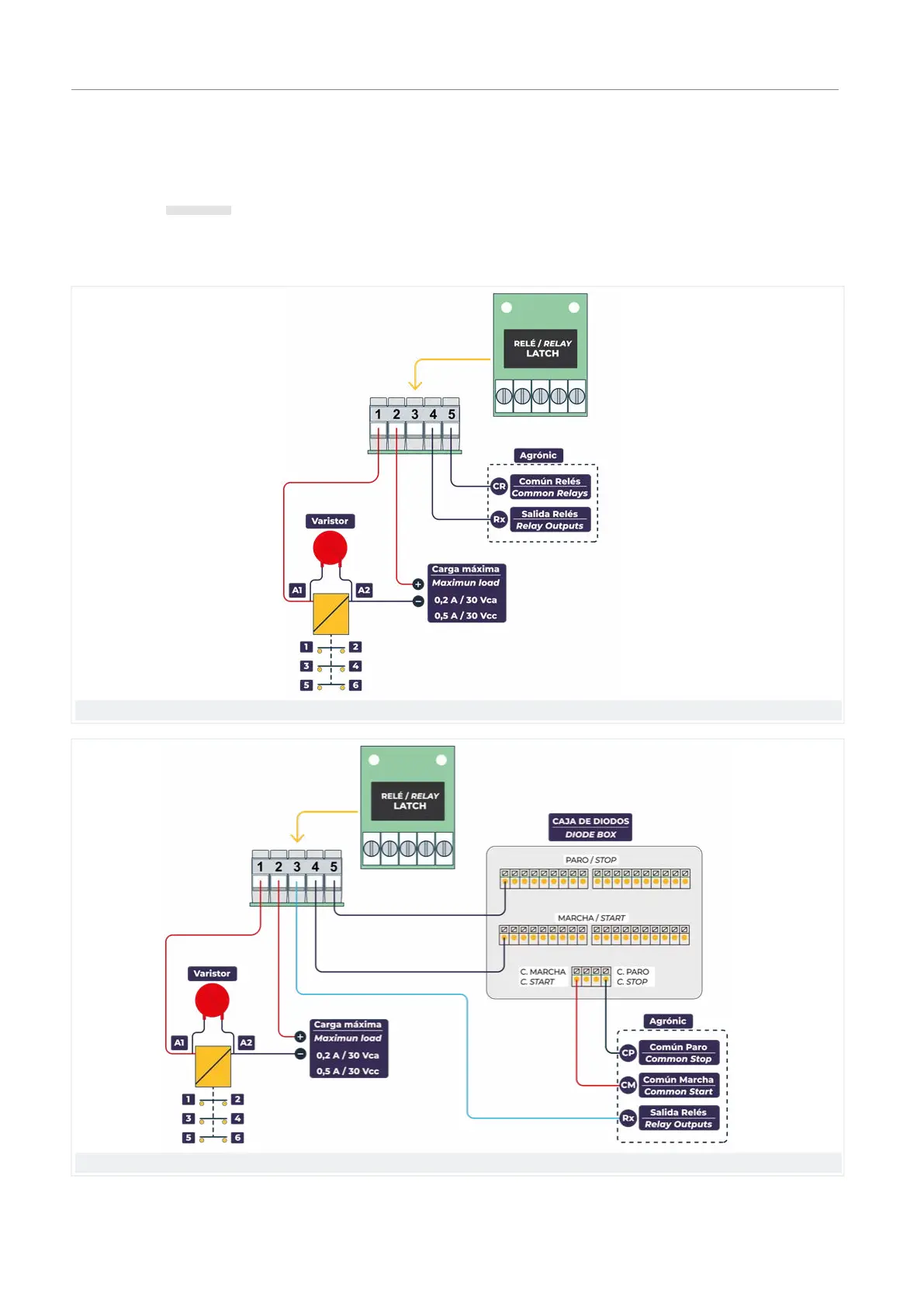

2-wire latch relay connection
3-wire latch relay connection
4.4.3 Latch relay connection
